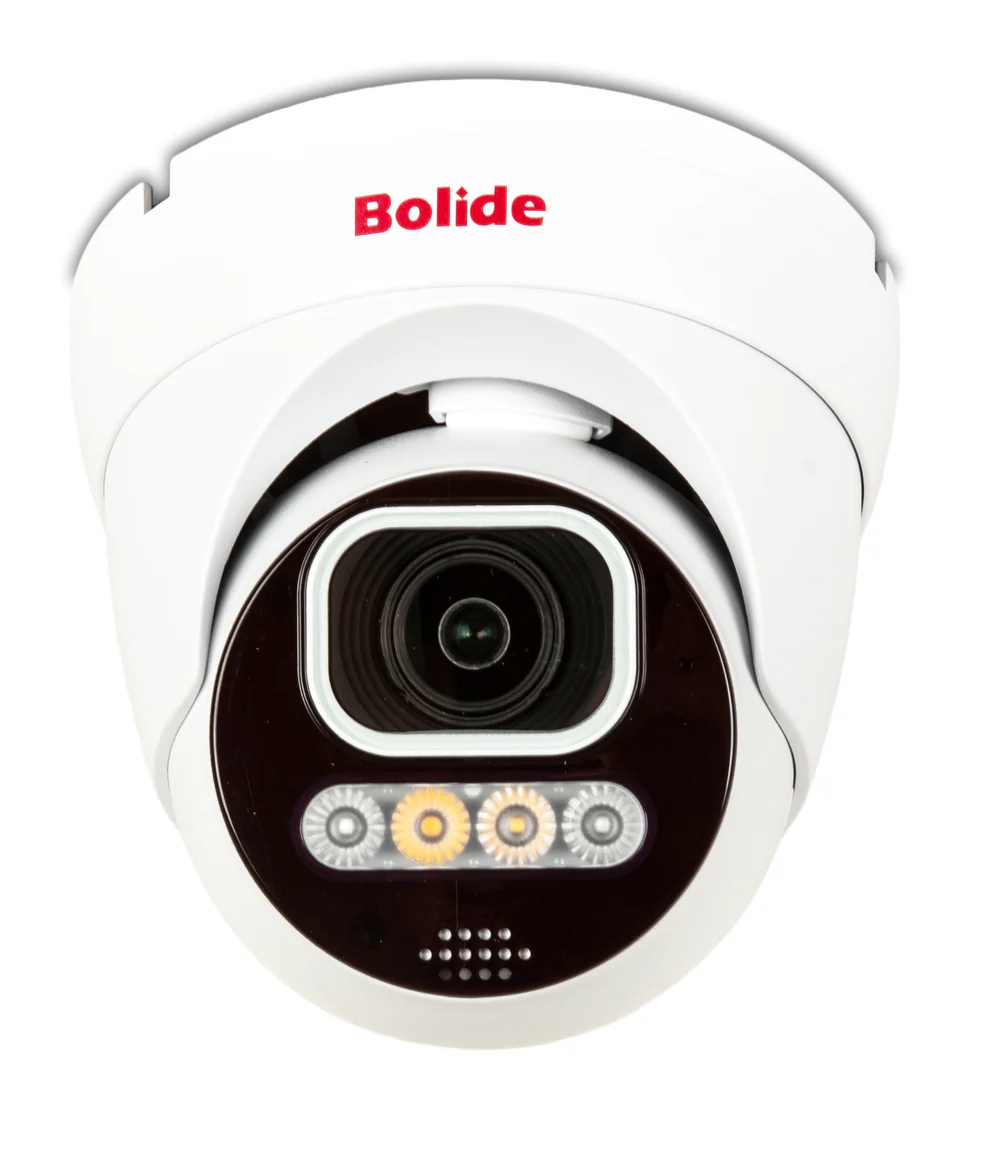

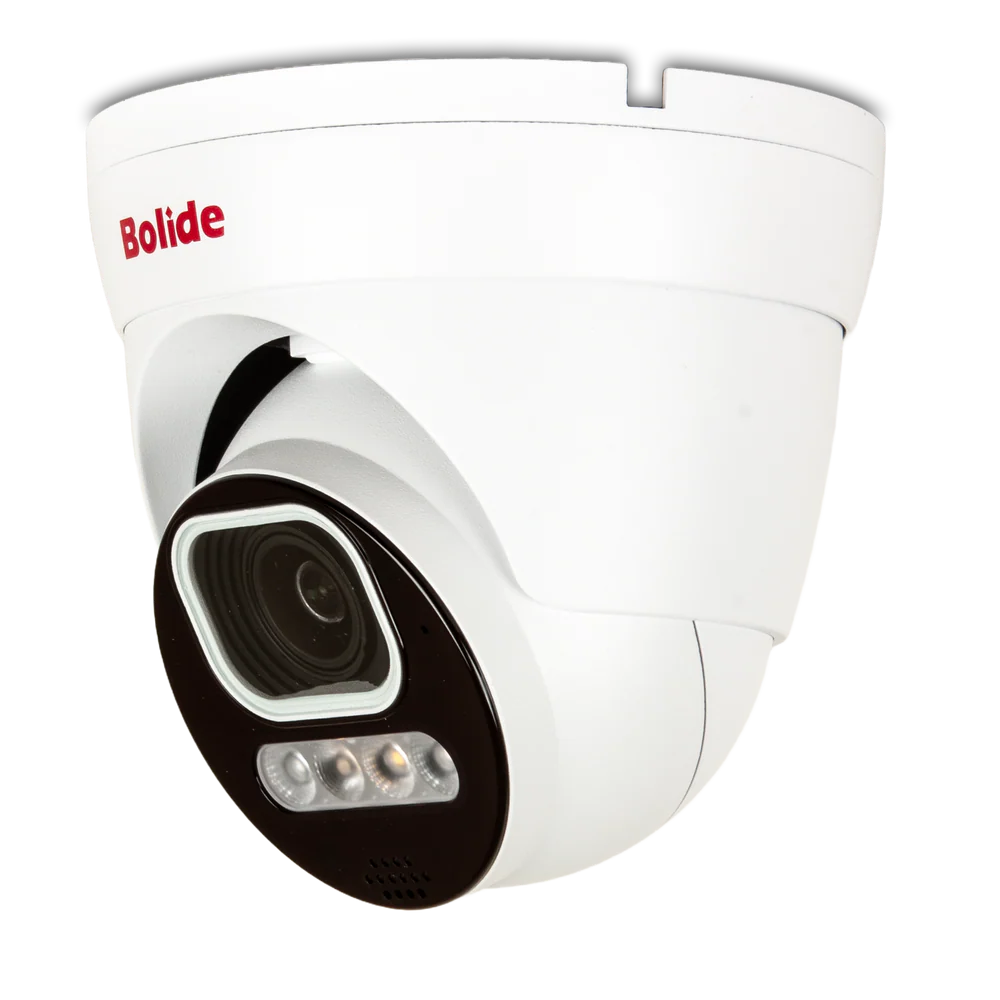

BOLIDE - BN8029LL/NDAA - H.265 4MP 3-8mm Motorized Varifocal Lens IP67 Extreme Low Light Camera, Full Color Mode, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slot Up to 256GB, POE, 12VDC, , iPac AI Enabled with Facial Recognition System, NDAA
Part number:
Price:
• 4MP Resolution
• Full Color In Extreme Low Light
• Warmlights for Full Color At Night
• Red and Blue Active Deterrent Lights
• 3-8mm Motorized Varifocal Lens
• Two-Way Audio - Built-in Mic and Speaker
• Micro SD Slot – EDGE Recording
• ONVIF Compliant
| SPECIFICATIONS | |
|---|---|
| Image Sensor | 1 / 1.8” Progressive Scan CMOS |
| Effective Pixels | 4MP 2688 (H) x 1520 (V) |
| Video Compression | H.265 / H.264 |
| Min. Illumination | Color 0.0005lux @ F1.0 (AGC ON); B/W 0 lux @ IR ON |
| Lens | |
| Lens | 3-8mm Motorized Varifocal Lens |
| F No. | F No. 1.0-F1.2 |
| Field of View | Horizontal:112°(W) -56°(T), Vertical: 54°(W) -32°(T), Diagonal: 131°(W) -65°(T) |
| Min. Object Distance | W/T 9.84 Ft |
| Lighting | |
| IR LED | N/A |
| Warmlight | 2 |
| Red Blue Light | 2 (1 Red and 1 Blue) |
| IR Viewable Length | N/A |
| Warmlight Length | Up to 98 Ft |
| Type of Complementary Light | Default Warm Light |
| Video Processing | |
| Backlight Compensation | Off / On (8 Levels) |
| Motion Detection | Off / On (8 Levels) |
| WDR | WDR |
| Digital Noise Reduction | 3D DNR |
| Image Setting | Full Color Mode |
| White Balance | Auto, Manual |
| Shutter Speed | 1/5 ~ 1/20000s |
| Storage & Audio | |
| EDGE Recording | Micro SD Slot Up to 1TB |
| Alarm | 1 Input, 1 Output |
| Audio | Two Way, Built-in Mic and Speaker |
| Hardware Reset | Yes |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| IP | IPv6 |
| Protocol | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Resolution | Main Stream 4MP (2592x1520) 3MP (2304x1296) 1080P(1920x1080) Substream 1080P(1920x1080) 720P(1280x720) VGA (640x480) Mobile Stream VGA(640x480), QVGA(320x240) |
| Bit Rate | 256Kbps~8Mbps |
| Security | IP Address Filter; Complicated Password; Authenticated Username and Password |
| Streaming | Unicast / Multicast |
| ONVIF | Profile S / G / T / M |
| Environmental | |
| Operating Conditions | -40~+140°F/Less Than ≤ 95% RH |
| Weather Rating | IP67 |
| Power | |
| Power Supply | DC 12V / POE (IEEE802.3af) |
| Power Consumption | DC12V: Max 5.3W, POE (48V): Max 6.96W |
| Physical | |
| Dimensions | 5.5 in x 5.5 in x 5 in |
| Net Weight | 1.95 lbs |
Name
Description
Size
Downloads
File
Datasheet_BN8029LL_NDAA.pdf
0.6mb

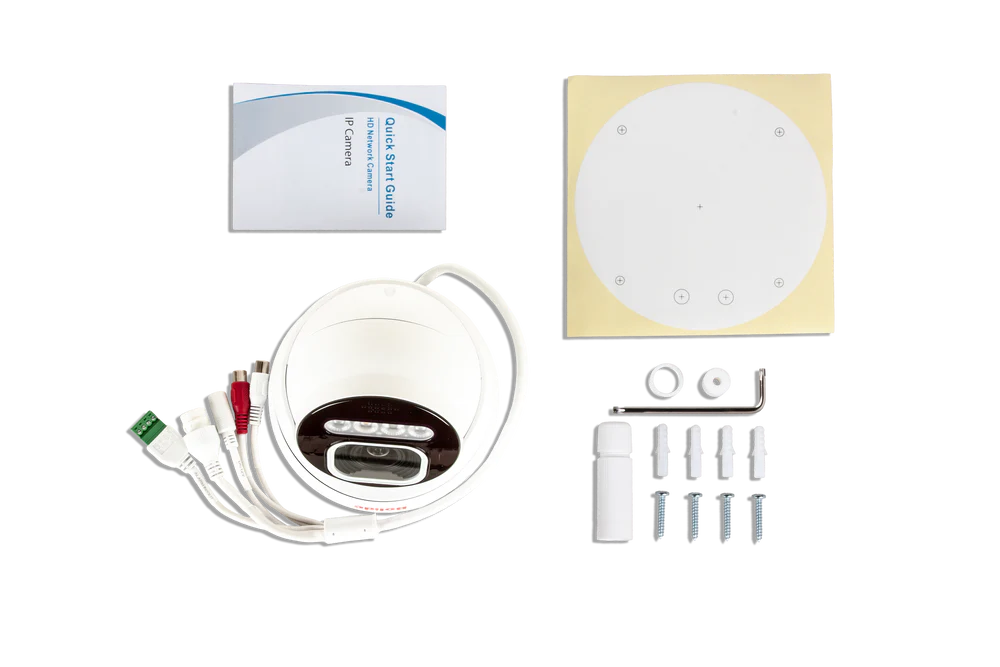

accessories
