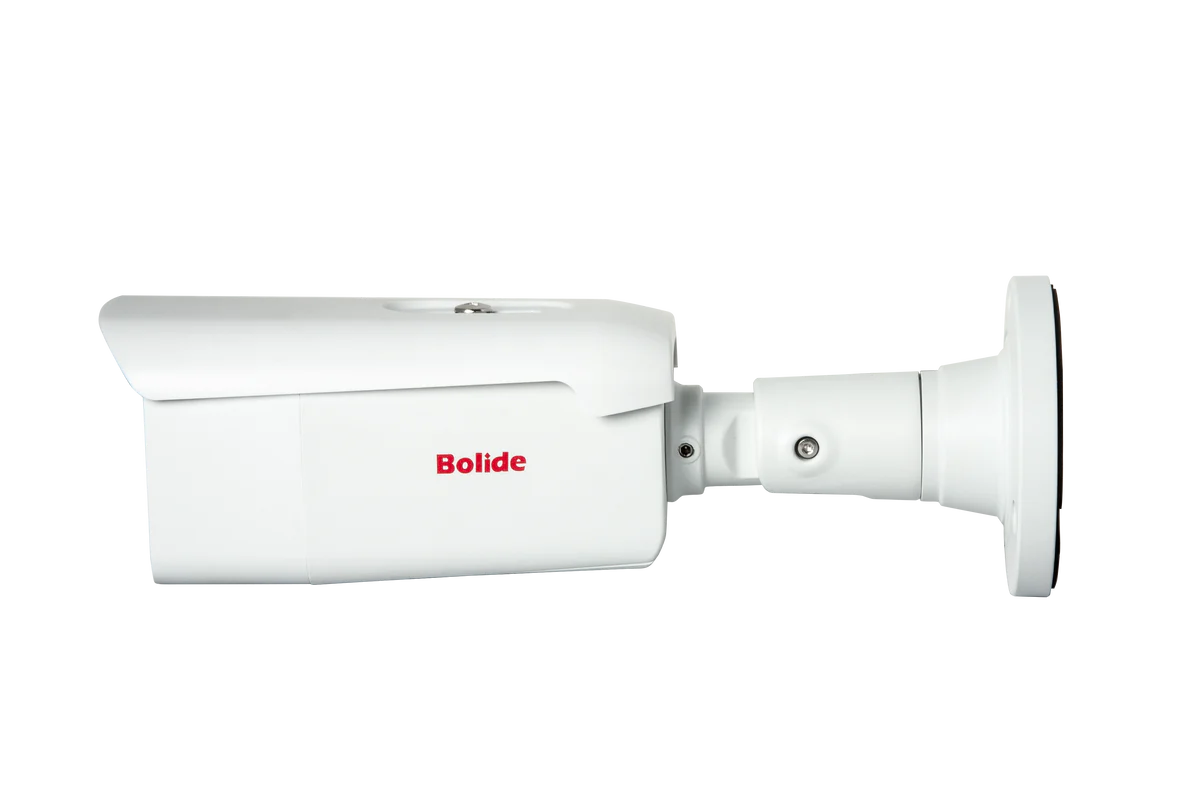

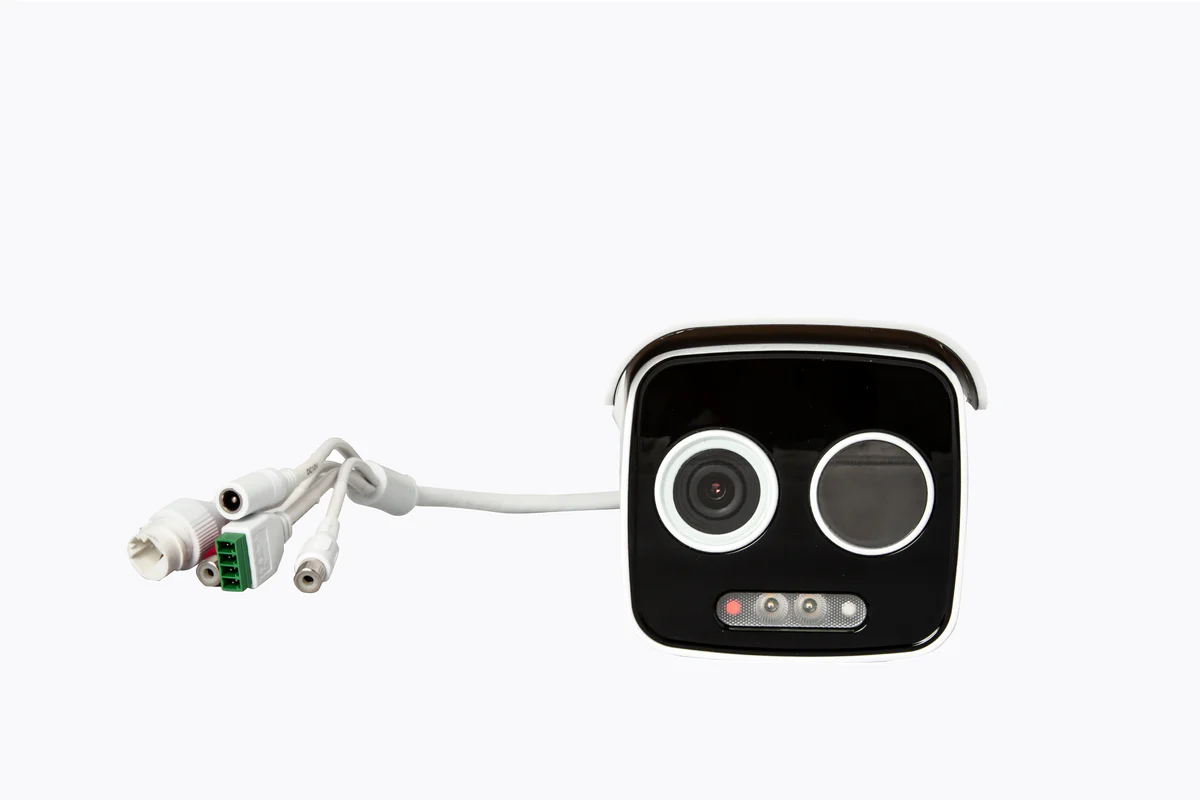

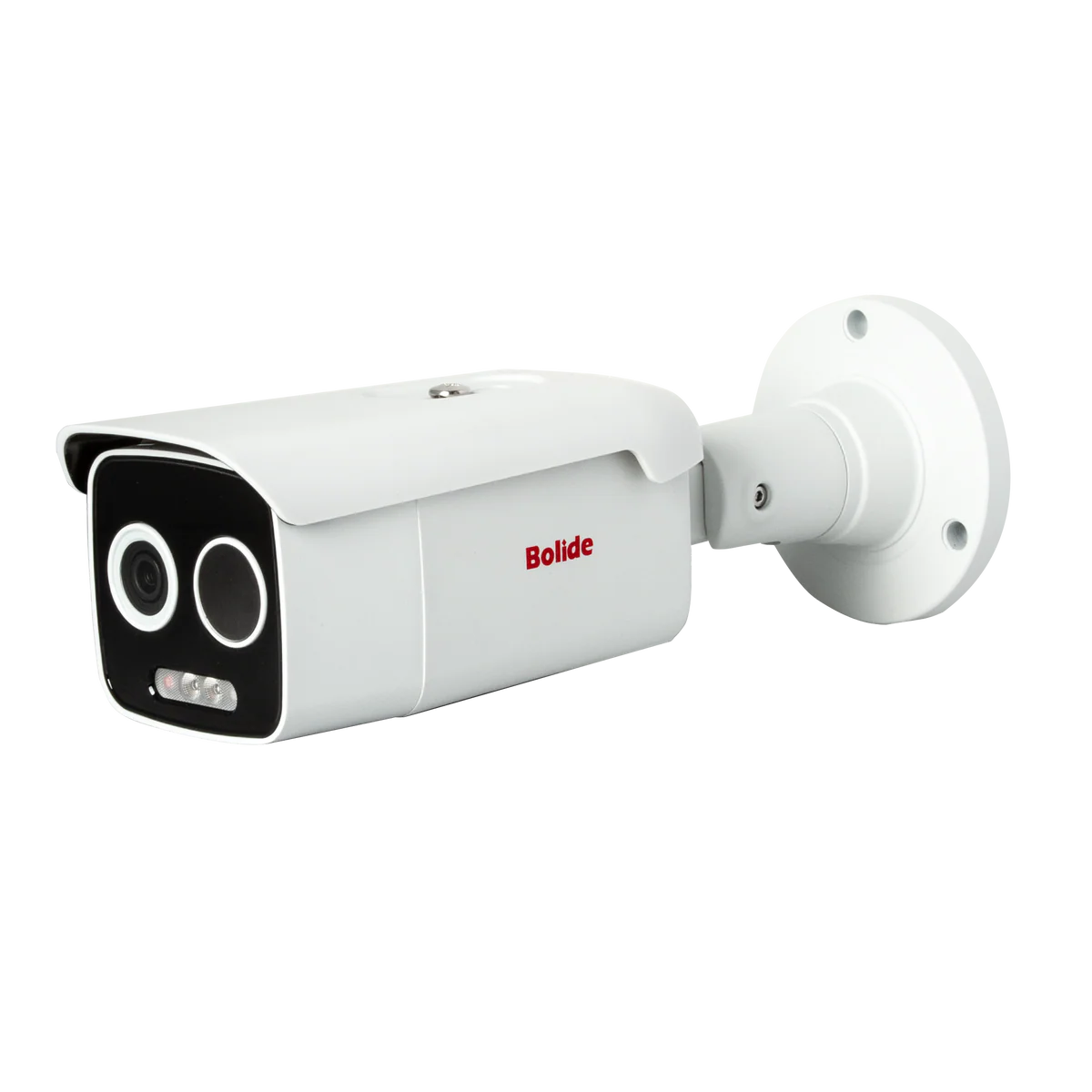

BN8035TH/NDAA 5MP Thermal and Optical Bi Spectrum Bullet Camera
Part number:
Price:
• Thermal & Optical Bi-Spectrum Video with One IP
• Vanadium Oxide Uncooled Focal Plane Detector
• Thermal: 256x192 Resolution, 12 μm ≤ 40mK @ 25°C F1.0
• Optical: 2592 x 1944 (5MP)
• Supports Reliable Fire Detection and Fire Shield Area
• Supports Various AI Functions at Thermal and Optical Both Streams
• Supports Dual Image Fusion
• Temperature Exception Alarm
• Temperature Range: -20°C ~ 150°C
• Supports Audio and Light Alarm with Built-in Red and Blue Flashing Lights
| Image Sensor | |
|---|---|
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effective pixels | 256x192 |
| Pixel size | 12µm |
| Thermal Sensitivity (NETD) | ≤40pmK @ 25°C F1.0, 25Hz |
| Response Waveband | 8-14µm |
| Heat Detection Distance | 66 Feet (20 Meters) |
| Thermal Lens | |
| Lens Type | Fixed |
| Focus Control | Manual |
| Focal length | 3.2mm |
| F No. | F 1.0 |
| Viewing angle | H: 56° V: 42° |
| Visible Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Effective resolution | 2592 x 1944 |
| Shutter speed | 1/5 ~ 1/100,000s |
| WDR | Digital WDR |
| Min. Illumination | Color: 0.003Lux @(F1.2, AGC ON) B/W: 0Lux @(F1.2, AGC ON) |
| S/N Ratio | > 55dB |
| Focal length | 3.6mm |
| Angle of View | H: 81° V: 57° D: 108° |
| Lens Type | Fixed |
| Video and Audio | |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: Thermal: 1280 x 720, 640 x 480 50/60Hz @ 25FPS Visible: 2592×1944, 2592×1520, 2304x1296, 1920x1080, 1280x720 50/60Hz @ 25FPS Sub Stream: Thermal: CIF @ 25/30fps Visible: D1/VGA/640×360/CIF/QVGA @ 25/30fps |
| Bit Rate control | CBR/VBR |
| Bit Rate | Thermal: 10Kbps~6Mbps Visible: main stream: 100Kbps~16Mbps Sub stream: 100Kbps ~ 6Mbps |
| Region of interest (ROI) | Off/On (8 Zones, Rectangles) |
| Digital zoom | 16x |
| Mirror | Support |
| Defog | Support |
| Motion Detection | Support |
| Privacy Masking | Off / On (4 Area, Rectangles) |
| DVE Image Enhance | Support |
| Audio compression | G.711, AMR, RAW_PCM (Optional) |
| Intelligence | |
| Thermal | Intrusion, Region Entrance, Region Exiting, Line Crossing, Pedestrian and Vehicle, Temperature Exception Alarm |
| Optical | Intrusion, Region Entrance, Region Exiting, Line Crossing, Pedestrian and Vehicle, Object Detection, Cross Counting, Crowd Density, Queue Length, Heat Map, Rare Sound, Face Detection |
| Temperature Detection | |
| Detection Mode | Fire Detection |
| Temperature Accuracy | ±8°C (±14.4°F) |
| Alarm detection | Temperature overshoot, Temperature difference |
| Accuracy | ±2% |
| Response time | ≤30ms |
| Temperature Measurement Range | -20°C ~ 150°C (-4°F ~ 302°F) |
| Temperature Measurement | Global, 12 Points, 12 Areas, 12 Lines |
| Sound-Light Alarm | Support white flashing and horn warning |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocols | IPv4 / IPv6, HTTP, RTSP / RTP / RTCP, TCP / UDP, DHCP, DNS, PPPOE, SMTP, SIP, 802.1x |
| Interoperability | ONVIF, CGI, SDK |
| Maximum number of connections | 10 users |
| Edge Storage | Local PC for instant recording 128GB Micro SD card |
| Web Languages | English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian |
| Interface | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 |
| Audio interface | 1ch Audio In/1ch Audio Out Built-in Mic and Speaker |
| Alarm Interface | 1ch Alarm In/1ch Alarm Out |
| RS-485 | Support |
| Reset Button | Support |
| General | |
| Power Supply | 12VDC/24VDC/PoE (IEEE 802.3af) |
| Consumption | Max 10.4W |
| Operating Temperatures | -40°C~60°C (-40°F~140°F) |
| Storage Humidity | 0~90% RH |
| Certifications | CE/FCC |
| Degree of protection | IP66 |
| Material | Metal |
| Dimensions | 108mm x 314.6mm (4.25"x 12.39") |
| Net Weight | 1.25Kg (2.76lb) |
