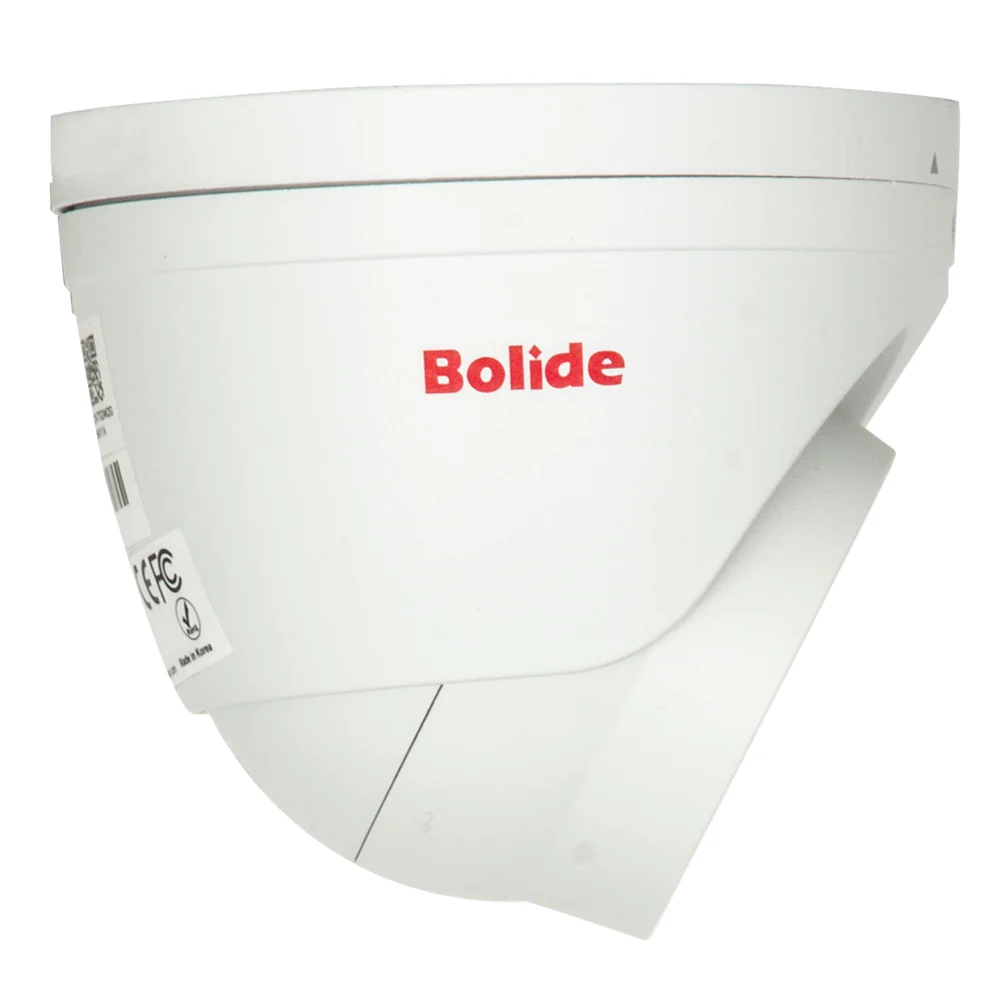

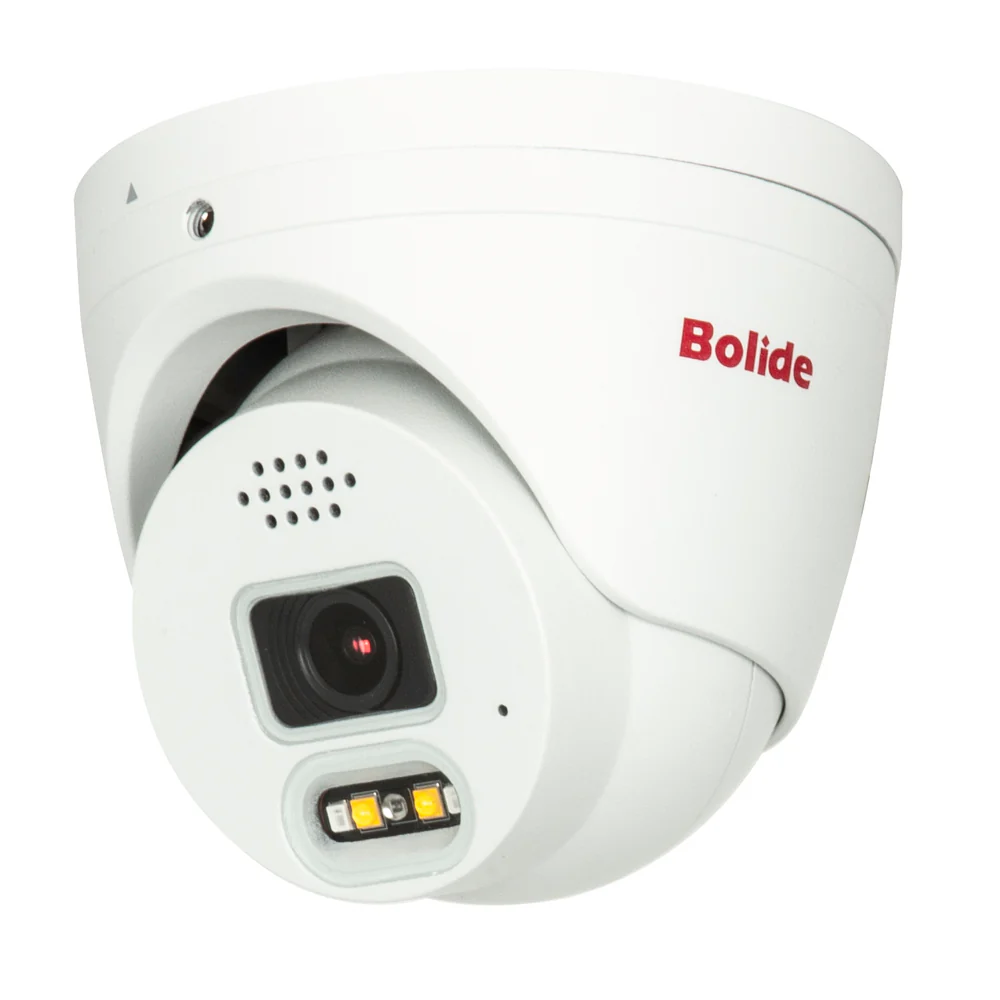

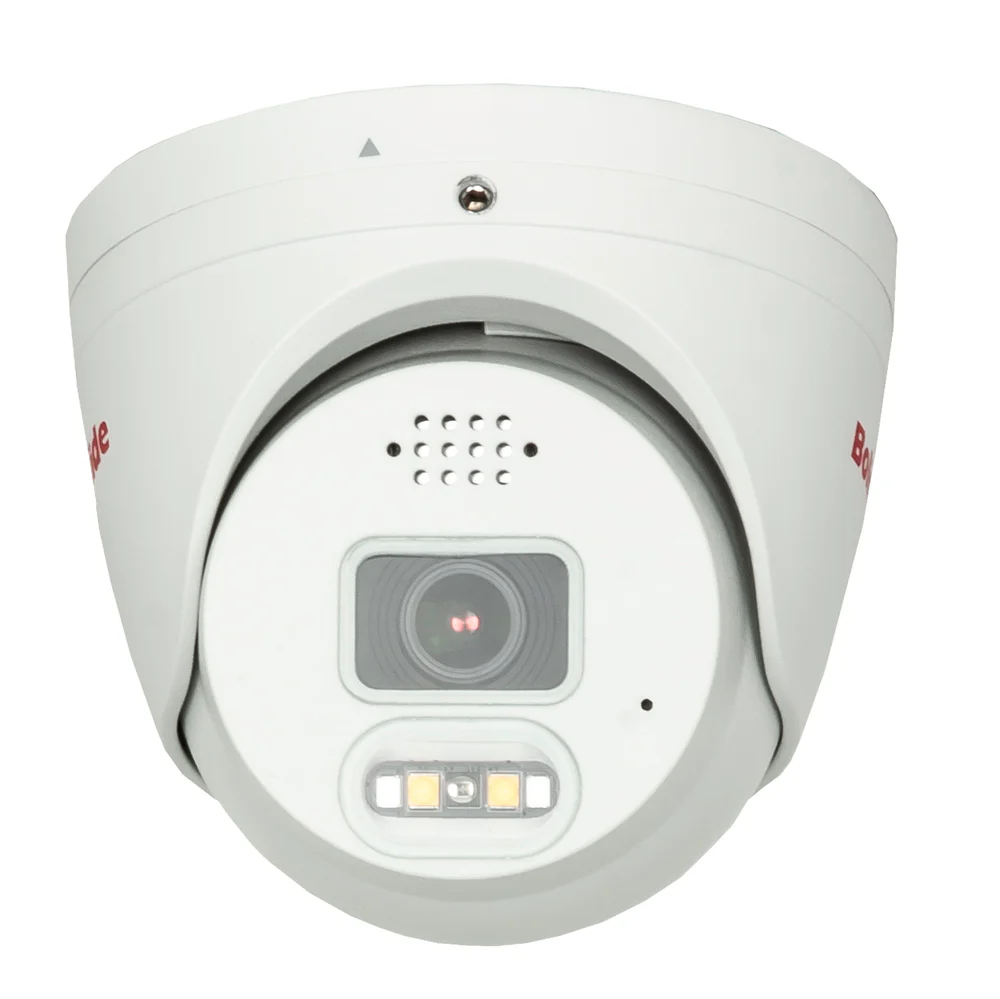

BOLIDE - BN9019AD/TAA - TAA Compliant H.265 8MP 2.8mm Fixed Lens IP67 Full Color Active Deterrent Turret Camera, Color At Night Warmlight Up to 65 Feet, Two-Way Audio ( Built-in Speaker and Mic ), MicroSD Slot Up to 256GB, Active Deterrent Red and Bl
Part number:
Price:
• 8MP Resolution
• Red and Blue Active Deterrent Lights
• Full Color At Night with Warmlights
• 2.8mm Wide Angle Fixed Lens
• Two-Way Audio - Built-in Mic and Speaker
• Built-in POE
• Micro SD Slot – EDGE Recording
• ONVIF Compliant
• P2P Support
| Specifications | |
|---|---|
| Image Sensor | 1 / 2.8” Progressive Scan CMOS |
| Effective Pixel | 8MP 3840(H) x 2160(V) |
| Min. Illumination | 0.007lux@F1.0(AGC ON), 0Lux with IR |
| Resolution | Main Stream 8MP (3840x2160), 5MP (2880x1620), 4MP(2592x1520), 1080P(1920x1080), 960P(1280x960P), 720P(1280x720P) Substream VGA(640x480), QVGA(320x240) |
| Lighting | |
| Red Blue Light | 2 (1 Red & 1 Blue) |
| IR Led | 1 |
| Warmlight | 2 |
| IR Viewable Length | Up to 82 Ft |
| Warmlight Length | Up to 65 FT |
| Audio/Video | |
| Custom Voice | Yes |
| Video Output | RJ-45 |
| Audio | Two-Way Audio, Built-in Mic |
| Speaker | Yes |
| Lens | |
| Lens/ Lens Mount | 2.8mm/F1.0 fixed lens |
| Viewing Angle | D: 126° H: 106° V: 56° |
| Power | |
| Power Source | DC12V / POE |
| Power Consumption | 2.7 - 4.2 W |
| Current Consumption | 350mA |
| Environmental | |
| Operating Temperature | -40°F ~ 104°F |
| Operating Humidity | Less than 95% RH (no condensation) |
| Dimension | 3.93" × 3.93" X 3.54" |
| Environment Rating | IP67 |
Name
Description
Size
Downloads
File
Datasheet_BN9019AD_TAA.pdf
0.6mb
