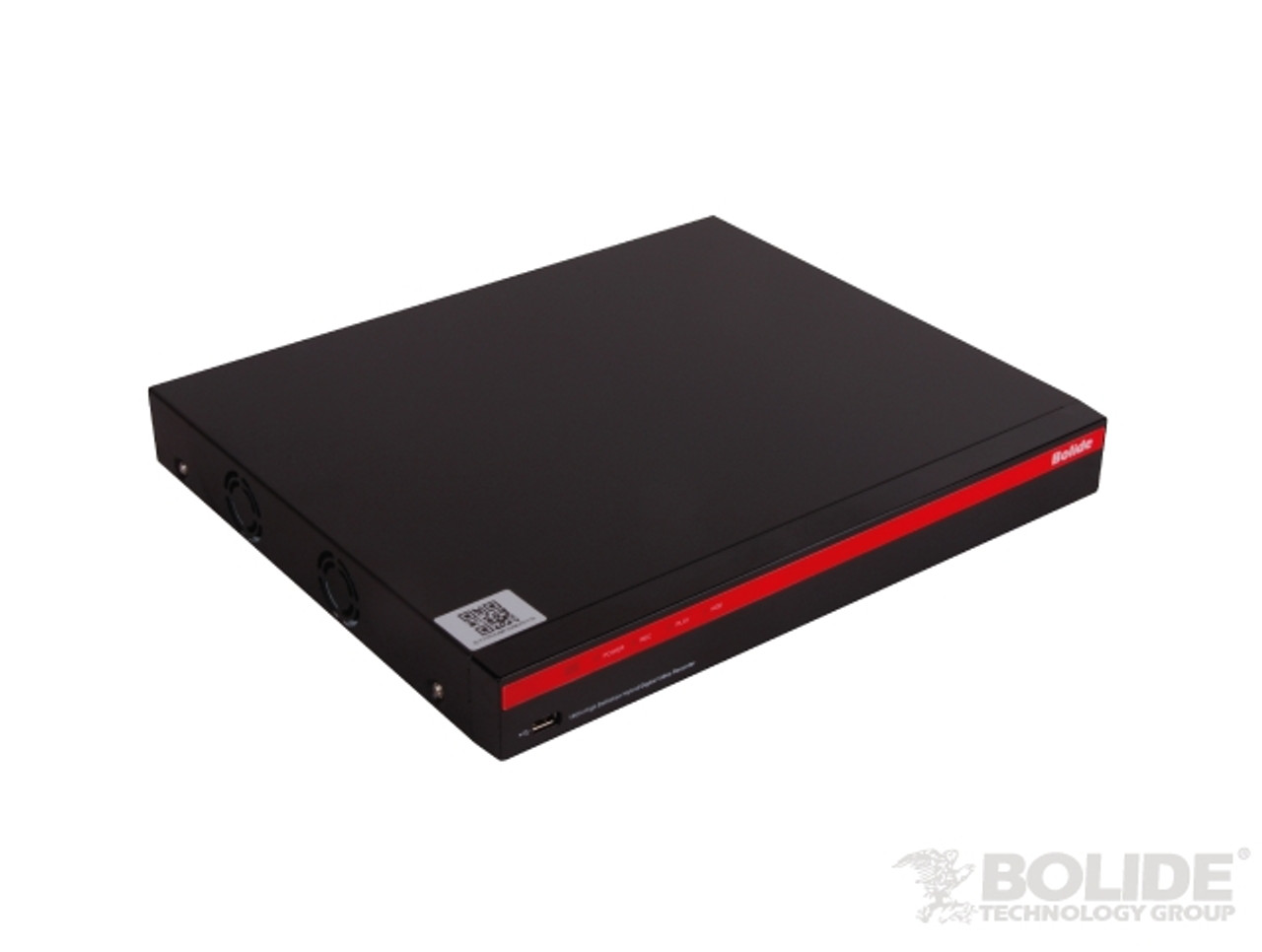

SVR9508HAI/NDAA 8-Channel H.265 5MP HD Over Coax / IP Hybrid DVR
Part number:
Price:
- 4K / 5MP Resolution
- NDAA Compliant
- Hybrid DVR - Additional IP Channels
- 1 HDD Bay Up to 12TB
- 1 HDMI, 1 VGA Outputs
- Built-in Video Analytics
- Bolide Quick Connect Enabled
- iPac AI Enabled
| Specifications | |
|---|---|
| Display Resolution | VGA: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 HDMI: 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080, 2560x1440, 3840x2160 |
| Recording | |
| Feature | Single/Quad/S.E.Q/ Record |
| Resolution | Analog 5MP/4MP/3MP/1080P/720P/960H IP 5MP/4MP/3MP/1080P/720P/960H |
| Speed | Analog: 8MP: 7FPS / Channel, 5MP:12FPS / Channel, 4MP:15FPS / Channel, 1080P: PAL: 25FPS / Channel, NTSC: 30FPS / Channel IP: PAL: 25FPS / Channel, NTSC: 30FPS / Channel Sub-Stream PAL：704x576: 10FPS/Channel, NTSC：704x480:10FPS/Channel |
| Video | |
| Video Compression | H.265 / H.264 |
| Video System | NTSC / PAL |
| Operating System | Linux (embedded) |
| Analog video Input/Output | 8-Channel BNC / VGA & HDMI Output |
| IP Video Input | 4-Channels |
| Composite Video Input | Up to 12 Channels (Analog & IP) |
| Audio Input/Output | 4 Audio In / 1 Audio Out |
| Performance | |
| IP-Recording Bandwidth | Up to 72Mbps |
| Max. Output Bandwidth | 72Mbps |
| Recording Mode | Continuous / Manual / Motion Detection / Alarm / Video Analytics |
| Synchronous Playback | Up to 8 Channels |
| Network & Storage | |
| Network Type | LAN, DHCP |
| HDD Interface | 1 SATA HDD, up to 12TB |
| USB | 1 USB 2.0 (Front), 1 USB 3.0 (Rear) |
| Control & Connectivity | |
| PTZ Control | Control Over Coax, RS-485 |
| Mobile Surveillance | Bolide Quick Connect on iOS / Android |
| Physical | |
| Power Supply | DC12V / 2A |
| Dimension | 11.8" x 8.2" x 1.89" |
| Working Temperature | 32°F~+104°F |
| Working Humidity | 10%~90% |
