Dahua - DH-PFM920I-5EU-U - CAT5e UTP CM Cable with UL
Part number:
DH-PFM920I-5EU-U
Price:

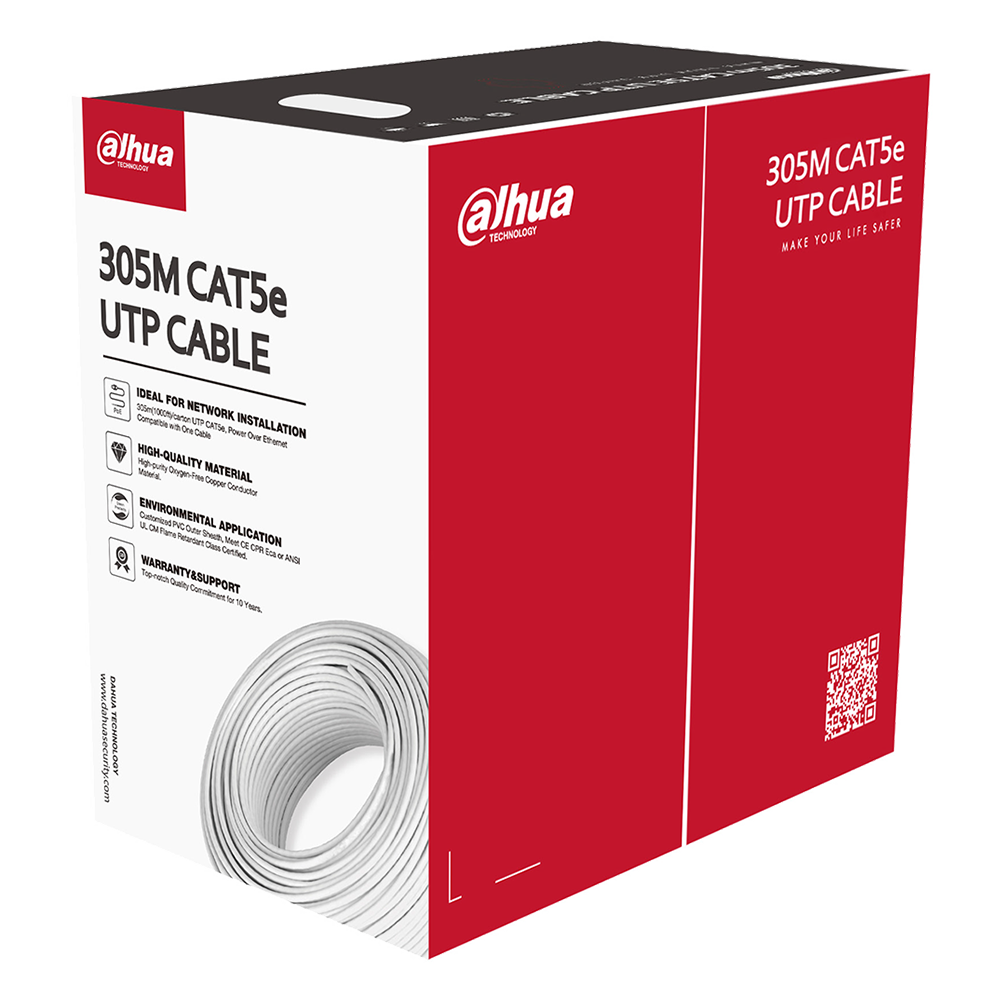

CAT5e UTP CM Cable with UL
Features:
- 305 m (1000 ft) CAT5e UTP Cable
- 99.97% Oxygen-free Copper
- Customized PVC Outer Sheath
- Certified to the UL 1685 Flame Resistance Standard
| Technical Specifications | |
| Certification | |
| Cable Standard | ANSI/TIA 568 C.2 |
| Flame Resistance | • UL 1685 Standard for Vertical-Tray Fire-Propagation and Smoke-Release Test for Electrical and Optical-Fiber Cables • CM (UL certification) Pass a standardized flammability test certified by UL |
| Mechanical | |
| Tensile Strength | Sheath: ≥ 13.5 MPa Insulation: ≥ 16 MPa |
| Elongation at Break | Sheath: ≥ 150% Insulation: ≥ 300% |
| Installation Bending Radius | > 8 times of outer cable diameter |
| Conductor Elongation at Break | ≥ 10% |
| Environmental | |
| Shrinkage of Insulation | ≤ 5% |
| Color Migration Resistance of Insulation | No Migration |
| Sheath Tensile Strength and Elongation at Break after Aging | ≥ 12.5 MPa, ≥ 100% |
| Low Temperature Bending Test | No cracking evident |
| Heat Shock Test | No cracking evident |
| Operating Temperature | –20°C to +60°C (–4°F to 140°F) |
| Installation Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature and Humidity | –10°C to +40°C (14°F to 104°F), < 60% (RH) |
| Packaging | |
| Length | 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft) |
| Dimensions (L x W x H) | 342.0 mm x 342.0 mm x 220.0 mm (13.47 in. x 13.47 in. x 8.67 in.) |
| Packaging Method | 305.0 m (1000.66 ft) carton, one protection carton with 2 cartons inside |
| Net Weight | ≥ 8.9 kg (19.62 lb) |
| Gross Weight | ≥ 9.7 kg (21.38 lb) |
| Conductor | |
| Material | Oxygen-free Copper (99.97% purity) |
| Diameter | 0.50 mm ± 0.01 mm |
| Gauge | 24 AWG |
| Insulation | |
| Material | HDPE |
| Minimum Average Thickness | 0.18 mm |
| Diameter | 0.92 mm ± 0.06 mm |
| Color (4 pairs) | Blue, White/Blue, Orange, White/Orange, Green, White/Green, Brown, White/Brown |
| Rip Cord | |
| Material | Polyester |
| Specification | 500D |
| Sheath | |
| Material | PVC |
| Minimum Average Thickness | 0.50 mm |
| Diameter | 5.40 mm ± 0.30 mm |
| Color | White |
| Electrical | |
| Maximum DC Resistance, Single Conductor | 9.38 Ω/100 m |
| Minimum Insulation Resistance | 5000 MΩ·km |
| Maximum Mutual Capacitance | 5.6 nF/100 m |
| Maximum DC Resistance Unbalance | 2% (pair intra), 4% (pairs inter) |
| Dielectric Strength | No breakdown with 1 KV DC for 1 m |
| Transmission | |
| Characteristic Impedance | 100 ± 15 Ω |
| Near End Cross Talk | ≥ 35.30 dB/100 m at 100 MHz |
| Maximum Attenuation | 22 dB/100 m at 100 MHz |
| Return Loss | ≥ 20.1 dB/100 m at 100 MHz |
