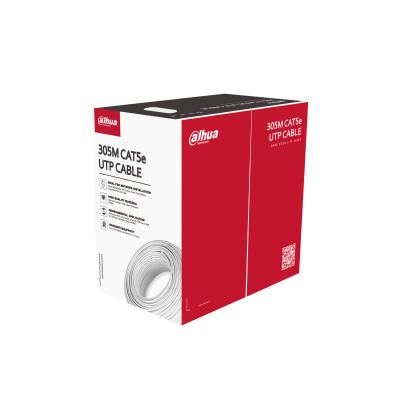

Dahua - DH-PFM920I-5EU-ER - CAT5e UTP CMR Cable
Part number:
DH-PFM920I-5EU-ER
Price:

CAT5e UTP CMR Cable



Features:

  • 305 m (1000 ft) CAT5e UTP Cable
  • 24 AWG Thickness (0.5mm Conductor Diameter)
  • 99.97% Oxygen-free Copper Conductor
  • Customized PVC Outer Sheath
  • CMR Flame-Retardant: ETL Certified
Specifications
Conductor
MaterialOxygen free copper (99.97% purity)
Diameter0.50 mm ± 0.01 mm
American Wire Gauge24AWG
Insulation
MaterialHDPE
Min. Average Thickness0.18 mm
Diameter0.90mm±0.1mm
Color (4 Pairs)Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Rip Cord
MaterialPolyester
Specification500D
Sheath
MaterialPVC
Min. Average Thickness0.5 mm
Diameter5.1 mm ± 0.3 mm
ColorWhite
Electrical
Max. DC Resistance of a Single Conductor9.38Ω/100 m
Min. Insulation Resistance5000MΩ·km
Max. DC Resistance Unbalance5% (pair intra)
Dielectric StrengthNo breakdown with 2.5KV DC for 2 seconds
Transmission
Characteristic Impedance100 ± 15Ω
Near End Cross Talk≥35.30 dB/100 m@100 MHz
Max. Attenuation22.0 dB/100 m@100 MHz
Return Loss≥20.1 dB/100 m@100 MHz
Mechanical
Tensile StrengthSheath≥13.8 MPa, insulation≥16.5 MPa
Elongation at BreakSheath≥100%, insulation≥300%
Installation Bending Radius>8 times of outer cable diameter
Conductor Elongation at Break≥10%
Environmental
Shrinkage of Insulation≤6%
Color Migration Resistance of InsulationNo migration
Sheath Tensile Strength and Elongation at Break after Aging≥11.73 MPa, ≥50%
Low Temperature Bending TestNo cracking after the test
Heat Shock TestNo cracking after the test
Operating Temperature–20°C to +60°C (–4°F to 140°F)
Installation Temperature0°C to +50°C (32°F to 122°F)
Storage Temperature and Humidity–10°C to +40°C (14°F to 104°F), <60% (RH)
Security
Vertical Fire Propagation TestComply with UL1685(without smoke measurements)
Packaging
Cable Length305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Inner Carton Dimensions364.0 mm × 364.0 mm × 216.0 mm (14.33" × 14.33" × 8.50") (L × W × H)
Packaging Method305.0 m (1000.66 ft) a carton, one carton with 2 inner cartons
Net Weight≥8.0 kg (17.64 lb)
Gross Weight≥9.0 kg (19.84 lb)
Compliance
Executive StandardsANSI/TIA 568-C.2-2009, UL444-2008
Certification
CertificationUL CM

Transmission Characteristics

(100 m at 20°C) (328.08 ft at 68°F)

Frequency (MHz)Phase delay ≤ nsIL ≤ dBNEXT ≥ dBPS NEXT ≥ dBACRF ≥ dB
15702.065.362.363.8
45524.156.353.351.8
85475.851.848.845.7
105456.550.347.343.8
165438.247.244.239.7
205429.345.842.837.8
2554110.444.341.335.8
31.2554011.742.939.933.9
62.553917.038.435.427.9
10053822.035.332.323.8
Frequency (MHz)PS ACRF ≥ dBRL ≥ dBDelay skew ≤ nsZc(Ω)
160.820.0n/sn/s
448.823.045.0100±15
842.724.5
1040.825.0
1636.725.0
2034.825.0
2532.824.3
31.2530.923.6
62.524.921.5
10020.820.1

Note:

Executive standard for the above parameters: ANSI/TIA-568-C.2-2009
