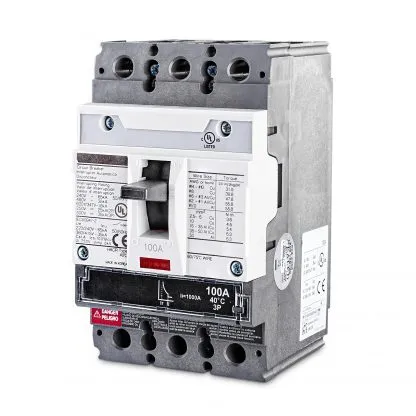

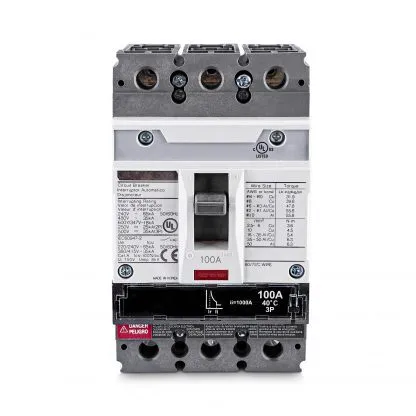

The CyberPower SMUCB100UAC 3-Phase Modular UPS Circuit Breaker Hardware provides convenience and safety with optional 20KVA UPS Input/Output. If the input side overcurrent protection device is in a different area of your facility, having the input circuit breaker at the UPS adds an extra disconnect point for easy bypass during repairs or maintenance. The output circuit breaker also provides protection if your load is connected directly to the UPS without an appropriate overcurrent protection device. Includes a One-Year Limited Warranty. For Cyberpower Smart App Online 3-Phase Modular UPS system SM020KAMFA.
Features:
Localized Protection
Provides the ability for input and output power breakers at the UPS when a utility breaker is not present, or addition protection is desired.
Added Equipment Safety
Input and output breakers deliver additional overcurrent protection for UPS and connected equipment.
One-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within one year of your 3-Phase Modular UPS installation. See warranty for details.
Physical
| Color | White/Gray |
| Form Factor | Modular |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
Dimensions
| Physical Dimensions – (WxHxD) (cm) | 7.62 x 12.95 x 8.38 (cm) |
| Physical Dimensions – (WxHxD) (in) | 3.00 x 5.10 x 3.30 (in) |
| Physical Dimensions – (WxHxD) (mm) | 76 x 130 x 84 (mm) |
| Physical Weight (kg) | 1.1 |
| Physical Weight (lb) | 2.43 |
Dimensions – Shipping
| Shipping – Weight (kg) | 1.09 |
| Shipping – Weight (lb) | 2.4 |
| Shipping Dimensions – (WxHxD) (cm) | 9.22 x 11.43 x 13.97 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 3.63 x 4.5 x 5.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 92.2 x 114.3 x 139.7 (mm) |
Environmental
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Elevation Note | At ≤1000m above sea level, de-rate power by 1% per 100m between 1000m and 3048m |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Operating Temperature Note | Battery life is halved for every 10°C increase above 20°C |
| Storage Battery Temperature Note | Optimum battery storage between -15°C and 20°C |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 158 °F (-20 – 70 °C) |
Certifications
| Environmental | RoHS Compliant |
| Safety | UL489/CSA C22.2/CE CCC IEC 60947-1 IEC 60947-2 EN 50581 |
Warranty
| Product Warranty | 1 Year Limited Warranty |
