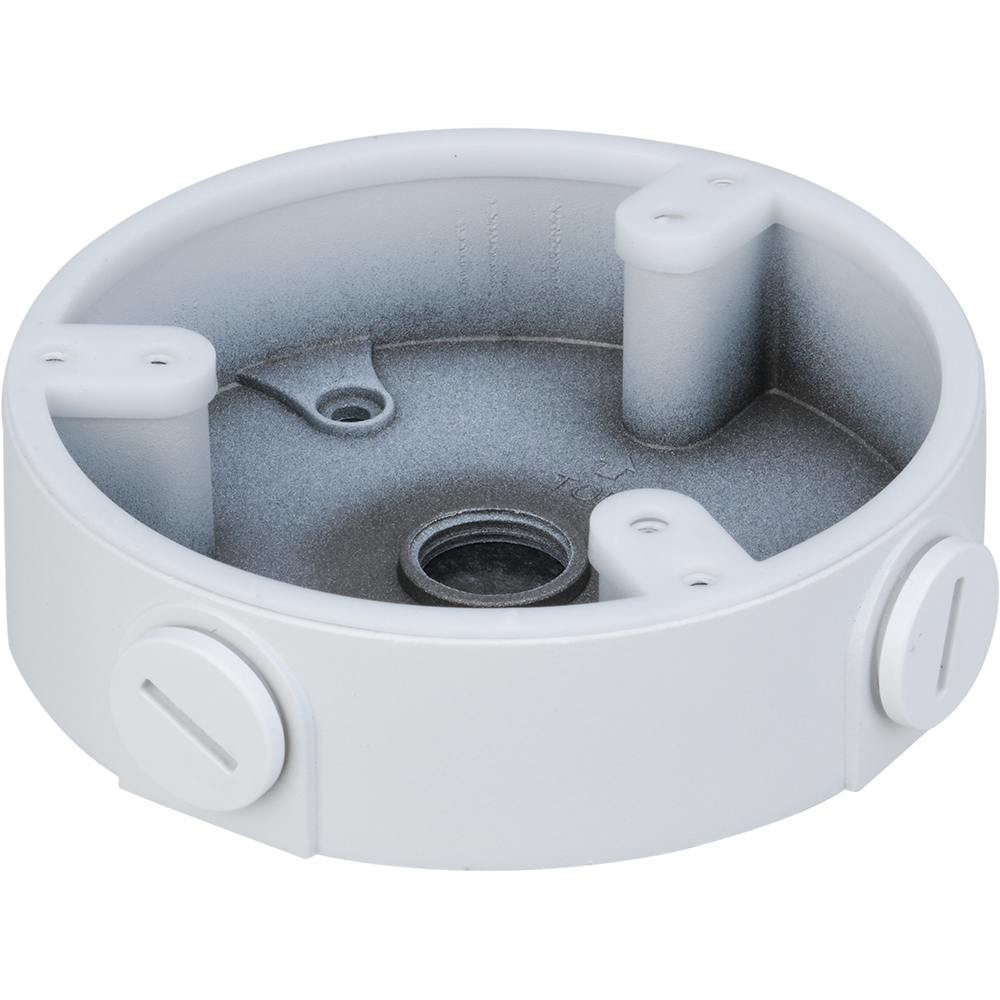

Dahua - DH-PFA137A - Corrosion-resistant Junction Box
Part number:
DH-PFA137A
Price:
Corrosion-resistant Junction Box
Features:
- Material: Aluminum Alloy
- Dimensions: 122.0 mm x 34.20 mm (4.80 in. x 1.35 in.)
- Inch Thread: M20 (G1/2 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity:0 to 90% RH
- Load Bearing: 1.0 kg (2.20 lb)
- Weight: 0.24 kg (0.53 lb)
- Color: White
| Technical Specifications | |
| Material | Aluminum Alloy |
| Dimensions (W x H x D) | 122.0 mm x 34.20 mm (4.80 in. x 1.35 in.) |
| Pipe Thread | M20 (G1/2 in.) |
| Weight | 0.24 kg (0.53 lb) |
| Load Bearing Capacity | 1.0 kg (2.20 lb) |
| Color | White |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
| Enclosure Rating | NEMA 4X |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
