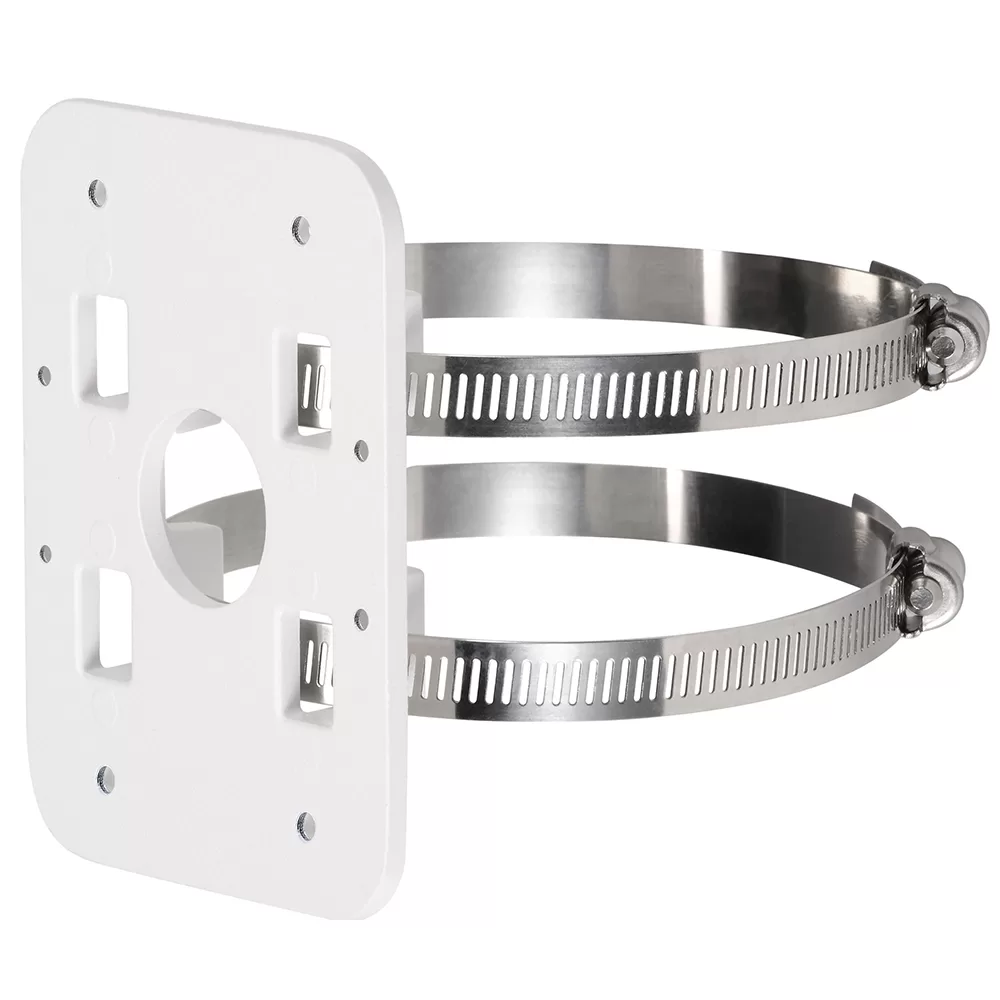

Dahua - DH-PFA152A-E - Corrosion-resistant Pole Mount Bracket
Part number:
DH-PFA152A-E
Price:
Corrosion-resistant Pole Mount Bracket
Features:
- Spray-coated with a Corrosion-resistant Material
- NEMA 4X Enclosure Rating
- Material: Aluminum Alloy and SUS304 Stainless Steel
- Dimensions: 125.60 mm x 114.0 mm x 20.0 mm (4.94 in. x 4.49 in. x 0.79 in.)
- Mast Diameter: 80.0 mm to 150.0 mm (3.15 in. x 5.91 in. )
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Operating Humidity: 0 to 90% RH
- Load Bearing: 3.0 kg (6.61 lb)
- Weight: 0.27 kg (0.60 in.)
| Technical Specifications | |
| Material | Aluminum Alloy and SUS304 |
| Color | White |
| Dimensions (W x H x D) | 125.60 mm x 114.0 mm x 20.0 mm (4.94 in. x 4.49 in. x 0.79 in.) |
| Compatible Mast Diameter | ø80.0 mm to ø150.0 mm (ø3.15 in. to ø5.91 in.) |
| Weight | 0.27 kg (0.60 lb) |
| Load Bearing Capacity | 3.0 kg (6.61 lb) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Operating Humidity | 0% to 90% RH |
| Enclosure Rating | NEMA 4X (200 hours) |
