Dahua - DH-PFB211WA - Corrosion-resistant Wall Mount Bracket
Part number:
DH-PFB211WA
Price:

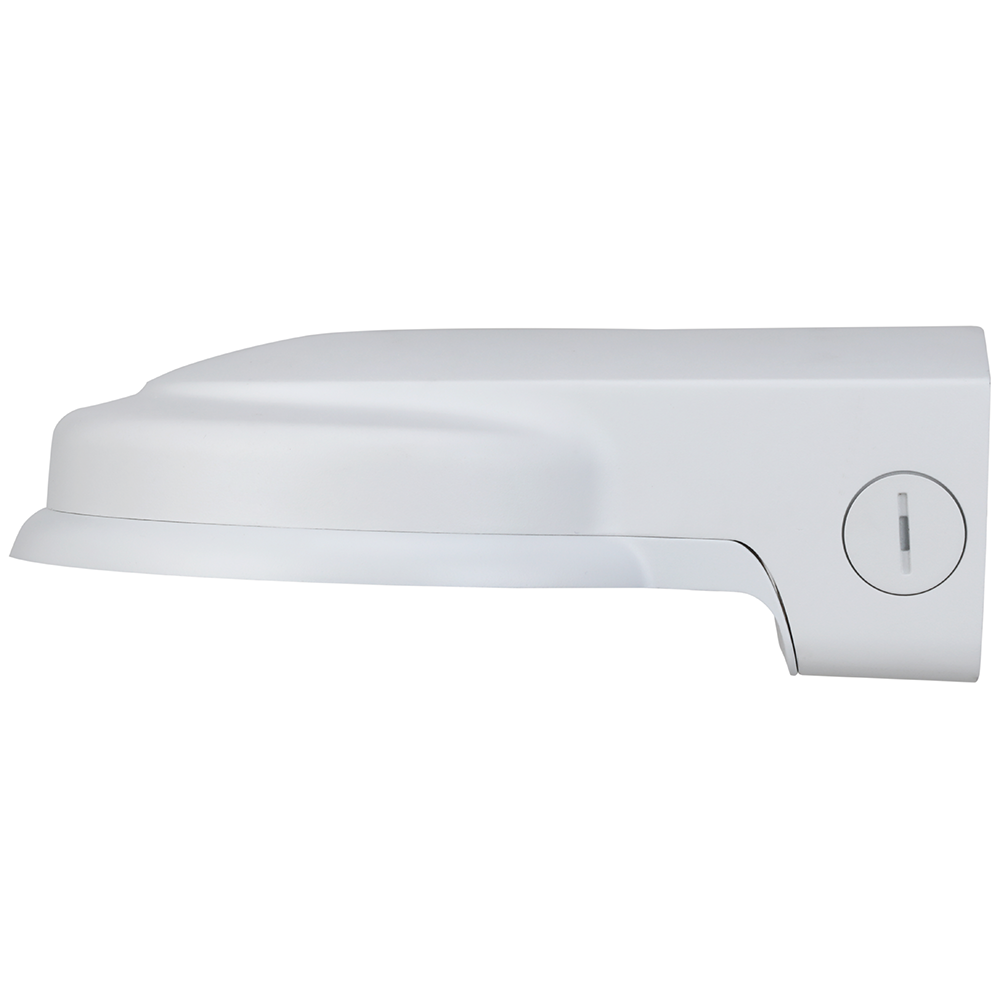

Corrosion-resistant Wall Mount Bracket
Features:
- Spray-coated with a Corrosion-resistant Material
- NEMA 4X Enclosure Rating
- Material: Aluminum Alloy
- Color: White
- Dimensions (W x H x D): 235.40 mm x 180.30 mm x 84.20 mm (9.27 in. x 7.09 in. x 3.31 in.)
- Load Bearing Capacity: 3.0 kg (6.61 lb)
- Operating Temperature: –40 °C to 60 °C (–40 °F to 140 °F)
- Operating Humidity: < 90% RH
- Weight: 0.97 kg (2.14 lb)
| Technical Specifications | |
| Material | Aluminum Alloy |
| Color | White |
| Dimensions (W x H x D) | 235.40 mm x 180.30 mm x 84.20 mm (9.27 in. x 7.09 in. x 3.31 in.) |
| Weight | 0.98 kg (2.16 lb) |
| Load Bearing Capacity | 3.0 kg (6.61 lb) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Operating Humidity | < 90% RH |
| Enclosure Rating | NEMA 4X (200 hours) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
