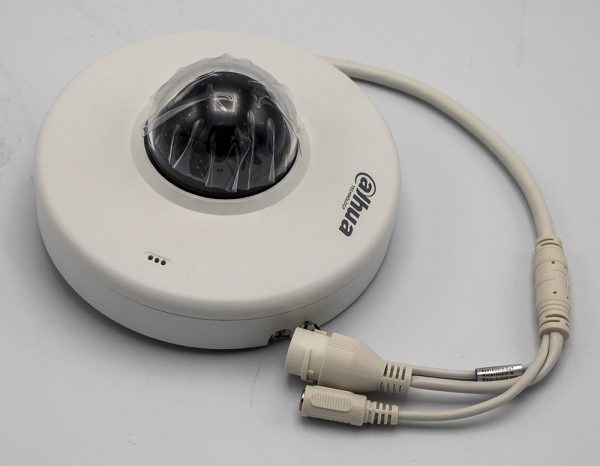

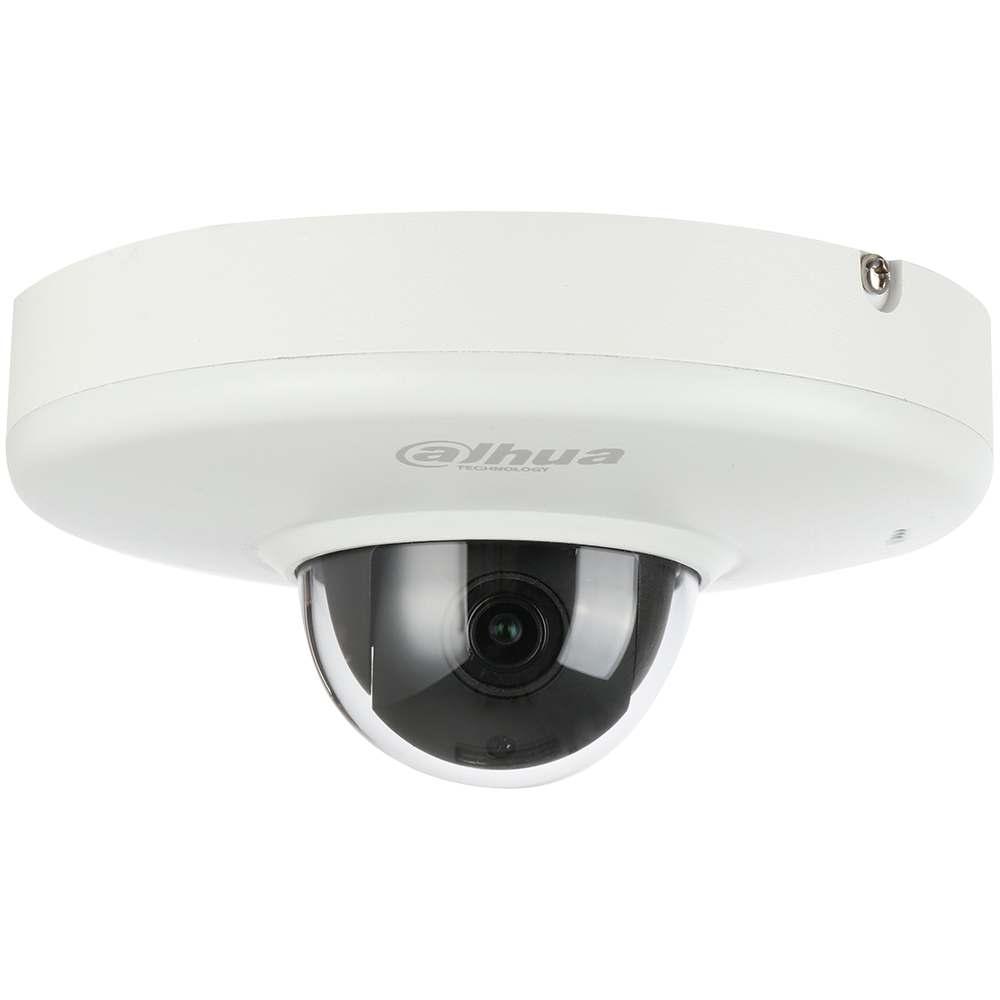

The compact 2 MP Starlight PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 3x optical zoom lens, and provides an all in one solution for capturing video surveillance for indoor and outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True Wide Dynamic Range for applications with direct sunlight or glare.
Features:
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Starlight Technology for Ultra-low Light Sensitivity
- 3x Optical Zoom
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codecs
- 1080p at 30 fps Maximum Resolution
- True Wide Dynamic Range
- Intelligent Video System (IVS)
- IP66 Ingress Protection and IK08 Vandal Resistance
- PoE Support
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Camera
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| RAM/ROM | 512 MB/128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.8 B/W: 0.0005 lux at F1.8 |
| S/N Ratio | More than 50 dB |
Lens
| Focal Length | 2.7 mm to 8.1 mm |
| Max. Aperture | F1.8 |
| Angle of View | Horizontal: 105.6° to 35.2° |
| Optical Zoom | 3x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm (3.94 in. to 39.37 in.) |
PTZ
| Pan/Tilt Range | Pan: 0° to 355° Tilt: 5° to 90° |
| Manual Control Speed | Pan: 0.1° to 70° /s; Tilt: 0.1° to 30° /s |
| Preset Speed | Pan: 80° /s; Tilt: 40° /s |
| Presets | 300 |
| PTZ Mode | 8 Tours |
| Speed Setup | Human-oriented focal Length/speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/Tour if there is no command in the specified period |
| Protocol | DH-SD |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream: | 1080p or 720p at 30 fps |
| Sub Stream 1: | D1 or CIF at 30 fps | |
| Sub Stream 2: | 720p, D1, or CIF at 30 fps | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.265/H.264: 448 K to 8192 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto, Manual | |
| Noise Reduction | Ultra DNR (2D/3D) | |
| Advanced Features | Motion Detection, Region of Interest, Defog, | |
| Digital Zoom | 16x | |
| Flip | 180° | |
| Privacy Masking | Up to 24 areas |
Network
| Ethernet | RJ45 (10/100 Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 20 Users |

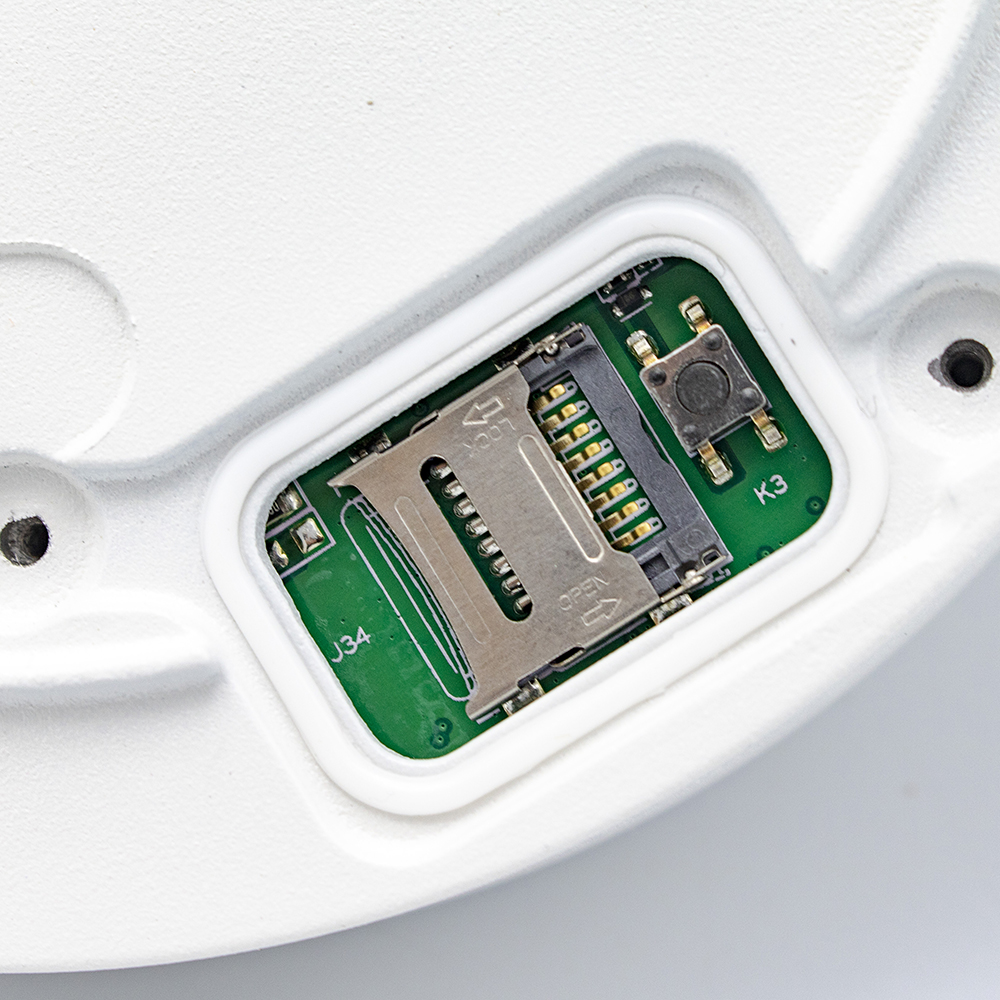

| Edge Storage | Network Attached Storage (NAS), Local PC for Instant Recording, Micro SD Card Slot, maximum 256 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SmartPSS, DSS |
| Mobile Operating System | IOS, Android |
