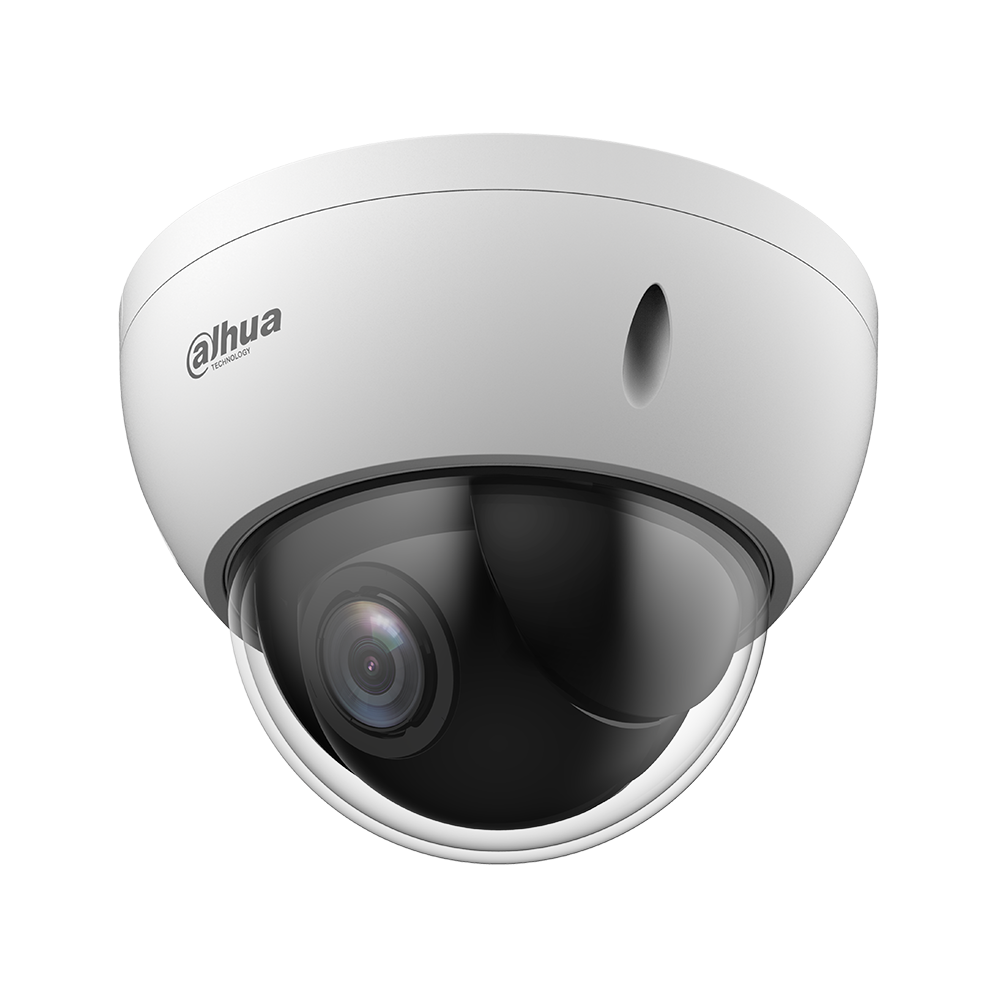

Dahua - 22404DBNR - 4MP Enhanced Starlight Network PTZ Camera (4x)

Name: Dahua - 22404DBNR - 4MP Enhanced Starlight Network PTZ Camera (4x)
Brand: Dahua
SKU: 22404DBNR

Part number:

22404DBNR

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

Featuring powerful optical zoom capabilities, accurate pan/tilt/zoom performance, and a small, compact form, this camera provides an all-in-one solution for capturing video security for small-sized applications. With Enhanced Starlight Technology, the camera is the perfect solution for low-light applications.

Features:

1/2.8-in. STARVIS™ CMOS Sensor
Powerful 4x Optical Zoom Lens
Enhanced Starlight Technology for Low-light Applications
Smart H.265+ and Smart H.264+ Smart Dual Codec
Maximum Frame Rate 4MP (2560 x 1440) at 30 fps
Analytics+ Functions: Smart Motion Detection, Face Detection, PFA Technology, Perimeter Protection
IP66 Ingress Protection, IK10 Vandal Protection, TVS 6000 V Surge Protection
Five-year Warranty (when sold through an authorized Dahua distributor)

Technical Specification
Camera
Image Sensor			1/2.8-in. CMOS
Effective Pixels			2560 (H) × 1440 (V)
RAM/ROM			512 MB/128 MB
Scanning System			Progressive
Electronic Shutter Speed			1/1 s to 1/30,000 s
Minimum Illumination		Color	0.005 lux at F1.6
		B/W	0.0005 lux at F1.6
Lens
Focal Length			2.8 mm to 12 mm
Maximum Aperature			F1.6 to F3.0
Angle of View		Horizontal	90.3° to 29.4°
		Vertical	48.5° to 16.6°
		Diagonal	105.7° to 33.6°
Optical Zoom			4×
Focus Control			Automatic, Semi-automatic, Manual
Iris Control			Fixed
Close Focus Distance			1.5 m (4.92 ft)
DORI1 Distance			Detect	Observe	Recognize	Identify
			240 m (787.40 ft)	94.8 m (311.02 ft)	48 m (157.48 ft)	24 m (78.74 ft)
PTZ
Pan/Tilt Range	Pan		0° to 355°
	Tilt		0° to 90°
Manual Control Speed	Pan		0.1° to 100°/s
	Tilt		0.1° to 60°/s
Preset Speed	Pan		100°/s
	Tilt		0°/s
Presets			300
PTZ Mode			5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans
PTZ Protocol			SD Pelco-P/D (Auto-recognition)
Idle Motion			Activate Preset/Scan/Tour/Pattern if there is no command in the specified period
Video
Video Compression			AI Coding, H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG(Sub Stream), Smart H.264+
Streaming Capability			Three (3) Streams
Resolution			4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF(352 × 288)
Frame Rate	Main Stream		4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps
	Sub Stream 1		D1/VGA/CIF at 1 to 30 fps
	Sub Stream 2		720p at 1 to 30 fps
Bit Rate Control			CBR/VBR
Bit Rate	H.264		2,816 Kbps to 13,056 Kbps
	H.265		1,024 Kbps to 7,936 Kbps
Day/Night			Auto (ICR), Color, B/W
Backlight Compensation			BLC, DWDR, HLC
White Balance			Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp
Gain Control			Auto, Shutter Priority, Gain Priority, Manual
Noise Reduction			2D, 3D
Advanced Features			Motion Detection, Region of Interest (RoI), Image Stabilization, Electronic Defog
Digital Zoom			16x
S/N Ratio			≥ 55 dB
Network
Ethernet			One (1) RJ-45 Port (10/100 Base-T)

Protocol		TCP, FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, IP Filter, SMB, HTTP, SSL, DHCP, SMTP, SNMPv1/v2c/v3(MIB-2), Qos, RTSP, ARP
Interoperability		CGI, ONVIF (Profile S, G, T)
Streaming Method		Unicast/Multicast
Maximum User Access		20 Users (Total Bandwidth 64 Mbps)
Edge Storage		Micro SD Card (Max 256 GB), FTP, SFTP, NAS
Browser		Safari (iOS 10 or Later), Microsoft Edge, Google Chrome 41 or Later, Firefox 50 or Later
Management Software		DSS, DMSS
Mobile Client		iOS, Android
Certifications
CE		IEC 62368-1, EN 55032, EN IEC 61000-3-2, EN55024, EN55035, EN50130-4
FCC		47 CFR FCC Part15, Subpart B, NSI C63.4
Interface
Alarm Linkage		Capture, Recording, Send Email, Preset, Tour, Pattern, Alarm Digital Input
Alarm Event		Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
Electrical

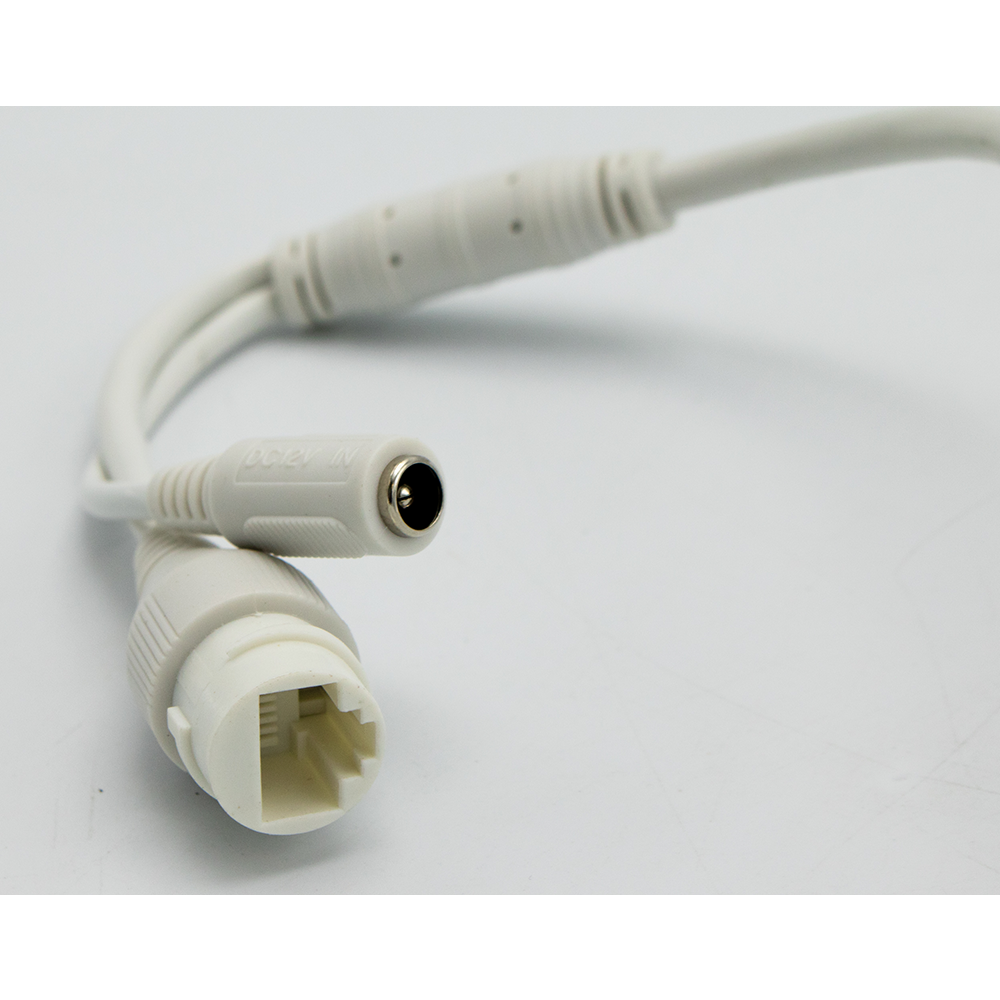

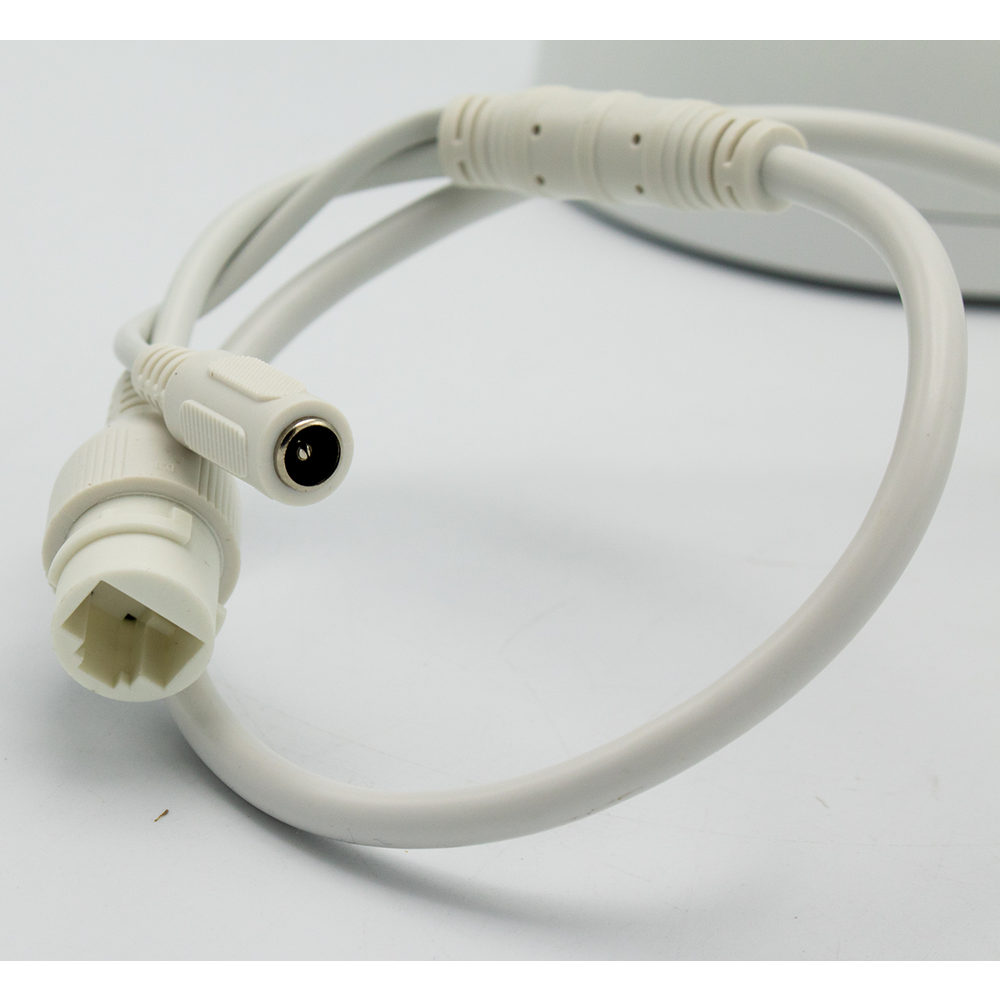

Power Supply		12 VDC/3A±10%, PoE (802.3at)
Power Consumption	Basic	2.3 W
	Maximum	6.1 W
Environmental
Operating Temperature		–30 °C to +60 °C (–22 °F to +140 °F)
Operating Humidity		≤ 95%
Storage Temperature		–30 °C to +60 °C (–22 °F to +140 °F)
Storage Humidity		≤ 95%
Ingress Protection		IP66
Vandal Resistance		IK10
Surge Protection		TVS 6000 V
Construction
Product Dimensions		89 mm × 122 mm (3.50 in. × 4.80 in.)
Net Weight		0.5 kg (1.10 lb)
Gross Weight		0.7 kg (1.54 lb)
Analytics+ Functions
Face Detection		• Detects and captures a snapshot of a human face in a defined area within a scene.
Smart Motion Detection+		• Differentiates between and classifies human and vehicle objects. • Filters false alarms due to leaves, lights, animals, and other inconsequential objects. • Extracts human or vehicle objects from recorded video for quick target search and retrieval.
Perimeter Protection		• Detects human violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. • Monitors a combination of detection methods.
Intelligent Video System (IVS) Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features		Tampering with the camera. Error writing to an onboard Micro SD card. Error sending or receiving data over the network. Unauthorized access to the camera.
Premium Features
Tripwire		A target crosses a user-defined line.
Intrusion		A target enters or exits a defined perimeter.
