40212TNI - EOL Replacement: 4A425DBNR
Part number:
40212TNI
Price:

1/2.8-in. 2MP STARVIS CMOS, H.265, H.264, MJPEG, 1080p at 30 fps, 5.3 mm to 64 mm/F1.6, Autofocus, Starlight 0.005 lux/F1.6, WDR (120 dB), IVS, Facial Detection, IP66 and IK10 (includes wall mount & adapter and power supply)

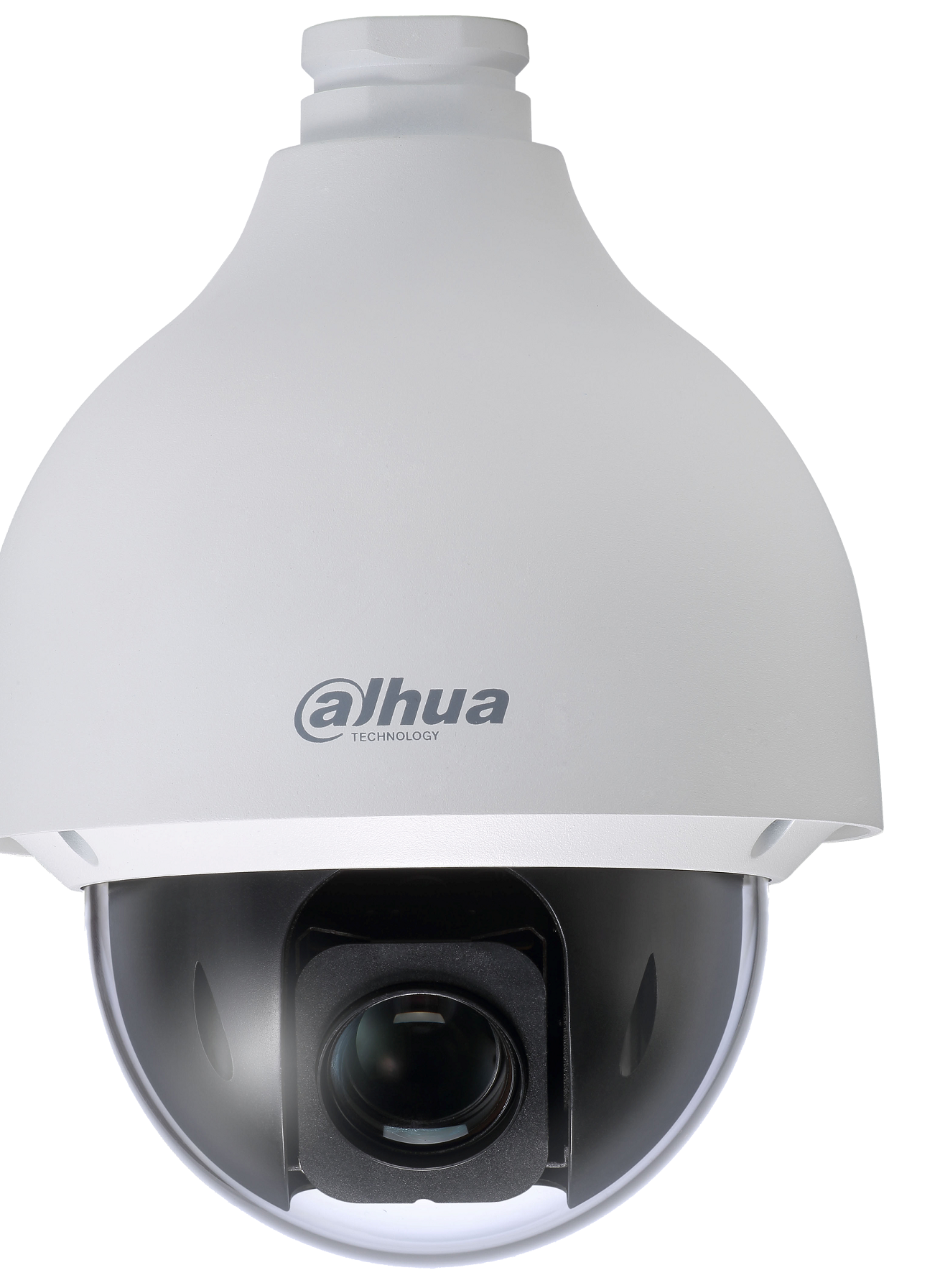

The 2 MP Starlight PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 12x optical zoom lens, and provides an all in one solution for capturing video surveillance for indoor and outdoor applications. The camera uses the H.265 video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.



Features:

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Starlight Technology for Ultra-low Light Sensitivity
  • 12x Optical Zoom
  • Triple-stream Encoding
  • H.265 and H.264 Dual Codecs
  • 1080p at 30 fps Maximum Resolution
  • Intelligent Video System (IVS)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP66 Ingress Protection and IK10 Vandal Resistance
  • PoE+ Support
  • Five-year Warranty (for products sold through authorized Dahua Dealers)

Camera

Image Sensor1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels1920(H) x 1080(V), 2 MP
RAM/ROM1024 MB / 128 MB
Scanning SystemProgressive
Electronic Shutter Speed1/1 s to 1/30,000 s
Minimum IlluminationColor: 0.005 lux at F1.6
B/W: 0.0005 lux at F1.6
S/N RatioMore than 55 dB

Lens

Focal Length5.3 mm to 64 mm
Maximum ApertureF1.6 to F4.4
Angle of ViewHorizontal: 4.8° to 58.2°
Optical Zoom12x
Focus ControlAuto, Manual
Close Focus Distance100 mm to 1000 mm
Name
Description
Size
Downloads
File
Data Sheet
1.1mb
File
Quick Start Guide
0.8mb
File
Specification
0mb
