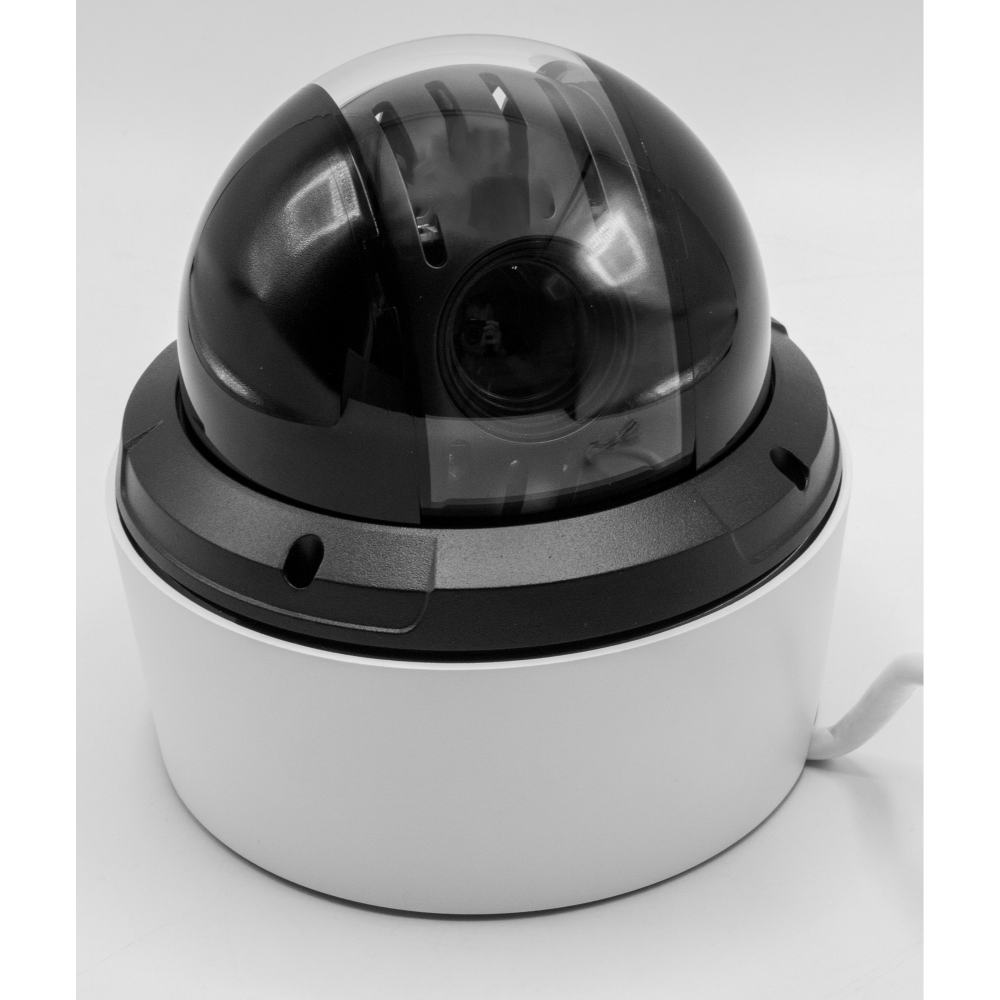

The 4MP Enhanced Starlight Network PTZ camera offers a comprehensive solution for capturing long-distance video security in outdoor and low-light applications. It uses Smart H.265+ video compression to improve encoding efficiency without compromising video quality. This PTZ camera has advanced Analytics+ functions such as Perimeter Protection and Smart Motion Detection to significantly improve accuracy and reliability compared to standard intelligent features. Infrared illumination and Enhanced Starlight technology make the camera suitable for low-light situations.
Features:
1/2.8-in STARVIS™ Progressive-scan CMOS Sensor
• Powerful 25x Optical Zoom Lens
• Smart H.265+ and Smart H.264+ Dual Codecs
• Enhanced Starlight Technology for Ultra-low Light Sensitivity
• 4MP (2560 × 1440) at 30 fps
• Maximum IR distance up to 100 m (328.08 ft)
• Predictive Focus Algorithm (PFA) Technology
• Analytics+ Functions — Perimeter Protection, Face Detection, and Smart Motion Detection
• Intelligent Video System with Auto-tracking
• ArcticPro Series Camera – Operational down to –40° C (–40° F)
• IP66 Protection
• Five Year Warranty*
| Camera | ||||||
| Image Sensor | 1/2.8-in STARVIS™ CMOS | |||||
| Effective Pixels | 4MP (2560 × 1440) | |||||
| RAM/ROM | 512 MB/128 MB | |||||
| Scanning System | Progressive | |||||
| Electronic Shutter Speed | 1/1 s to 1/30000 s | |||||
| Minimum Illumination | Color | 0.005 lux at F1.6 | ||||
| B/W | 0.0005 lux at F1.6 | |||||
| IR On | 0 lux | |||||
| IR Distance | 100 m (328.08 ft) | |||||
| IR On/Off Control | Zoom Priority, Manual, Smart IR, Off | |||||
| Illuminator Number | Six (6) | |||||
| Lens | ||||||
| Focal Length | 5 mm to 125 mm | |||||
| Maximum Aperture | F1.6 to F3.6 | |||||
| Field of View | Pan | 51.9° to 3.0° | ||||
| Tilt | 39.7° to 2.2° | |||||
| Rotation | 63.1° to 3.7° | |||||
| Optical Zoom | 25x | |||||
| Focus Control | Auto, Semi-automatic, Manual | |||||
| Close Focus Distance | 0.5 m to 5 m (1.64 ft to 16.40 ft) | |||||
| Iris Control | Auto, Manual, Fixed | |||||
| DORI1 Distance | Detect | Observe | Recognize | Identify | ||
| 2500 m (8202.10 ft) | 987.5 m (3239.83 ft) | 500 m (1640.42 ft) | 250 m (820.21 ft) | |||
| Pan/Tilt/Zoom | ||||||
| Pan/Tilt Range | Pan | 0° to 360° endless | ||||
| Tilt | –5° to +90°, Auto flip 180° | |||||
| Manual Control Speed | Pan | 0.1°/s to 240°/s | ||||
| Tilt | 0.1°/s to 160°/s | |||||
| Preset Speed | Pan | 240°/s | ||||
| Tilt | 160°/s | |||||
| Presets | 300 | |||||
| PTZ Mode | 5 Patterns, 8 Tours (Up to 32 Presets per Tour), 5 Scans | |||||
| Power Up Action | Auto restore to previous PTZ and lens status after power failure | |||||
| Idle Motion | Activate Preset/Scan/Tour/Pattern if there is no command in the specified period | |||||
| Video | ||||||
| Video Compression | H.264H, H.264B, Smart H.264+, Smart H.265+, H.264, H.265, MJPEG(Sub Stream) | |||||
| Streaming Capability | Three (3) Streams | |||||
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF(352 × 288) | |||||
| Frame Rate | Main Stream | 4MP/3MP/1080p/1.3MP/720p at 1 to 30 fps | ||||
| Sub Stream 1 | D1/VGA/CIF at 1 to 30 fps | |||||
| Sub Stream 2 | 720p/CIF at 1 to 30 fps | |||||
| Bit Rate Control | CBR/VBR | |||||
| Bit Rate | H.264 | 2816 kbps to 3056 kbps | ||||
| H.265 | 1024 kbps to 7936 kbps | |||||
| Day/Night | Auto (ICR), Color, B/W | |||||
| Backlight Compensation | BLC, HLC, True WDR (120 dB) | |||||
| White Balance | Auto, Iris Priority, Shutter Priority, Gain Priority, Manual | |||||
| Gain Control | Auto, Manual | |||||
| Noise Reduction | 2DNR, 3DNR | |
| Advanced Features | Electronic Image Stabilization (EIS), Electronic Defog | |
| Digital Zoom | 16x | |
| Image Rotation | 180° | |
| Privacy Masking | Up to 24 areas with up to 8 areas in the same view | |
| S/N | ≥ 55 dB | |
| Motion Detection | Supported | |
| Region of Interest (RoI) | Supported (8 Regions) | |
| Audio | ||
| Compression | G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, PCM, AAC | |
| Network | ||
| Ethernet | RJ-45 (10/100 Base-T) | |
| Protocol | TCP, FTP, RTMP, IPv6, Bonjour, IPv4, DNS, RTCP, PPPoE, NTP, RTP, 802.1x, HTTPS, SNMP, TCP/IP, DDNS, UPnP, NFS, ICMP, UDP, IGMP, IP Filter, HTTP, SSL, DHCP, SMTP, SNMPv1/v2c/v3(MIB-2), Qos, RTSP, ARP | |
| Interoperability | CGI, SDK, ONVIF (Profile S, G, T), P2P | |
| Streaming Method | Unicast/Multicast | |
| Maximum User Access | 20 (Total Bandwidth: 64 Mbps) | |
| Edge Storage | MicroSD Card (Max 64 GB), FTP, SFTP, NAS | |
| Browser | Edge, Chrome (Version 86 or later) | |
| Management Software | DSS, DMSS, Smart PSS | |
| Mobile Client | iOS, Android | |
| Certification | ||
| CE | EN55032/EN55024/EN50130-4 | |
| Electromagnetic Compatability (EMC) | Part 15 Subpart B, ANSI C63.4-2014 | |
| Interface | ||
| Audio | Input | One (1) Channel (LINE IN, bare wire) |
| Output | One (1) Channel (LINE OUT, bare wire) | |
| Alarm | Input | Two (2) Channel |
| Output | One (1) Channel | |
| Alarm Linkage | Capture, Preset, Tour, Pattern, Recordings On Sd Card, Alarm Digital Input, Send Email, Wake | |
| Alarm Event | Motion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection, Power Exception Detection | |
| Electrical | ||
| Power Supply | 12 VDC/2 A ± 10% (included), PoE+ (802.3at) | |
| Power Consumption | Basic | 9.5 W |
| Maximum | 21.5 W (Illuminator + Fan + PTZ) | |
| Environmental | ||
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) | |
| Operating Humidity | ≤ 95% | |
| Storage Temperature | –40 °C to +65 °C (–40 °F to +149 °F) | |
| Storage Humidity | ≤ 95% | |
| Protection | IP66 | |
| Surge Protection | TVS 6000 V | |
| Construction | ||
| Product Dimensions | 168.0 mm × Φ171.1 mm (6.61" × Φ6.74") | |
| Net Weight | 2.5 kg (5.51 lb) | |
| Gross Weight | 3.2 kg (7.05 lb) | |
