50230UNI-A - EOL Replacement: 50232XANR
Part number:
50230UNI-A
Price:

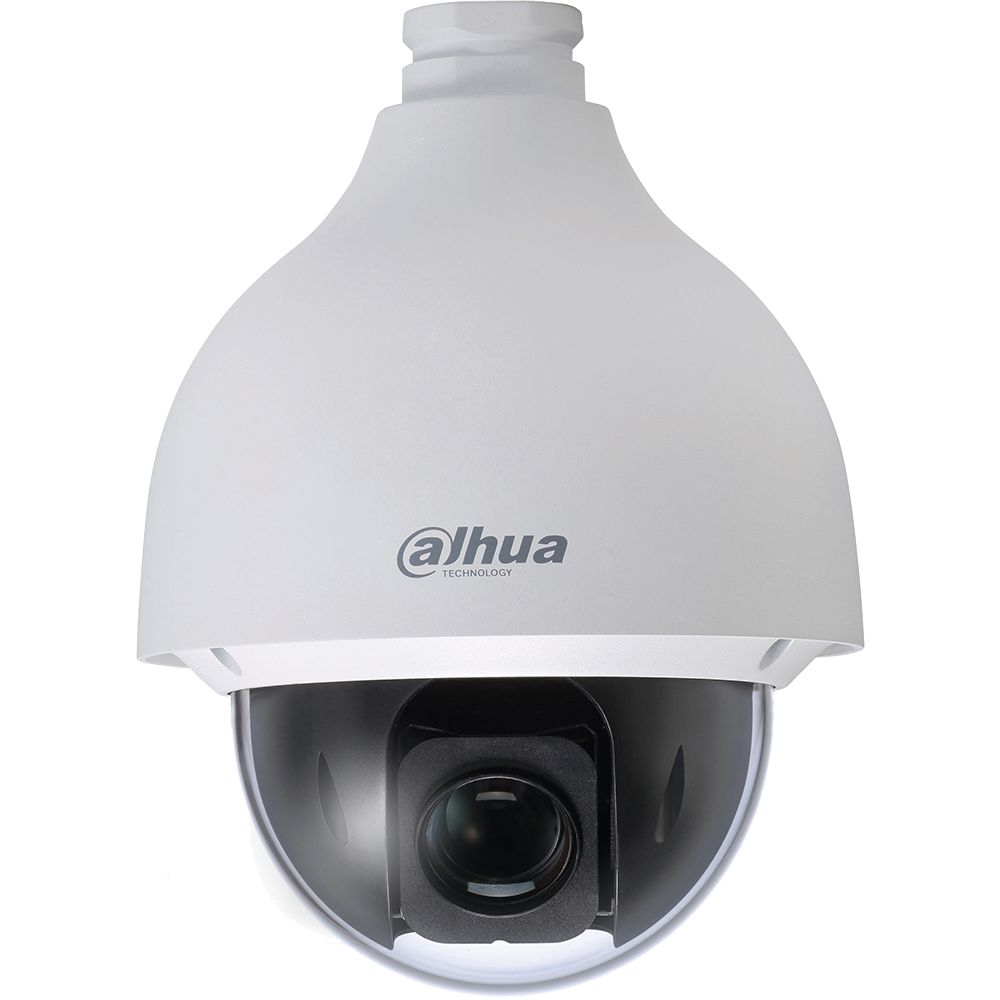

The 2MP PTZ camera features a 1/2.8-in. CMOS imager with a 30x optical zoom lens for capturing mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.

Thanks to the camera’s true day/night IR cut filter and True WDR for applications with direct sunlight or glare, images are crisp and clear in both day or nighttime applications.

For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.



Features:



  • 1/2.8-in. 2MP STARVIS™ CMOS Sensor
  • Powerful 30x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • 1080p at 60 fps  Maximum Resolution
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Designed for Extreme Temperature Environments

Camera

Image Sensor 1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels 1920(H) x 1080(V), 2MP
RAM/ROM 512 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed 1/1 s to 1/30,000 s
Minimum Illumination Color: 0.005 lux at F1.6
B/W: 0.0005 lux at F1.6
S/N Ratio More than 55 dB

Lens

Focal Length 4.5 mm to 135 mm
Max. Aperture F1.6 to F4.4
Angle of View Horizontal: 67.8° to 2.4°
Optical Zoom 30x
Focus Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm
