50232XANR - EOL Replacement: 50432GBNR
Part number:
50232XANR
Price:
1/2.8-in. 2MP STARVIS™ CMOS, 32x optical zoom, Max. 50/60 fps@1080P, Starlight technology, Deep-learning-based auto tracking and perimeter protection SMD, PoE+, IP66 , IK10, Face Detection

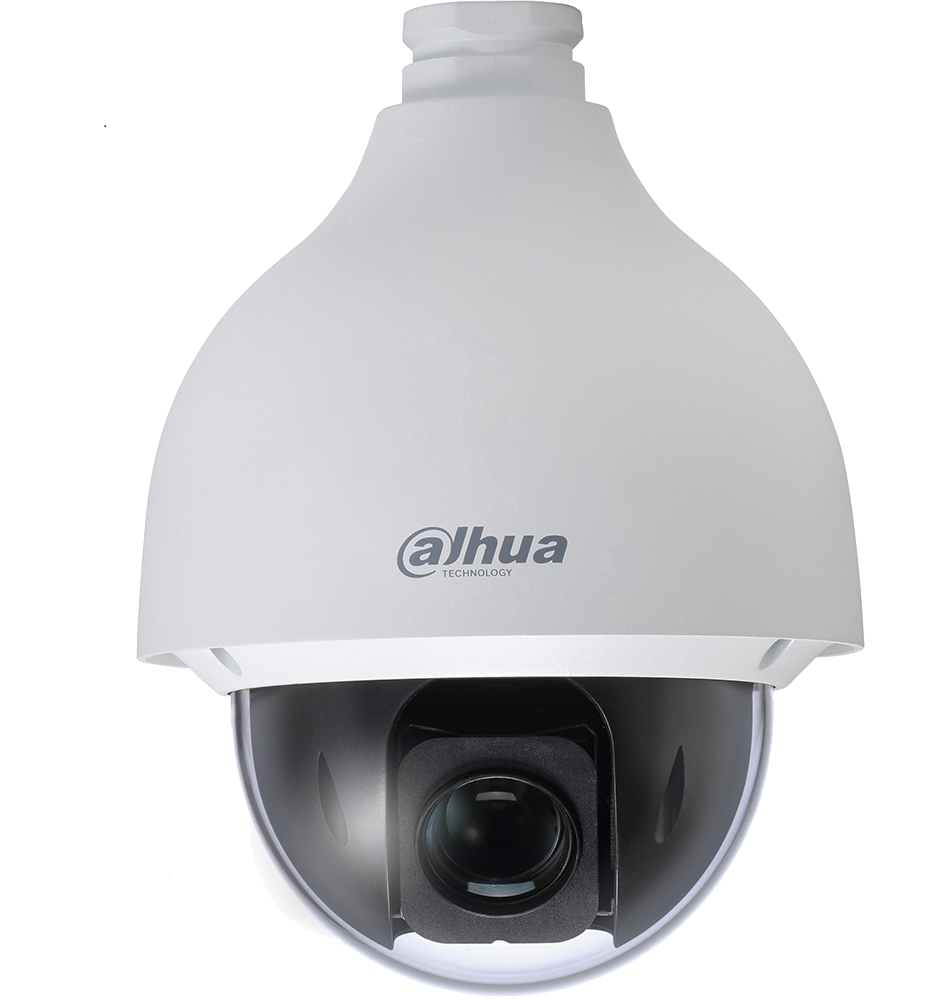

The 2 MP Starlight PTZ Dome camera features a 1/2.8-in. STARVIS™ CMOS imager with a 32x optical zoom lens, and provides an all-in-one solution for capturing long-distance video surveillance for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Features:
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- 1080p at 60 fps Maximum Resolution
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Powerful 32x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- True Wide Dynamic Range (120 dB)
- Analytics+ Function – Perimeter Protection, Smart Motion Detection
- Predictive Focus Analysis (PFA) Technology
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System with Auto-tracking
- Five-year Warranty (for products sold through authorized Dahua Dealers)
| Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor | |||
| Effective Pixels | 1920(H) x 1080(V), 2 MP | |||
| RAM/ROM | 1GB/4GB | |||
| Scanning System | Progressive | |||
| Electronic Shutter Speed | 1/1 s to 1/30,000 s | |||
| Minimum Illumination | Color: 0.005 lux at F1.35 | |||
| B/W: 0.0005 lux at F1.35 | ||||
| S/N Ratio | ≥ 55 dB | |||
| Lens | ||||
| Focal Length | 4.9 mm to 156.0 mm | |||
| Maximum Aperture | F1.35 to F4.4 | |||
| Horizontal | 62.8° to 2.2° | |||
| Angle of View | Vertical | 36.7° to 1.3° | ||
| Diagonal | 69.2° to 2.6° | |||
| Optical Zoom | 32x | |||
| Focus Control | Auto, Manual, Fixed | |||
| Close Focus Distance | 100.0 mm to 1500.0 mm (3.28 ft to 4.92 ft) | |||
| DORI Distance¹ | ||||
| Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) | |
| 2152.0 m | 850.0 m | 430.0 m | 215.0 m | |
| (7060.37 ft) | (2788.71 ft) | (1410.76 ft) | (705.38 ft) | |
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° to 360° endless, | |||
| Tilt: 0° to 90° | ||||
| Auto Flip 180° | ||||
| Manual Control Speed | Pan: 0.1° to 350° /s | |||
| Tilt: 0.1° to 250° /s | ||||
| Preset Speed | Pan: 500° /s | |||
| Tilt: 500° /s | ||||
| Presets | 300 | |||
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan | |||
| Speed Setup | Human-oriented Focal Length, Speed | |||
| Adaptation | ||||
| Power up Action | Auto restore to previous PTZ and lens status | |||
| after power failure | ||||
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is | |||
| no command in the specified period | ||||
| Protocol | DH-SD, Pelco-P/D (Auto-recognition) | |||
| Video | ||||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, | |||
| H.264B, H.264H, MJPEG (sub stream only) | ||||
| Streaming Capability | Three (3) Streams | |||
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), | |||
| 720p (1280 x 720), D1 (704 x 480), | ||||
| CIF (352 x 240) | ||||
| Main Stream | 1080p, 1.3 MP or 720p at 60 fps | |||
| Frame Rate | Sub Stream 1 | D1 or CIF at 30 fps | ||
| Sub Stream 2 | 720p at 30 fps | |||
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.265/H.264: 3 Kbps to 20480 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| Backlight Compensation | BLC, HLC, WDR (120 dB) | |
| White Balance | Auto, Indoor, Outdoor, ATW, Manual, Sodium Lamp, | |
| Natural, Street Lamp | ||
| Gain Control | Auto, Manual, Aperture Priority, Gain Priority, | |
| Shutter Priority | ||
| Noise Reduction | 2D/3D | |
| Advanced Features | Motion Detection, Region of Interest, | |
| Electronic Image Stabilization (EIS), Defog | ||
| Digital Zoom | 16x | |
| Flip | 180° | |
| Privacy Masking | Up to 24 areas | |
| Audio | ||
| Compression | G.711a, G.711Mu, G.722.1, G.726,G.729, MPEG2-L2, | |
| G.723 | ||
| Network | ||
| Ethernet | ||
| RJ-45 (10 100 Base-T) | ||
| IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, | ||
| Protocol | ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, | |
| DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, | ||
| 802.1x | ||
| Interoperability | ONVIF, PSIA, CGI | |
| Streaming Method | Unicast / Multicast | |
| Maximum User Access | 20 Users (Total Bandwidth: 64 Mbps) | |
| Edge Storage | Network Attached Storage (NAS), FTP, | |
| Micro SD Card, up to 128 GB | ||
| Web Viewer | IE 7 and later, Firefox 52 and later, | |
| Chrome 42 and later, Safari | ||
| Management Software | DSS Express, DSS, DMSS | |
| Mobile Operating System | IOS, Android | |
| Video Encryption, Firmware Encryption, | ||
| Configuration Encryption, Digest, WSSE, Account | ||
| Cybersecurity | Lockout, Security Logs, IP/MAC Filtering, Generating | |
| and Importing X.509 Certification, Syslog, HTTPS, | ||
| 802.1x, Trusted Boot, Trusted Execution, Trusted | ||
| Upgrade | ||
| Certifications | ||
| Safety | UL 62368-1 + CAN/CSA C22.2, No.62368-1 | |
| Electromagnetic Compatibility | CF4 47 FCC Part 15 Subpart B | |
| ANSI C63.4-2014 | ||
| (EMC) | ||
| EN 55032, EN 55024, EN 50130-4 | ||
| Interface | ||
| Audio | Input: One (1) Channel | |
| Output: One (1) Channel | ||
| RS485 | One (1) Port | |
| Alarm | Input: Two (2) Channels | |
| Output: One (1) Channel | ||
| Power Supply | 24 VDC, 2.5 A; PoE+ (IEEE802.3at Class 4) | |
| Power Consumption | Basic: 10 W | |
| Maximum: 16 W | ||
| Environmental | ||
| Operating Conditions | –40° C to 60° C (–40° F to 140° F), | |
| Less than 95% RH | ||
| Ingress Protection | IP67 | |
| Vandal Resistance | IK10 | |
| Surge Protection | 6 KV, lightning proof; surge protection; voltage | |
| transient protection | ||
| Construction | ||
| Casing | Metal | |
| Dimensions | �186.0 mm x 253.0 mm (�7.32 in. x 9.96 in.) | |
| Net Weight | 2.50 kg (5.51 lb) | |
| Gross Weight | 4.50 kg (9.92 lb) | |
| Analytics+ Functions | ||
| • Detects human or vehicle violations using the following | ||
| methods: | ||
| Perimeter Protection | Tripwire: a target crosses a defined line. | |
| Intrusion: a target enters or exits a defined perimeter. | ||
| • Monitors a combination of ten (10) detection methods. | ||
| • Search and retrieve video based on target type. | ||
| • Differentiates between and classify human and vehicle | ||
| objects. | ||
| Smart Motion Detection | • Filters false alarms due to leaves, lights, animals, and | |
| other inconsequential objects. | ||
| • Extracts human or vehicle objects from recorded video | ||
| for quick target search and retrieval. | ||
| Intelligence |
| • Tampering with the camera. | ||
| Standard Features | • Error writing to an onboard Micro SD card. | |
| • Error sending or receiving data over the network. | ||
| • Unauthorized access to the camera. | ||
| Premium Features |
| Motion | An object moves through any part of the scene. | |
| Scene Change | A person or object moves the camera to change the scene | |
| or covers the camera to obscure the scene. | ||
| Abandoned/Missing | A target leaves an object in designated area, or a target | |
| Object | removes an object from the same designated area. | |
| Advanced Features | ||
| Face Detection | Detects and captures a snapshot of a human face within | |
| a scene. | ||
| Alarm Track | Controls the pan/tilt/zoom actions of the camera to | |
| automatically track an object in motion and to keep it in | ||
| the scene. |
