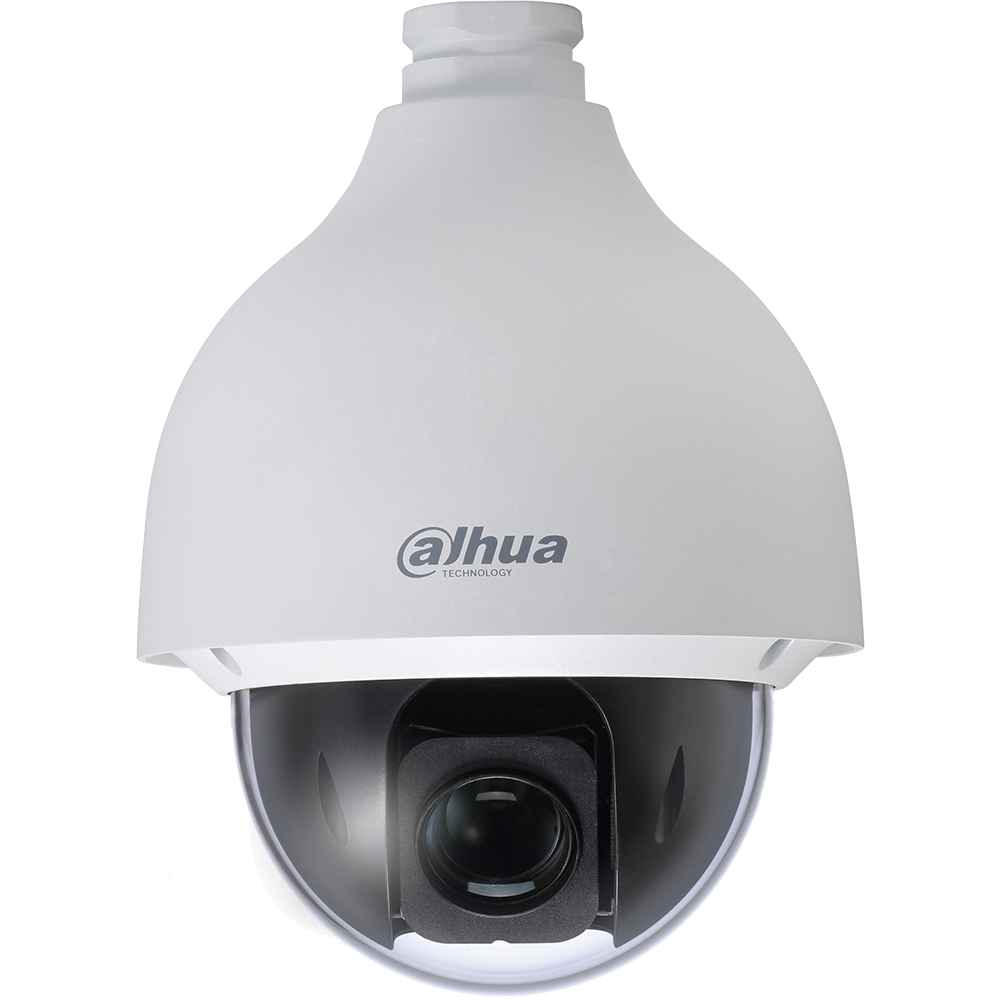

The 4MP PTZ camera features a 1/3-in. CMOS imager with a 30x optical zoom lens for capturing mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.
Thanks to the camera’s true day/night IR cut filter and True WDR for applications with direct sunlight or glare, images are crisp and clear in both day or nighttime applications.
For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.
Features:
- 1/3-in. 4 MP Progressive Scan CMOS
- Powerful 30x Optical Zoom
- Smart H.265+ and H.264 Video Compression Encoding
- 4MP / 3MP at 30 fps or 1080p at 30/60 fps
- True Wide Dynamic Range
- Predictive Focus Algorithm
- Auto-tracking and Intelligent Video System (IVS)
- IP67 Ingress Protection and IK10 Vandal Resistance
- PoE+ Support
Camera
| Image Sensor | 1/3-in. CMOS |
| Effective Pixels | 2592(H) x 1520(V), 4 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.6 B/W: 0.005 lux at F.16 |
| S/N Ratio | More than 55 dB |
Lens
| Focal Length | 4.5 mm to 135 mm |
| Max. Aperture | F1.6 to F4.4 |
| Angle of View | Horizontal: 2.2° to 60° |
| Optical Zoom | 30x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: 0° to 90°, Auto Flip 180° |
| Manual Control Speed | Pan: 0.1° to 350° /s Tilt: 0.1° to 250° /s |
| Preset Speed | Pan: 500° /s Tilt: 500° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented Focal Length, Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset, Scan, Tour, or Pattern if there is no command in the specified period |
| Protocol | DH-SD |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2592 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream:4 MP, 3 MP at 30 fps or 1080p, 1.3 MP, or 720p at 60 fps |
| Sub Stream 1: D1 or CIF at 30 fps | |
| Sub Stream 2: 1080p, 1.3 MP, 720p, D1 or CIF at 30 fps | |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265/H.264: 448 K to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
Network
| Ethernet | RJ-45 (10 Base-T/100 Base-TX) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage) Local PC for instant recording, Micro SD Card, maximum 128 GB |
| Web Viewer | IE 10, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
