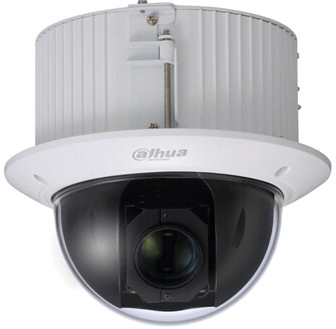

Dahua - 52C230UNI-A - 2MP 30x In-ceiling PTZ
Part number:
52C230UNI-A
Price:
The 2MP in-ceiling PTZ camera features a 1/2.8-in. CMOS imager with a 30x optical zoom lens for capturing indoor, mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.
Features:
- 1/2.8-in. 2MP STARVIS™ CMOS Sensor
- Powerful 30x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codec
- 1080p at 60 fps or 720p at 30/60 fps Maximum Resolution
- Intelligent Video System (IVS) Analytics with Auto-tracking
- IK10 Vandal Resistance
Camera
| Image Sensor | 1/2.8-in. STARVIS™ CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V), 2MP |
| RAM/ROM | 512 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 |
| S/N Ratio | More than 55 dB |
Lens
| Focal Length | 4.5 mm to 135.0 mm |
| Max. Aperture | F1.6 to F4.4 |
| Angle of View | Horizontal: 67.8° to 2.4° |
| Optical Zoom | 30x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
