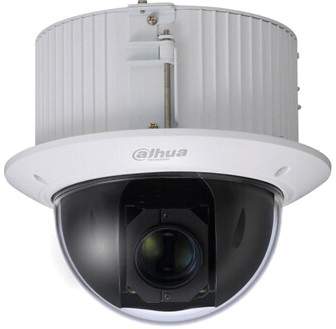

The 4MP in-ceiling PTZ Dome camera features a 1/3-in. CMOS imager with a 30x optical zoom lens for capturing indoor, mid to long-range video surveillance. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/ tilt/zoom control and True WDR for applications with direct sunlight or glare. For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.
Features:
- 1/3-in. 4 MP Progressive Scan CMOS
- Powerful 30x Optical Zoom
- Smart H.265+ and H.264 Dual Codec
- 4MP / 3MP at 30 fps or 1080p at 30/60 fps
- True Wide Dynamic Range
- Predictive Focus Algorithm
- Auto-tracking and Intelligent Video System (IVS)
- IK10 Vandal Resistance
- PoE+ Support
Camera
| Image Sensor | 1/3-in. CMOS |
| Effective Pixels | 2592(H) x 1520(V), 4 MP |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.6 B/W: 0.005 lux at F1.6 |
| S/N Ratio | More than 55 dB |
Lens
| Focal Length | 4.5 mm to 135 mm |
| Max. Aperture | F1.6 to F4.4 |
| Angle of View | Horizontal: 2.2° to 60° |
| Optical Zoom | 30x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
