HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.

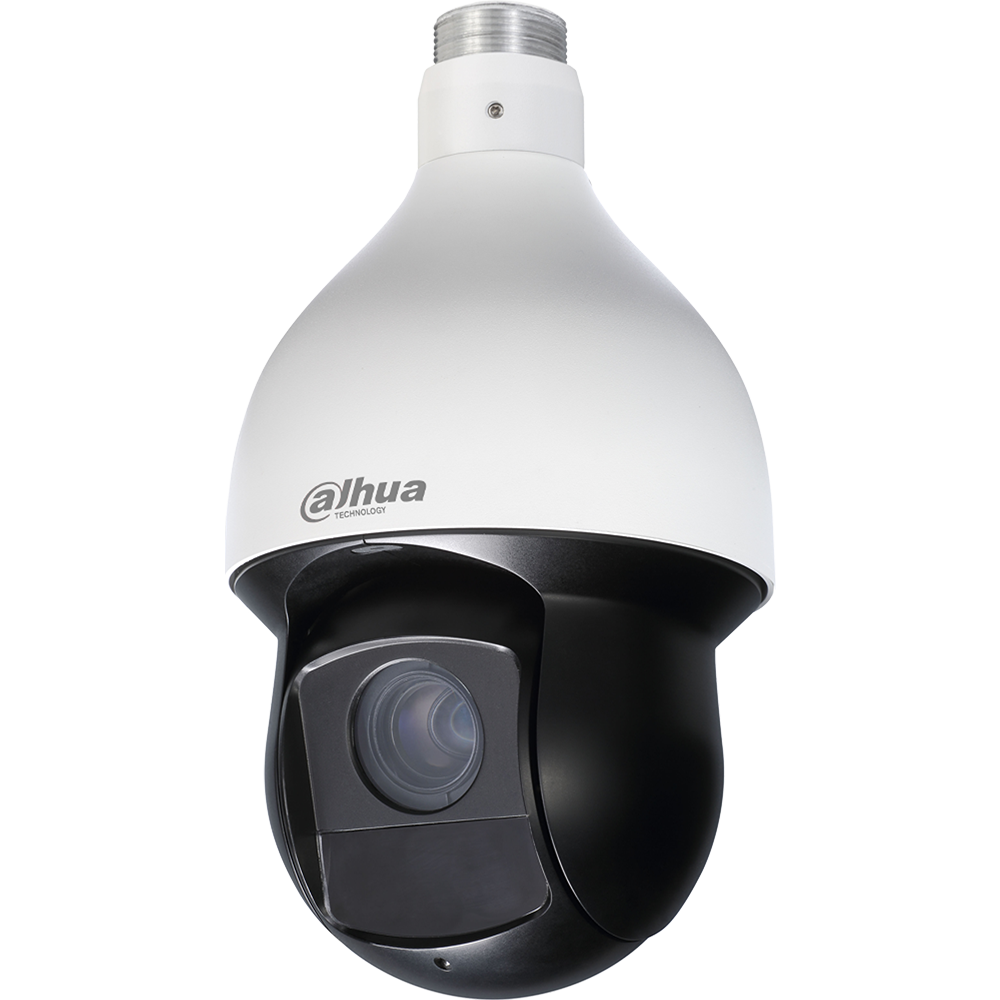

The 2MP IR PTZ camera features a lowlight 1/2.8-in. STARVIS™ CMOS imager with a 30x optical zoom lens, and provides an all in one solution for capturing mid to long-distance video surveillance for indoor and outdoor applications. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare. Thanks to the camera’s true day/night IR cut filter, Smart IR, and Starlight technology images are crisp and clear in both day or nighttime applications. The camera’s IP66 rating, and low temperature rating with integrated heater makes this camera ideal for challenging environments.
The camera provides multiple video formats for easy integration when using competing technologies such as TVI, AHD, CVI, and CVBS.
Features:
- 1/2.8-in. 2MP STARVIS™ Progressive-scan CMOS Sensor
- Powerful 30x Optical Zoom
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Starlight Technology for Ultra-low Light Sensitivity
- 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
- True Wide Dynamic Range (120 dB), 3D DNR
- Maximum IR Distance up to 150 m (492 ft)
- IP66 Ingress Protection
- Designed for Extreme Temperature Environment
Camera
|
Image Sensor |
|
1/2.8 in. STARVIS™ CMOS |
|
|
|
|
Effective Pixels |
|
1920(H) x 1080(V), 2 MP |
|
|
|
|
Scanning System |
|
Progressive |
|
|
|
|
|
|
|
|
||
|
Electronic Shutter Speed |
1/3 s to 1/100,000 s |
|
|
||
|
|
|
Color: 0.005 lux at F1.6 |
|
|
|
|
Minimum Illumination |
|
|
|||
|
B/W: 0.0005 lux at F1.6 |
|
|
|||
|
|
|
0 lux at F1.6 with IR on |
|
|
|
|
IR Distance |
|
Distance up to 150.0 m (492.13 ft) |
|
||
|
IR On/Off Control |
|
Auto, Manual, Timer |
|
|
|
|
IR LEDs |
|
Four (4) |
|
|
|
|
Lens |
|
|
|
|
|
|
Focal Length |
|
4.5 mm to 144 mm |
|
|
|
|
Max. Aperture |
|
F1.6 to F4.0 |
|
|
|
|
Angle of View |
|
Horizontal: 2.75° to 60.14° |
|
|
|
|
|
Vertical: 1.54° to 34.41° |
|
|
||
|
|
|
Diagonal: 3.16° to 68.23° |
|
|
|
|
Optical Zoom |
|
32x |
|
|
|
|
Focus Control |
|
Auto, Semi-automatic, Manual |
|
|
|
|
Close Focus Distance |
|
100 mm to 1500 mm (3.93 in. to 59.06 in.) |
|
||
|
DORI Distance¹ |
|
|
|
|
|
|
Detect (8 ppf) |
Observe (19 ppf) |
Recognize (38 ppf) |
Identify (76 ppf) |
|
|
|
1986 m (6515.75 ft) |
785 m (2575.46 ft) |
398 m (1305.77 ft) |
198 m (649.61 ft) |
|
|
|
PTZ |
|
|
|
|
|
|
Pan/Tilt Range |
|
Pan: 0° to 360° endless; |
|
|
|
|
|
Tilt: –15° to 90° |
|
|
||
|
|
|
Auto flip 180° |
|
|
|
|
Manual Control Speed |
Pan: 0.1° to 300° /s; |
|
|
||
|
Tilt: 0.1° to 200° /s |
|
|
|||
|
|
|
|
|
||
|
Preset Speed |
|
Pan: 400° /s |
|
|
|
|
|
Tilt: 300° /s |
|
|
||
|
|
|
|
|
||
|
Presets |
|
300 |
|
|
|
|
PTZ Mode |
|
5 Pattern, 8 Tour, Auto Pan, Auto Scan |
|
||
|
Speed Setup |
|
Human-oriented Focal Length / Speed Adaptation |
|
||
|
Power up Action |
|
Auto restore to previous PTZ and lens status after |
|
||
|
|
power failure |
|
|
||
|
|
|
|
|
||
|
Idle Motion |
|
Activate Preset, Scan, Tour, Pattern if there is no |
|
||
|
|
command in the specified period |
|
|||
|
|
|
|
|||
|
Protocol |
|
DH-SD, Pelco-P/D (Auto recognition) |
|
||
Video
|
Resolution |
1080p (1920 x 1080), 720p (1280 x 720), |
|
|
|
D1 (704 x 580) |
|
|
|
|
|
|
|
|
|
Frame Rate |
1080p at 30 fps or 720p at 30/60 fps |
|
|
|
Video Output |
One (1) Channel, BNC |
|
|
|
High-definition Video Output (HDCVI, AHD, TVI) or |
|
||
|
|
CVBS Standard Definition Video Output (switchable) |
|
|
|
|
RG-59/U Coax |
720p: 500 m (1640.42 ft) |
|
|
|
1080p: 400 m (1312.34 ft) |
|
|
|
|
|
|
|
|
Transmission Distance² |
RG-6/U Coax |
720p: 800 m (2624.67 ft) |
|
|
1080p: 600 m (1968.50 ft) |
|
||
|
|
CAT 6 UTP |
720p: 380 m (1246.72 ft) |
|
|
|
(balun required) |
1080p: 380 m (1246.72 ft) |
|
|
Day/Night |
Auto (ICR), Color, B/W, Timer |
|
|
|
OSD Menu |
English, French, German, Italian, Japanese, Polish, |
|
|
|
Portuguese, Russian, Spanish |
|
||
|
|
|
||
|
Backlight Compensation |
BLC, HLC, WDR (120 dB) |
|
|
|
White Balance |
Auto, Indoor, Outdoor, Tracking, Manual, |
|
|
|
Sodium Lamp, Natural Light, Street Lamp |
|
||
|
|
|
||
|
Gain Control |
Auto, Manual, Iris Priority, Shutter Priority |
|
|
|
Noise Reduction |
2D/3D |
|
|
|
|
|
|
|
|
Advanced Features |
Defog |
|
|
|
|
|
|
|
|
Digital Zoom |
16x |
|
|
|
Flip |
0° / 180° |
|
|
|
Privacy Masking |
Up to 24 areas |
|
|
|
Certifications |
|
|
|
|
CE |
EN55032, EN55024, EN50130-4 |
|
|
|
Safety |
UL60950-1+CAN/CSA C22.2,No.60950-1 |
|
|
|
Electromagnetic Compatibility |
FCC Part 15 subpart B |
|
|
|
(EMC) |
ANSI C63.4- 2014 |
|
|
|
Interface |
|
|
|
|
Video |
Output: One (1) BNC |
|
|
|
Audio |
Input: One (1) Channel |
|
|
|
RS485 |
One (1) Port (baud rate range: 1200 bps–9600 bps) |
|
|
|
Alarm |
Input: Two (2) Channels |
|
|
|
Output: One (1) Channel |
|
||
|
|
|
||
|
Electrical |
|
|
|
|
Power Supply |
24 VAC, 2.5 A ±25% |
|
|
|
Power Consumption |
9.6 W, 22 W with IR on |
|
|
|
Environmental |
|
|
|
|
Operating Conditions |
–40 °C to 60 °C (–40 °F to +140 °F), |
|
|
|
Less than 90% RH |
|
|
|
|
|
|
|
|
|
Ingress Protection |
IP66 |
|
|
|
Surge Protection |
TVS 6000V |
|
|
|
Construction |
|
|
|
|
Casing |
Metal |
|
|
|
Dimensions |
�186.0 mm x 309.0 mm (�7.32 in. x 12.17 in.) |
|
|
|
Net Weight |
3.50 kg (7.72 lb) |
|
|
|
Gross Weight |
6.80 kg (14.99 lb) |
|
|
