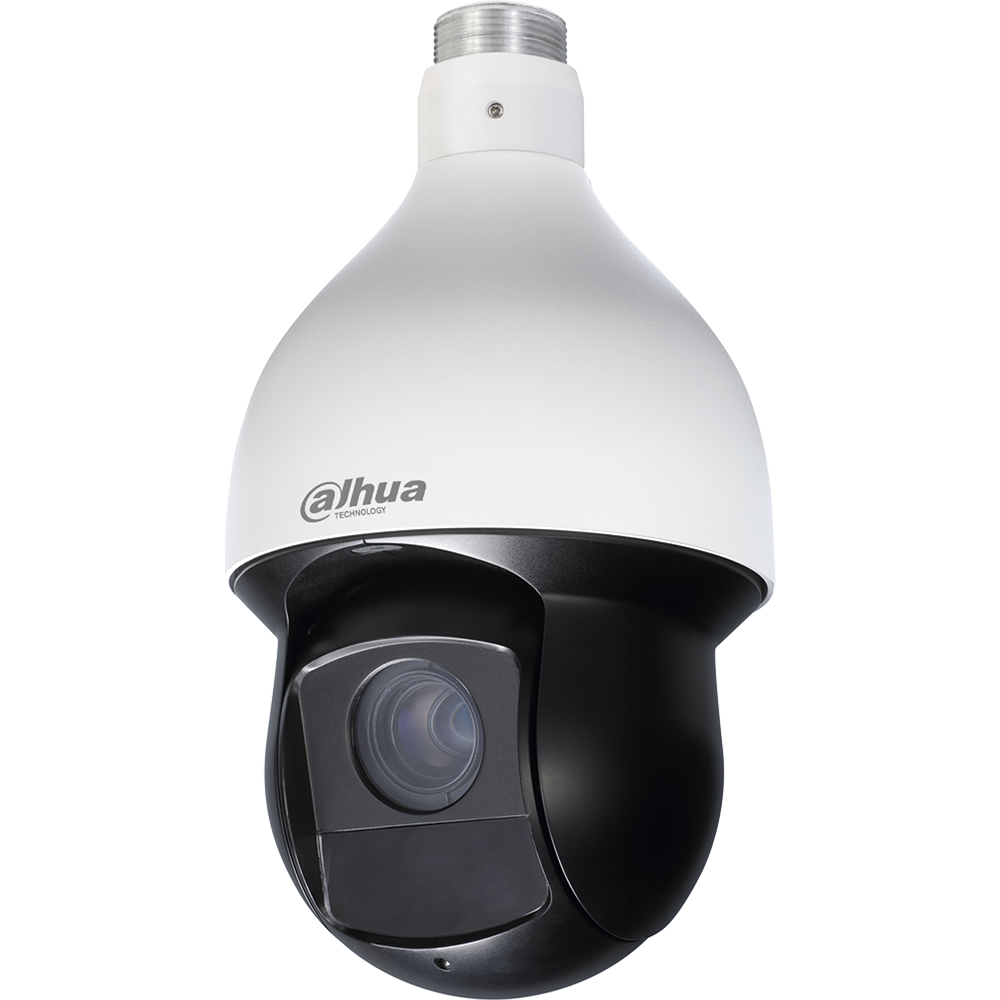

Dahua - 59232ICLA - 2MP 32x CVI PTZ camera, Enhanced Starlight, Pro Series
The 2 MP Starlight IR PTZ Dome camera features a 1/2.8-in. STARVIS CMOS imager with a 32x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications, day or night. The camera offers a built-in heater and IP66 Ingress Protection to extend its use to the harshest environments. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.
Features:
- 1/2.8-in. 2 MP STARVIS CMOS Sensor
- Powerful 32x Optical Zoom
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Starlight Technology for Ultra-low Light Sensitivity
- 1080p at 30 fps or 720p at 30/60 fps, Maximum Resolution
- True Wide Dynamic Range (120 dB), 3D DNR
- Maximum IR Distance up to 150 m (492.13 ft)
- Predictive Focus Analysis (PFA) Technology
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP66 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.8 in. STARVIS CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 0 lux at F1.6 with IR on |
| IR Distance | Distance up to 150.0 m (492.13 ft) |
| IR On/Off Control | Auto, Manual, Timer |
| IR LEDs | Four (4) |
| Lens | |
| Focal Length | 4.5 mm to 144 mm |
| Max. Aperture | F1.6 to F4.0 |
| Angle of View | Horizontal: 2.75° to 60.14° Vertical: 1.54° to 34.41° Diagonal: 3.16° to 68.23° |
| Optical Zoom | 32x |
| Focus Control | Auto, Semi-automatic, Manual |
| Close Focus Distance | 100 mm to 1500 mm (3.93 in. to 59.06 in.) |
| PTZ | |
| Manual Control Speed | Pan: 0.1° to 300° /s; Tilt: 0.1° to 200° /s |
| Preset Speed | Pan: 400° /s Tilt: 300° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup | Human-oriented Focal Length / Speed Adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Video | ||
| Resolution | 1080p (1920 x 1080), 720p (1280 x 720), D1 (704 x 580) | |
| Frame Rate | 1080p at 30 fps or 720p at 30/60 fps | |
| Video Output | One (1) Channel, BNC High-definition Video Output (HDCVI, AHD, TVI) or CVBS Standard Definition Video Output (switchable) | |
| Transmission Distance² | RG-59/U Coax | 720p: 500 m (1640.42 ft) 1080p: 400 m (1312.34 ft) |
| RG-6/U Coax | 720p: 800 m (2624.67 ft) 1080p: 600 m (1968.50 ft) | |
CAT 6 UTP (balun required) | 720p: 380 m (1246.72 ft) 1080p: 380 m (1246.72 ft) | |
| Day/Night | Auto (ICR), Color, B/W, Timer | |
| OSD Menu | English, French, German, Italian, Japanese, Polish, Portuguese, Russian, Spanish | |
| Backlight Compensation | BLC, HLC, WDR (120 dB) | |
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp | |
| Gain Control | Auto, Manual, Iris Priority, Shutter Priority | |
| Noise Reduction | 2D/3D | |
| Advanced Features | Defog | |
| Digital Zoom | 16x | |
| Flip | 0° / 180° | |
| Privacy Masking | Up to 24 areas | |
| Certifications | |
| CE | EN55032, EN55024, EN50130-4 |
| Safety | UL60950-1+CAN/CSA C22.2,No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC Part 15 subpart B ANSI C63.4- 2014 |
| Interface | |
| Video | Output: One (1) BNC |
| Audio | Input: One (1) Channel |
| RS485 | One (1) Port (baud rate range: 1200 bps–9600 bps) |
| Alarm | Input: Two (2) Channels Output: One (1) Channel |
| Electrical | |
| Power Supply | 24 VAC, 2.5 A ±25% |
| Power Consumption | 9.6 W, 22 W with IR on |
| Construction | |
| Casing | Metal |
| Dimensions | 186.0 mm x 309.0 mm (7.32 in. x 12.17 in.) |
| Net Weight | 3.50 kg (7.72 lb) |
| Gross Weight | 6.80 kg (14.99 lb) |
