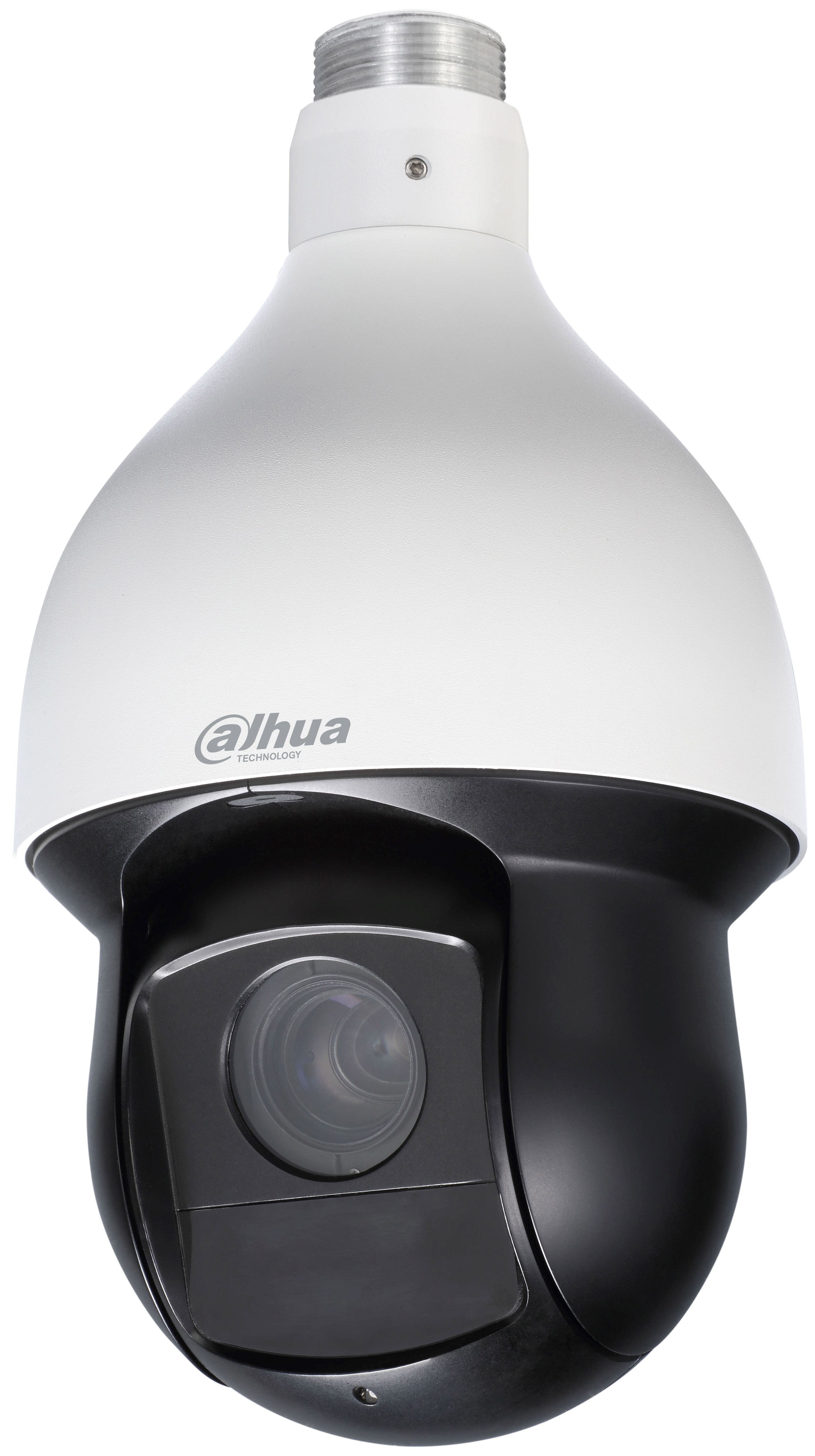

Dahua - 59430UNI - 4MP IR 30x PTZ
Part number:
59430UNI
Price:

The 4MP IR PTZ camera features a 1/3-in. CMOS imager with a 30x optical zoom lens for capturing mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.

The PTZ camera is equipped with quick and accurate pan/ tilt/zoom control and True WDR for applications with direct sunlight or glare. Thanks to the camera’s true day/night IR cut filter, Smart IR, and defog, images are crisp and clear in both day or nighttime applications.

For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.

The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object, preventing the IR LEDs from whitening out images as they come closer to the camera. This series is suitable for indoor or outdoor applications.



Features:

  • 1/3-in. 4 MP Progressive Scan CMOS
  • Powerful 30x Optical Zoom
  • Smart H.265+ and H.264 Video Compression Encoding
  • 4MP / 3MP at 30 fps or 1080p at 30/60 fps
  • True Wide Dynamic Range
  • Auto-tracking and Intelligent Video System (IVS)
  • Maximum IR distance up to 100 m (328 ft)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP66 Ingress Protection
  • PoE+ Support

Camera

Image Sensor 1/3-in. CMOS
Effective Pixels 2592(H) x 1520(V), 4 MP
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed 1/1 s to 1/30,000 s
Minimum Illumination Color: 0.05 lux at F1.6
0 lux at F1.6 with IR on
S/N Ratio More than 55 dB
IR Distance Distance up to 100.0 m (328.10 ft)
IR On/Off Control Auto, Manual
IR LEDs Four (4)

Lens

Focal Length 4.5 mm to 135 mm
Max. Aperture F1.6 to F4.4
Angle of View Horizontal: 60° to 2.2°
Optical Zoom 30x
Focus Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm
