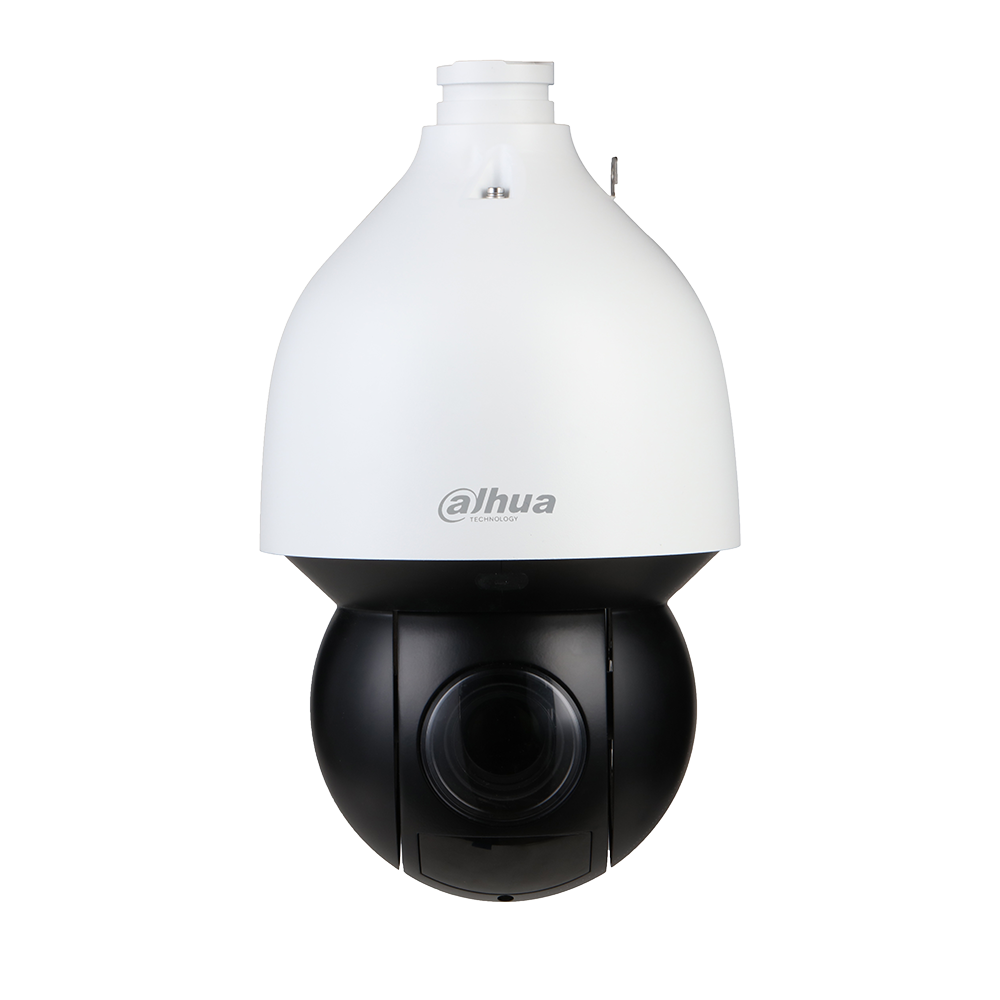

Dahua - 5A825GANR - 8MP CMOS, 25x optical zoom, IR IP PTZ, Enhanced Starlight, Pro Series
Part number:
5A825GANR
Price:
The 8MP Network Starlight PTZ camera uses a 1/1.8-in. CMOS imager with a 25x optical zoom lens, and provides an all-in-one solution for capturing long-distance video security for outdoor applications. The camera uses the Smart H.265+ video compression standard to improve encoding efficiency while preserving high-quality video. The PTZ camera offers Analytics+ functions at the edge – performing complex perimeter protection with Smart Motion Detection to distinguish human and vehicle motion, significantly improving accuracy and reliability as compared to standard intelligent features.
Features:
- 1/1.8-in. 8MP Progressive-scan CMOS Sensor
- Powerful 25x Optical Zoom Lens
- Smart H.265+ and Smart H.264+ Dual Codecs
- Starlight Technology for Ultra-low Light Sensitivity
- 8 MP (3840 x 2160) at 30 fps
- Maximum IR distance up to 150 m (492.13 ft)
- Predictive Focus Algorithm (PFA) Technology
- Analytics+ Functions — Perimeter Protection, Face Detection, and Smart Motion Detection
- Intelligent Video System with Auto-tracking
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five Year Warranty (when sold through an authorized Dahua dealer)
| Technical Specification | |||||
| Camera | |||||
| Image Sensor | 1/1.8-in. 8 MP Progressive-scan CMOS | ||||
| Effective Pixels | 3840 (H) × 2160 (V), 8MP | ||||
| RAM/ROM | 1 GB/ 4 GB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | 1/1 s to 1/30,000 s | ||||
| Minimum Illumination | Color: 0.005 lux at F1.6 B/W: 0.0005 lux at F1.6 0 Lux with IR on | ||||
| IR Distance | Distance up to 150 m (492.13 ft) | ||||
| IR On/Off Control | Zoom Priority, Manual, Auto, Off | ||||
| Illuminator Number | Four (4) LEDs (IR) | ||||
| Lens | |||||
| Focal Length | 5.4 mm to 135.0 mm | ||||
| Max. Aperture | F1.6 to F4.0 | ||||
| Angle of View | Horizontal: 61.6° to 3.6° Vertical: 35.7° to 2° Diagonal: 66.6° to 4° | ||||
| Optical Zoom | 25× | ||||
| Focus Control | Automatic, Semi-automatic, Manual | ||||
Iris Control
| Auto, Manual, Fixed | ||||
| Close Focus Distance | 0.1 m to 2.0 m (0.33 ft to 6.56 ft) | ||||
| DORI1 Distance | Detect | Observe | Recognize | Identify | |
| 2700.0 m (8858.27 ft) | 1066.0 m (3497.38 ft) | 540.0 m (1771.65 ft) | 270.0 m (885.83 ft) | ||
| PTZ | |||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to 90°, Auto Flip 180° | ||||
| Manual Control Speed | Pan: 0.1°/s to 300°/s Tilt: 0.1°/s to 140°/s | ||||
| Preset Speed | Pan: 400°/s Tilt: 300°/s | ||||
| Presets | 300 | ||||
| PTZ Mode | 5 Patterns, 8 Tours (Up to 32 Presets per Tour) , 5 Scans | ||||
| Power Up Action | Auto restore to previous PTZ and lens status after power failure | ||||
| Idle Motion | Activate Preset/Scan/Tour/Pattern if there is no command in the specified period | ||||
| Video | |||||
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264H, H.264B, MJPEG (Substream Only) | ||||
| Streaming Capability | Three (3) Streams | ||||
| Resolution | 4K (3840 × 2160), 4M (2560 × 1440), 3M (2048 × 1536), 1080p (1920 × 1080), 960p (1920 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), CIF (352 × 288/352 × 240), VGA (640 × 480) | ||||
| Frame Rate | Main Stream | 8 MP, 4 MP, 3 MP, 1080p, 1.3 MP, or 720p at 30 fps | |||
| Substream 1 | D1, CIF or VGA at 30 fps | ||||
| Substream 2 | 1080p, 1.3 MP, or 720p at 30 fps | ||||
| Bit Rate Control | CBR, VBR | ||||
| Bit Rate | H.264: 128 kbps to 16,384 kbps H.265: 51 kbps to 12,288 kbps | ||||
| Day/Night | Auto (ICR), Color, B/W | ||||
| Backlight Compensation | BLC, HLC, True DWR (120 dB) | ||||
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural Light, Street Lamp |
| Gain Control | Auto, Manual |
| Noise Reduction | 2D/3D |
| Advanced Features | Motion Detection, Region of Interest (RoI), Electronic Image Stabilization (EIS), Defog |
| Digital Zoom | 16x |
| Image Rotation | 180° |
| Privacy Masking | Up to 24 areas (8 areas allowed per view) |
| S/N Ratio | ≥ 55 dB |
| Compression | PCM, G.711a, G.711Mu, G.726, MPEG2-Layer2, G722.1, G729, G723, AAC |
| Ethernet | One (1) RJ-45 Port (10/100 Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, 802.1x, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, ARP, RTCP, RTMP, Bonjour, NFS, SSL |
| Interoperability | ONVIF (Profile S, Profile G, Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users (Total Bandwidth 64 Mbps) |
| Edge Storage | Micro SD Slot, maximum 512 GB |
| Browser | IE, Chrome |
| Management Software | DSS, DMSS |
| Mobile Client | iOS, Android |
| CE | EN55032, EN55024, EN50130-4 |
| Electromagnetic Compatability (EMC) | FCC: Part15 Subpart B ANSI C63.4-2014 |
| UL | UL 60950-1 CAN/CSA C22.2 No. 60950-1 |
| Audio | Input: One (1) Channel Output: One (1) Channel |
| Alarm | Input: Two (2) Channels Output: One (1) Channel |

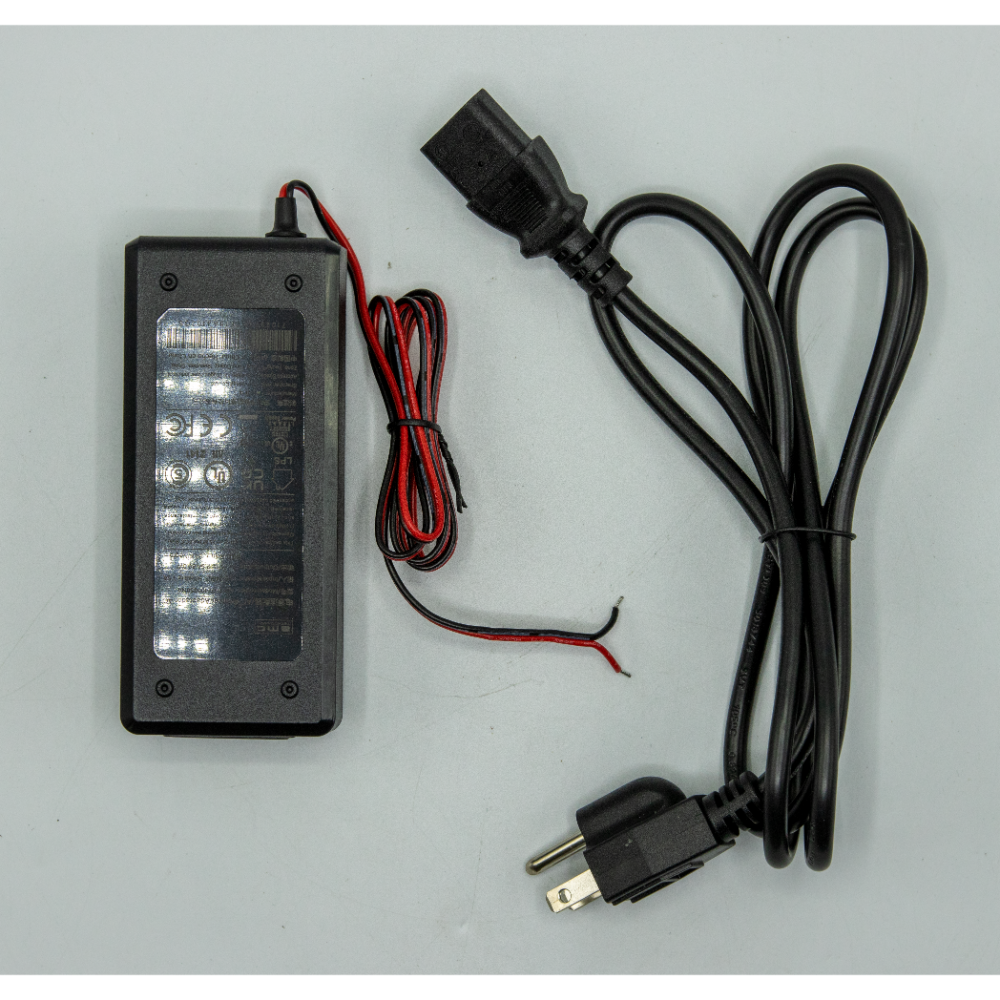

| Power Supply | 24 VDC/2.5 A ± 25% or PoE+ (802.3at) |
| Power Consumption | Basic: 12 W Maximum (with IR light on): 21 W |
| Operating Temperature | –40 °C to 70 °C (–40 °F to 158 °F) Less than or equal to 95% RH |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) Less than or equal to 95% RH |
| Protection | IP67, IK10 |
| Surge Protection | TVSS 6000 V |
| Product Dimensions | Φ190 mm × 332 mm (Φ7.48 in. × 13.07 in.) |
| Net Weight | 4.7 kg (10.36 lb) |
| Gross Weight | 8.0 kg (17.64 lb) |
