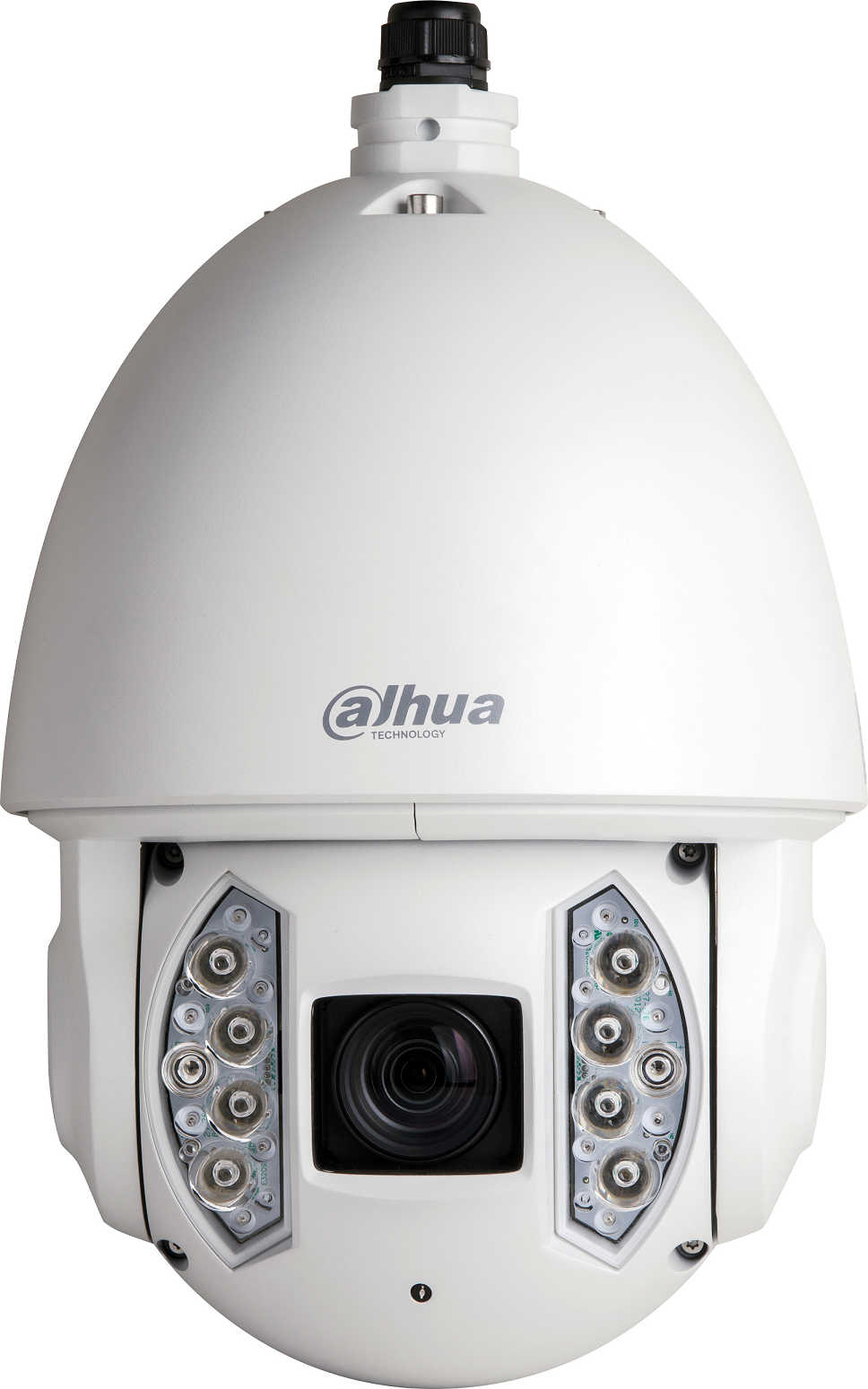

Dahua - 6AE240VNI - 2MP Starlight Network PTZ Camera (40x Zoom)
Part number:
6AE240VNI
Price:

1/2.8-in. 2MP CMOS, ICR, WDR, Starlight 0.005Lux/F1.2, 40X PTZ, IR up to 656ft, 60fps/1080p, Alarm, Audio, AC24V, H.265 / H.264, IVS, Hi-PoE, IP67, IK10 (includes PFB303W wall mount & power supply)



The 2MP IR PTZ camera features a 1/2.8-in. CMOS imager with a 40x optical zoom lens for capturing mid to long-distance video surveillance. The PTZ features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.



Features:

  • 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
  • Powerful 40x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • Triple-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 60 fps Maximum Resolution
  • Simultaneous SD Analog Video Output
  • Ultra Wide Dynamic Range (140 dB)
  • Maximum IR Distance up to 200 m (656 ft)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Intelligent Video System (IVS) Analytics with Auto-tracking
  • Supports Dahua Proprietary Hi-PoE Power Source
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Technical Specification
Camera
Image Sensor1/2.8-in. STARVIS™ CMOS Sensor
Effective Pixels1920(H) x 1080(V), 2 MP
Scanning SystemProgressive
Electronic Shutter Speed1/1 s to 1/30,000 s
Minimum IlluminationColor: 0.005 lux at F1.2
0 lux at F1.2 (IR on)
S/N RatioMore than 50 dB
IR DistanceDistance up to 200 m (656.17 ft)
IR On/Off ControlAuto, Manual
IR LEDsTen (10)
Lens
Focal Length4.5 mm to 180 mm
Max. ApertureF1.2 to F3.5
Angle of ViewHorizontal: 67.5°to 1.7°
Optical Zoom40x
Focus ControlAuto, Manual
Close Focus Distance100 mm to 1000 mm
