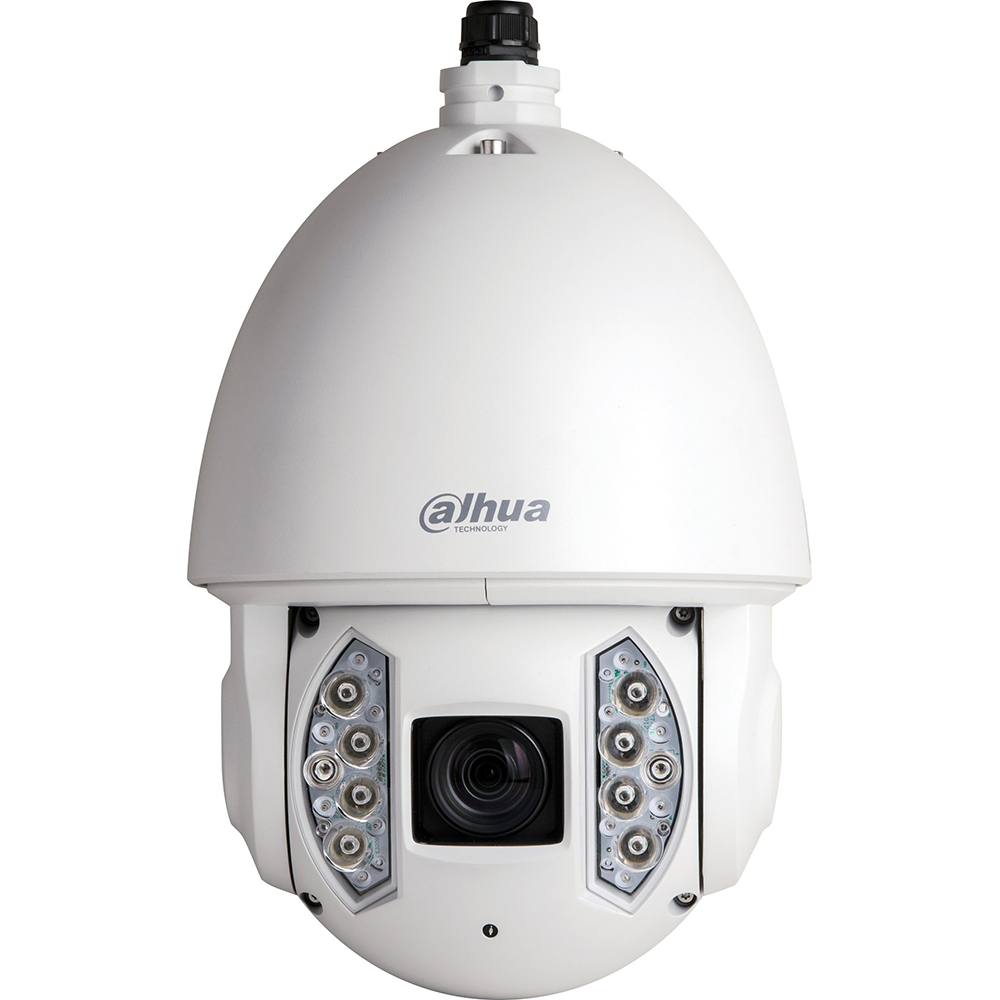

Dahua - 6AE530UNI - 5MP IR 30x PTZ
Part number:
6AE530UNI
Price:

The 5MP IR PTZ camera features a 1/1.9-in. CMOS imager with a 30x optical zoom lens and auto-tracking for long-distance video surveillance.

The PTZ features H.265 video compression, reducing bandwidth and storage requirements without sacrificing video quality. As a result, high quality video is maintained without straining the network.

Thanks to the camera’s true day/night IR cut filter, Smart IR, and defog, images are crisp and clear in both day or nighttime applications.

For a more efficient surveillance system, the camera features onboard analytics (IVS) so that violations to user-set rules can be quickly identified.

The camera’s Smart IR technology adjusts the intensity of the camera’s infrared LEDs to compensate for the distance of an object, preventing the IR LEDs from whitening out images as they come closer to the camera. This series is suitable for indoor or outdoor applications.



Features:

  • 1/1.9-in. 5MP Progressive Scan CMOS Sensor
  • Powerful 30x Optical Zoom Lens
  • H.265 and H.264 Dual Codec
  • 6 MP at 20 fps or 5 MP at 30 fps
  • Intelligent Video System with Auto-tracking
  • Maximum IR Distance up to 200 m (656 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • Supports Hi-PoE

Camera

Image Sensor 1/1.9-in. 6 MP STARVIS™ CMOS
Effective Pixels 2560(H) x 1920(V), 5 MP
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed 1/1 s to 1/30,000 s
Minimum Illumination Color: 0.01 lux at F1.5
0 lux at F1.5 with IR on
S/N Ratio More than 55 dB
IR Distance Distance up to 200.0 m (656.17 ft)
IR On/Off Control Auto, Manual
IR LEDs 10

Lens

Focal Length 6 mm to 180 mm
Max. Aperture F1.5 to F4.3
Angle of View Horizontal: 2.1° to 61.2°
Optical Zoom 30x
Focus Control Auto, Manual
Close Focus Distance 100 mm to 1000 mm
