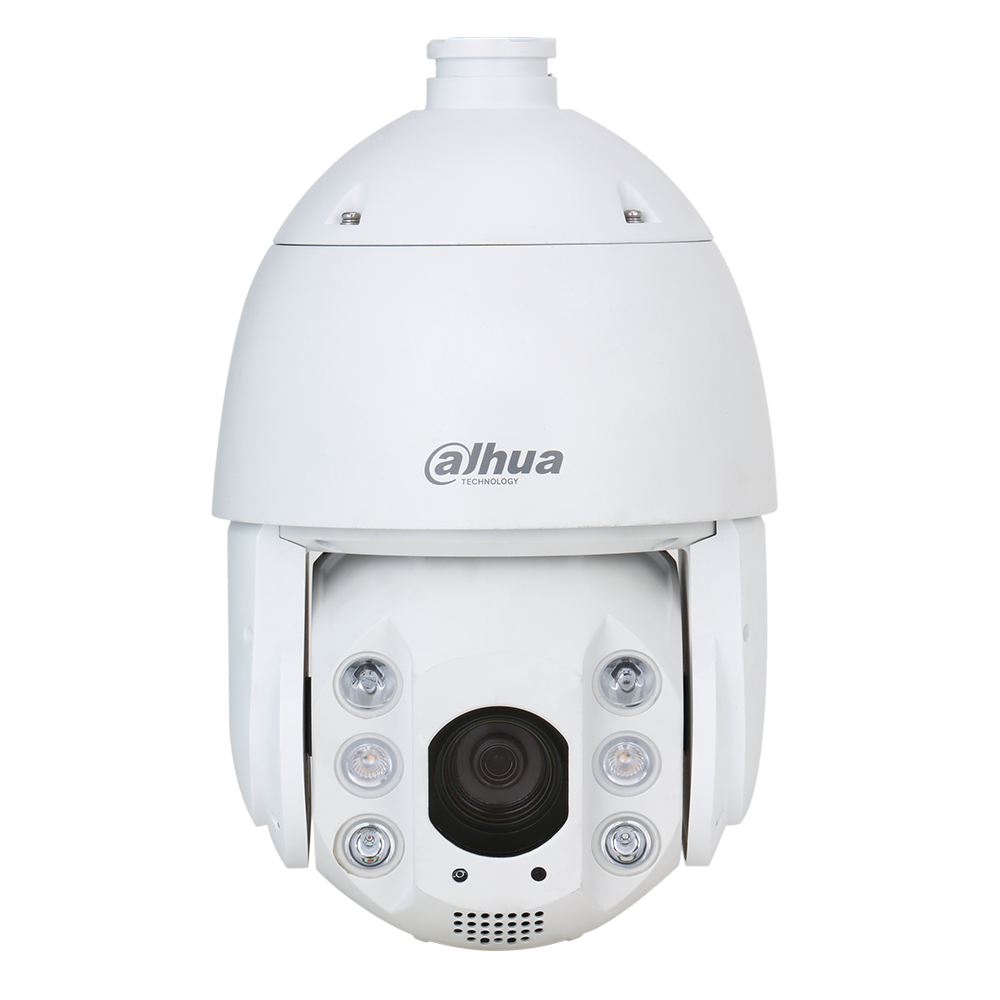

Dahua - 6C3425XBPV - 4MP 25x TIOC 6-inch IP PTZ, Enhanced Starlight, Pro Series
Part number:
6C3425XBPV
Price:

The 4MP TiOC Network PTZ camera features a 1/2.8-in. STARVIS CMOS imager with a 25x optical zoom len and provides an all -in-one solution for capturing long-distance outdoor video. The camera uses Smart H.265+ and Smart H.264+ video compression to improve encoding efficiency while preserving high-quality video. The PTZ camera is equipped with quick and accurate pan/tilt/zoom control and True WDR for applications with direct sunlight or glare.



As a Dahua Three-in-One Camera (TiOC), the 4MP TiOC Network PTZ camera offers multiple features working in tandem to assist with deterrence and low-light detection while delivering high-resolution video images. The camera also features Perimeter Protection and Smart Motion Detection that offer accurate analytics. The camera is ideal for a host of diverse applications —Enhanced Starlight Technology, True Wide Dynamic Range, and Smart Dual illuminators allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.



Features:

  • 1/2.8-in. 4MP STARVIS CMOS Sensor
  • 4MP (2560 x 1440) at 30 fps Maximum Resolution
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Powerful 25x Optical Zoom
  • Starlight Technology for Ultra-low Light Sensitivity
  • True Wide Dynamic Range (120 dB)
  • Analytics+ Function – Perimeter Protection, Smart Motion Detection+
  • Predictive Focus Analysis (PFA) Technology
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP66 Ingress Protection
  • Auto-tracking
  • Smart Dual Illumination — IR and White Light
  • Active Alarm with Red/Blue Lights and Siren or Voice Prompt
  • Five-year Warranty (when sold by an authorized Dahua dealer)
Camera
Image Sensor1/2.8-in. STARVIS CMOS Sensor
Effective Pixels2560(H) x 1440(V), 4MP
RAM/ROM1 GB / 4 GB
Electronic Shutter Speed1/1 s to 1/30,000 s
Minimum IlluminationColor: 0.005 Lux @ F1.6 B/W: 0.0005 Lux @ F1.6
IR: 0 lux
Illumination Distance150 m (492.13 ft) (IR)
50 m (164.04 ft) (White Light, Smart Illumination)
IlluminatorsTwo (2) IR Lights
Two (2) Dual Light Fusions
Two (2) White LED Lights
Lens
Focal Length4.8 mm–120 mm
Maximum ApertureF1.6–F3.5
Angle of ViewHorizontal55.8° to 2.9°
Vertical31.6° to 1.6°
Diagonal63.7° to 3.3°
Optical Zoom25x
Focus ControlAutomatic, Semiautomatic, Manual
Iris TypeFixed
Close Focus Distance0.8 m–5.0 m (2.62 ft–16.40 ft)
DORI1 DistanceDetectObserveRecognizeIdentify
1,655 m
(5,429.79
ft)
653 m
(2,142.39
ft)
331 m
(1,085.96
ft)
165 m
(541.34 ft)
PTZ
Pan/Tilt RangePan: 0° to 360° endless
Tilt: –20° to +90°
Auto flip 180°
Manual Control SpeedPan: 0.1°/s–160°/s Tilt: 0.1°/s–60°/s
Preset SpeedPan: 240°/s Tilt: 150°/s
Presets300
PTZ Mode5 Patterns, 5 Scans, 8 Tour (Up to 32 Presets/Tour)
Idle MotionActivate Preset, Scan, Tour, Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto-recognition)
Video
CompressionSmart H.265+, H.265, Smart H.264+, H.264B,
H.264H, H.264M, MJPEG (sub stream only)
Streaming CapabilityThree (3) Streams
Resolution4MP (2560 x 1440), 3MP (2048 x 1536),
1080p (1920 x 1080), 1.3MP (1280 x 960), 720p
(1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF
(352 x 240)
Frame RateMain Stream4MP/3MP/1080p/1.3MP/720p at 1–30 fps
Sub Stream
1
D1/VGA/CIF at 1–30 fps
Sub Stream
2
1080p/1.3M/720p at 1–8 fps
Electrical
Power Supply24 VDC, 2.5 A (± 25%) (Included) PoE+ (802.3at)
Power ConsumptionBasic: 13 W
Max.: 23 W (Illuminator + Red/Blue Warning Lights +
Speaker + PTZ)
Bit Rate ControlCBR, VBR
Bit RateH264: 2816 kbps–8192 kbps H265: 1024 kbps–7936 kbps
Day/NightAuto (ICR), Color, B/W
Backlight CompensationBLC, HLC, True WDR (120 dB)
White BalanceAuto, Indoor, Outdoor, ATW, Manual, Sodium Lamp, Natural, Street Lamp
Gain ControlAuto, Aperture Priority, Iris Priority, Gain Priority, Shutter Priority, Manual
Noise Reduction2D/3D
Advanced FeaturesMotion Detection, Region of Interest, Electronic Image Stabilization (EIS), Electric Defog
Digital Zoom16x
Flip180°
Privacy MaskingUp to 24 Areas (Up to 8 areas in Same View), Multiple Colors and Mosaic Blocks
S/N Ratio≥ 55 dB
Audio
Input/OutputInput: One (1) Channel (LINE IN, Bare Wire)
Output: One (1) Channel (LINE OUT, Bare Wire, Built-
in Speaker (Mutually Exclusive))
CompressionG.711a, G.711Mu, G.726, G722.1, G.729, MPEG2- Layer2, G723, PCM
Network
EthernetRJ-45 (10/100 Base-T)
ProtocolHTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, SNMP v1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, IP Filter, RTMP, Bonjour, TCP, SMB, NFS
InteroperabilityONVIF (Profile S&G&T)
Maximum User Access20 Users (Total Bandwidth: 64 Mbps)
Edge StorageFTP, MicroSD Card (256 GB), NAS
Web ViewerIE 7 or Later
Chrome 42 or Earlier Firefox 52 or Earlier Safari
Management SoftwareDSS, DMSS
Mobile Operating SystemAndroid, iOS
Certifications
CEEN55032/EN55024/EN50130-4
FCCPart15 Subpart B, ANSI C63.4-2014
Alarm
Input/OutputInput: Two (2) Channels (Digital Input (0–5 VDC)) Output: One (1) Channel
LinkageCapture, Preset, Tour, Pattern, Recording, Alarm Digital Input, Send Email
EventMotion/Tampering Detection, Audio Detection, Network Disconnection Detection, IP Conflict Detection, Memory Card State Detection, Memory Space Detection
