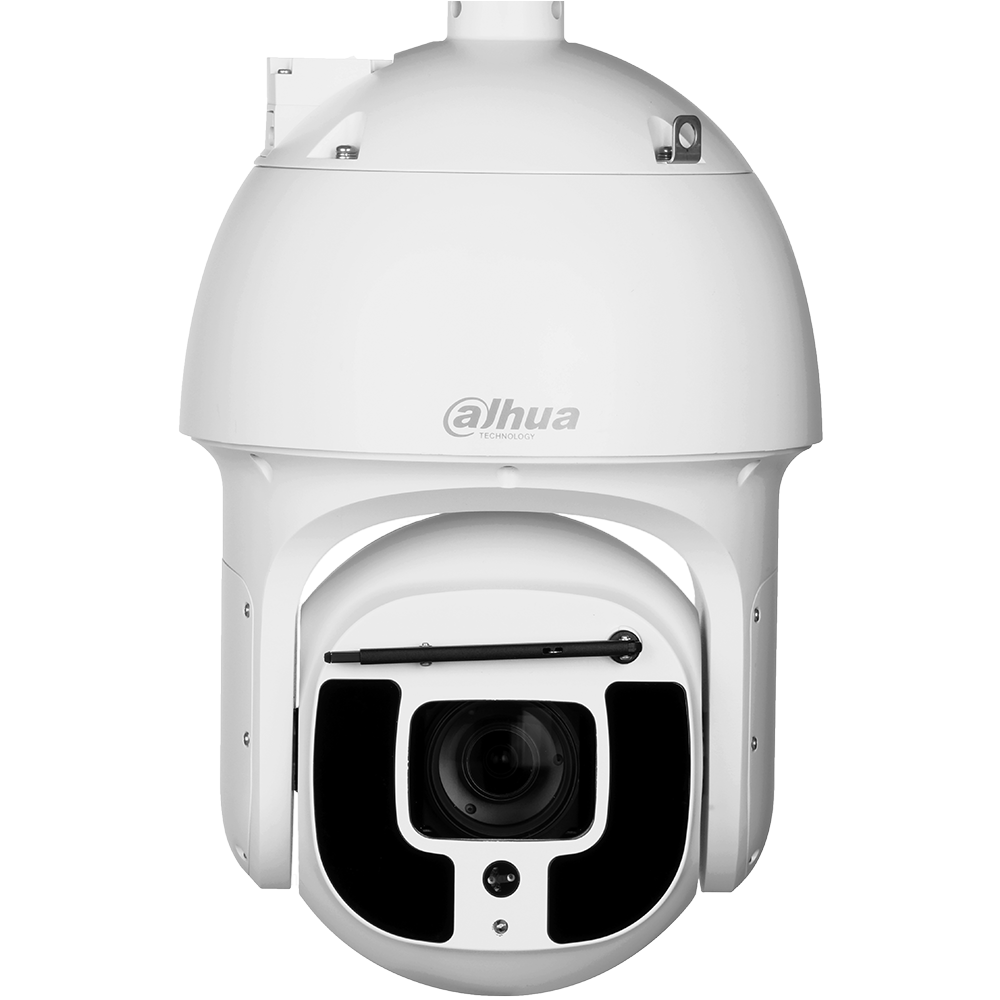

Dahua - 8A840PANF - IP 8MP 40x PTZ IR Enhanced Starlight, Ultra Series
The 4K IR PTZ Dome camera features a 1/1.8-in STARVIS CMOS imager with a 40x optical zoom lens, and provides an all in one solution for capturing long-distance video surveillance for outdoor applications. The camera offers Analytics+ functions at the edge – performing complex real-time face recognition and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features.
Features:
- 1/1.8-in. 8 MP Progressive Scan STARVIS CMOS Sensor
- Powerful 40x Optical Zoom Lens
- Smart H.265+ and Smart H.264+ Dual Codecs
- 8 MP at 30 fps Maximum Resolution
- Analytics+ Functions — Perimeter Protection, Face Detection+
- Enhanced Starlight Technology for Ultra-low Light Sensitivity
- Maximum IR Distance up to 500 m (1640 ft)
- Predictive Focus Analysis (PFA) Technology
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Integrated Smart Wiper
- Intelligent Video System with Auto-tracking
- Supports Dahua Proprietary Hi-PoE Power Source

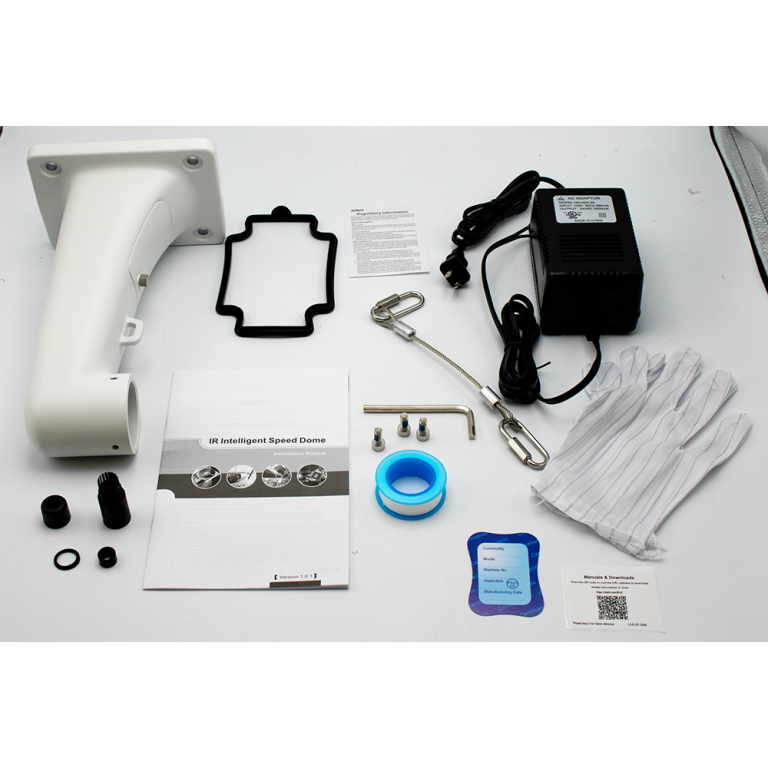

- Wall Mount and Power Adapter Included
- Five-year Warranty (for products sold through an authorized Dahau Dealer)
| Camera | |
| Image Sensor | 1/1.8-in. STARVIS CMOS |
| Effective Pixels | 3840(H) x 2160(V), 8 MP |
| RAM/ROM | 2 GB / 8 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.4 B/W: 0.0005 lux at F1.4 0 Lux with IR on |
| IR Distance | Distance up to 500.0 m (1640.42 ft) |
| IR On/Off Control | Zoom Priority, Manual, Smart IR |
| IR LEDs | 10 |
| Lens | |
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –30° to 90° Auto Flip 180° |
| Manual Control Speed | Pan: 0.1° to 240° /s Tilt: 0.1° to 100° /s |
| Preset Speed | Pan: 240° /s Tilt: 120° /s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour (up to 32 presets per tour), Auto Pan, Auto Scan |
| Speed Setup | Human-oriented focal Length/ speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
| Frame Rate | Main Stream | 8 MP, 1080p, 1.3 MP, or 720p at 30 fps |
| Sub Stream 1 | D1 or CIF at 30 fps | |
| Sub Stream 2 | 1080p, 1.3 MP, or 720p at 30 fps | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.265: 256 Kbps to 10240 Kbps H.264: 512 Kbps to 8192 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| Backlight Compensation | BLC, HLC, True WDR (120 dB) | |
| White Balance | Auto, Indoor, Outdoor, Tracking, Manual, Sodium Lamp, Natural, Street Lamp | |
| Gain Control | Auto, Iris Priority, Gain Priority, Shutter Priority, Manual | |
| Noise Reduction | 2D/3D | |
| Advanced Features | Motion Detection, Region of Interest, Defog | |
| Digital Zoom | 16x | |
| Flip | 180° | |
| Privacy Masking | Up to 24 areas (eight areas allowed in one view) | |
| Audio | |
| Compression | G.711a, G.711Mu, G.726, G722.1, G.729, MPEG2-Layer2, G.723 |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
| Interoperability | ONVIF Profile S,G,T; CGI |
| Streaming Method | Unicast / Multicast |
| Maximum User Access | 20 Users (total bandwidth 64 MB) |
| Edge Storage | Network Attached Storage (NAS), Micro SD Card Slot, 128 GB maximum |
| Web Viewer | IE7 and later, Chrome, Firefox, Safari |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
