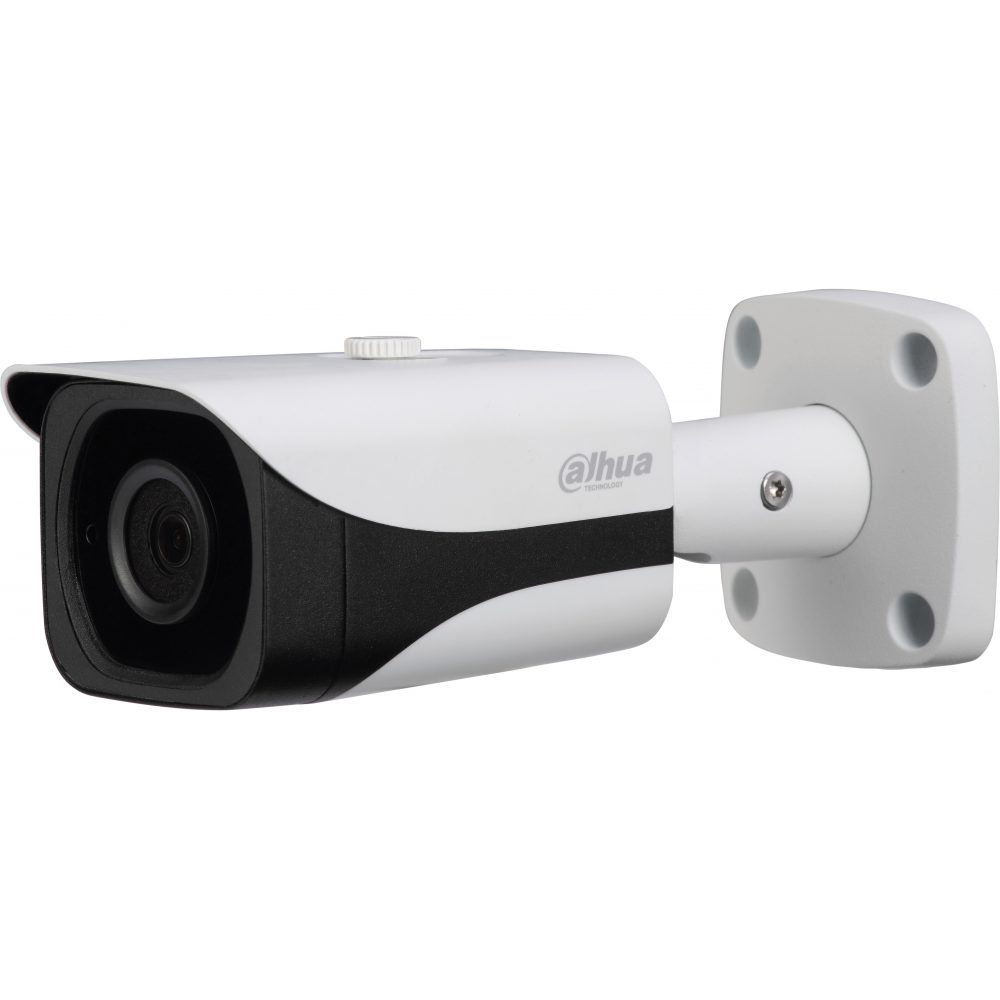

Experience the superior clarity of Full HD 1080p video while leveraging your existing coaxial infrastructure. The camera provides multiple video formats for easy integration when using competing technologies.
The camera's Smart IR technology adjusts the intensity of the camera's infrared LEDs to compensate for the distance of an object, preventing the IR LEDs from whitening out images as they come closer to the camera. This series is suitable for indoor or outdoor applications.
The outstanding performance and low price make the camera an ideal choice for small businesses that value surveillance.
Features:
- Maximum 30 fps at 1080p Resolution
- HD and SD Switchable Output
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- 3.6 mm Fixed Lens
- Maximum IR Length 40 m (130 ft) with Smart IR
- IP67 Environmental Protection
Camera
|
Image Sensor |
1/2.9-in. CMOS |
||
|
Effective Pixels |
1920(H) x 1080(V), 2 MP |
||
|
Scanning System |
Progressive |
||
|
Electronic Shutter Speed |
1/30 s to 1/100000 s |
||
|
Minimum Illumination |
0.01 Lux at F2.0 |
||
|
0 Lux with IR on |
|||
|
S/N Ratio |
More than 65 dB |
||
|
IR Distance |
Up to 40 m (130 ft) |
||
|
IR On/Off Control |
Auto, Manual |
||
|
IR LEDs |
Two (2) |
||
|
Lens |
|||
|
Lens Type |
Fixed Lens / Fixed Iris |
||
|
Mount Type |
Board-in |
||
|
Focal Length |
A21BB02: 2.8 mm |
||
|
A21BB03: 3.6 mm |
|||
|
Max Aperture |
F2.1 |
||
|
Angle of View |
A21BB02: 106° |
||
|
A21BB03: 82.8° |
|||
|
Close Focus Distance |
A21BB02: 500 m (19.7 in.) |
||
|
A21BB03: 800 m (31.5 in.) |
|||
|
Pan / Tilt / Rotation |
|||
|
Range |
Pan: 0° to 360° |
||
|
Tilt: 0° to 90° |
|||
|
Rotation: 0° to 360° |
|||
|
Video |
|||
|
Resolution |
1080p (1920 × 1080) |
||
|
Frame Rate |
1080p @ 30 fps |
||
|
720p @ 30/60 fps |
|||
|
Video Output |
One (1) BNC HDCVI High-definition Channel |
||
|
One (1) BNC CVBS, AHD or TVI Channel, switchable |
|||
|
RG-59/U Coax |
720p: 800 m (2624.67 ft) |
||
|
1080p: 500 m (1640.42 ft) |
|||
|
Video Transmission² |
RG-6/U Coax |
720p: 1200 m (3937.01 ft) |
|
|
1080p: 800 m (2624.67 ft) |
|||
|
CAT 6 UTP |
720p: 450 m (1476.38 ft) |
||
|
(balun required) |
1080p: 300 m (984.25 ft) |
||
|
Day/Night |
Auto (ICR), Manual |
||
|
OSD Menu |
Multi-language |
||
|
BLC Mode |
BLC, HLC, DWDR |
||
|
WDR |
Digital WDR |
||
|
Gain Control |
AGC |
||
|
Noise Reduction |
2D |
||
|
White Balance |
Auto, Manual |
||
|
Smart IR |
Auto, Manual |
||
Certifications
|
Safety |
EN55032, EN55024, EN50130-4 |
|
|
UL60950-1+CAN/CSA C22.2 No.60950-1 |
||
|
Electromagnetic Compatibility |
FCC CFR 47 FCC Part 15 Subpart B |
|
|
(EMC) |
ANSI C63.4-2014 |
|
|
Electrical |
||
|
Power Supply |
12 VDC ±25% |
|
|
Power Consumption |
Max 4.6 W (12 VDC with IR on) |
|
|
Environmental |
||
|
Operating Conditions |
-40° C to +60° C (-40° F to +140° F), |
|
|
Less than 95% RH |
||
|
Initiate startup above -40° C (-40° F) |
||
|
Storage Conditions |
-40° C to +60° C (-40° F to +140° F), |
|
|
Less than 95% RH |
||
|
Ingress Protection |
IP67 |
|
|
Construction |
||
|
Casing |
Aluminium |
|
|
Dimensions |
180.0 mm x 70.0 mm x 70.0 mm |
|
|
(7.09 in. x 2.76 in. x 2.70 in.) |
||
|
Net Weight |
0.35 kg (0.77 lb) |
|
|
Gross Weight |
0.44 kg (0.97 lb) |
