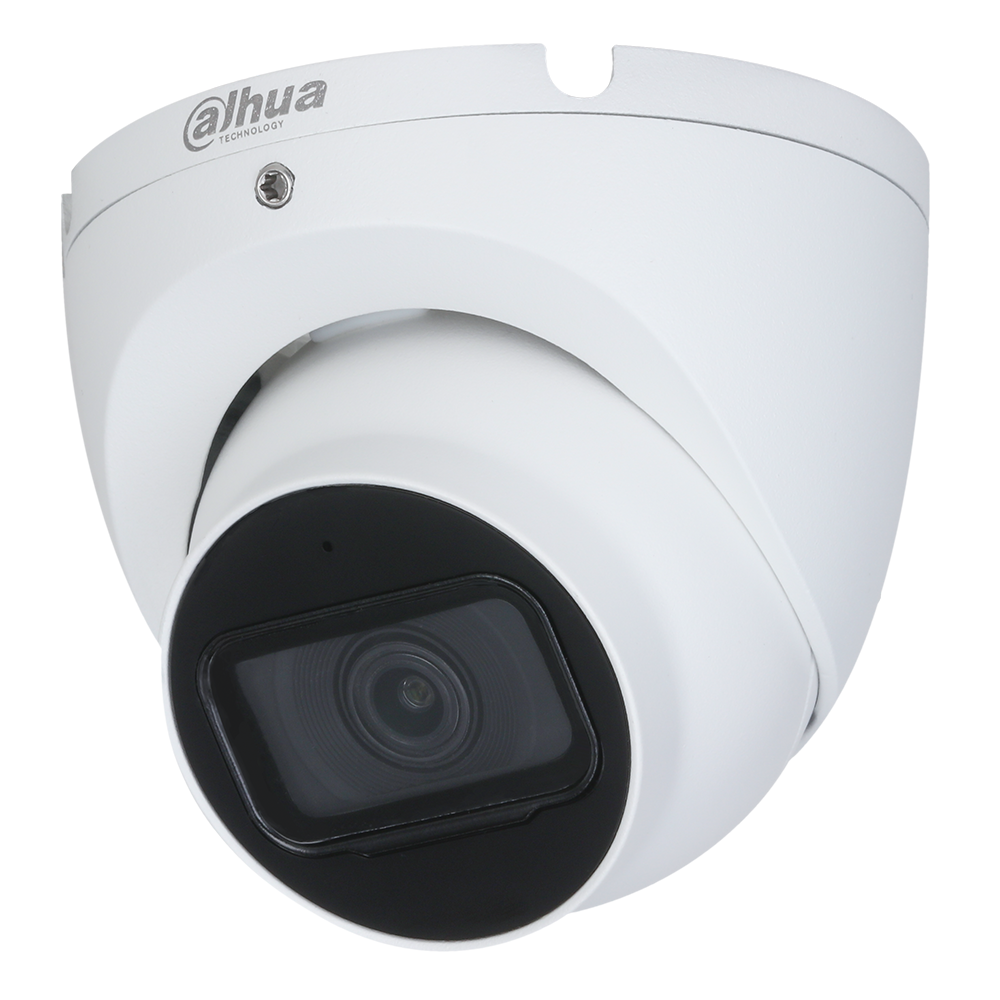

The 2MP HDCVI IR Eyeball camera leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video and broadcast-quality audio. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
Features:
- 1/2.7-in. 1080p Progressive-scan CMOS Sensor
- 2MP (1920 x 1080) at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- Maximum IR Length 30 m (98 ft), Smart IR
- IP67 Ingress Protection
- Five-year Warranty (when sold by an authorized Dahua dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.7-in. CMOS |
| Effective Pixels | 1920 (H) x 1280 (V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25 s–1/100, 000 s |
| Minimum Illumination | Color: 0.02 Lux at F1.9 (30 IRE) 0 Lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) IR Light |
| Video | |
| Lens Type | Fixed Lens / Fixed Iris |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 102°, Vertical: 54°, Diagonal: 120° |
| Close Focus Distance | 0.5 m (1.6 ft) |
| Installation Angle | |
| Range | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| Video | ||
| Resolution | 1080p (1920 × 1080); 720p (1280 × 720); 960H (960 × 480) | |
| Frame Rate | CVI: 1080p at 30 fps; 720p at 30 fps AHD: 1080p at 30 fps; 720p at 30 fps TVI: 1080p at 30 fps; 720p at 30 fps CVBS: 960H | |
| Video Output | One (1) BNC HDCVI High-definition Channel or One (1) BNC CVBS, AHD or TVI Channel, switchable | |
| Video Transmission² | RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) | |
CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) | |
| Day/Night | Auto (ICR), Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC, HLC, DWDR | |
| WDR | Digital WDR | |
| Gain Control | AGCI | |
| Noise Reduction | 2D | |
| White Balance | Auto, Manual | |
| Smart IR | Auto, Manual | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (8 Area, Rectangle) | |
| Certifications | |
| Safety | EN55032, EN55024, EN50130-4 UL60950-1+CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 |
| Electrical | |
| Power Supply | 12 VDC ±30% |
| Power Consumption | Maximum 2.9 W (12 VDC with IR on) |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 90% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), Less than 90% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | φ94.0 mm × 85.7 mm (φ3.70 in. x 3.37 in.) |
| Net Weight | 0.33 kg (0.73 lb) |
| Gross Weight | 0.47 kg (1.04 lb) |
