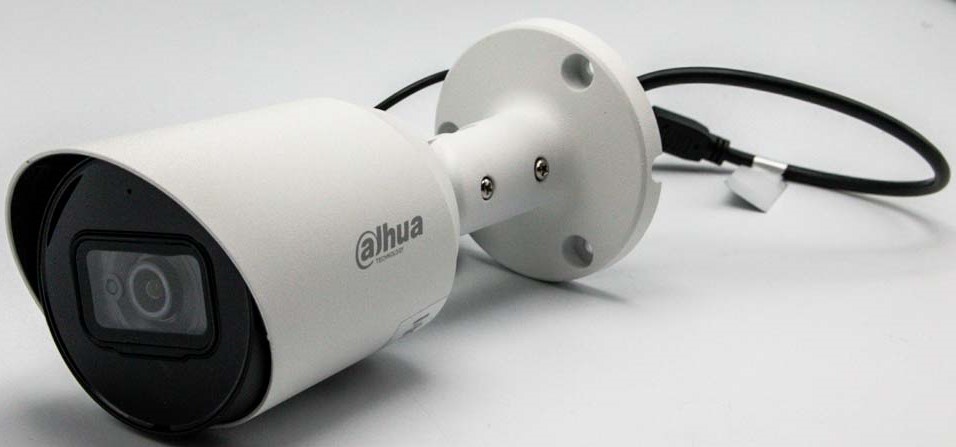

Dahua - A21CF02 - 2MP IR 2.8 mm HDCVI Bullet Camera
This product has been discontinued.
Part number:
A21CF02
Price:
Experience the superior clarity of Dahua’s 2 MP HDCVI cameras for vast coverage and superior image details. The 2 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses a progressive-scan CMOS sensor and next-generation ISP chip technology developed by Dahua to deliver stunning video with a wide field of view. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
Features:
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 1080p at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Multi-format Output (HDCVI, CVBS, AHD, and TVI)
- Starlight Technology for Low-light Applications
- HD and SD Output, Switchable
- Maximum IR Length 30 m (98 ft), Smart IR
- Built-in Microphone
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | ||
| Camera | ||
| Image Sensor | 1/2.8-in. CMOS | |
| Effective Pixels | 1920(H) x 1080(V), 2 MP | |
| Scanning System | Progressive | |
| Minimum Illumination | Color: 0.005 lux at F1.6 (30 IRE) | |
| 0 lux with IR on | ||
| S/N Ratio | ||
| IR Distance | Up to 30.0 m (98.43 ft) | |
| IR On/Off Control | Auto, Manual | |
| IR LEDs | One (1) | |
| Lens | ||
| Lens Type | Fixed lens, Fixed iris | |
| Mount Type | Board-in | |
| Focal Length | 2.8 mm | |
| Max Aperture | F1.6 | |
| Horizontal Angle of View | 106.0° | |
| Close Focus Distance | 600.0 mm (23.60 in.) | |
| DORI² Distance | ||
| Detect | Observe | Recognize |
| (8 ppf) | (19 ppf) | (38 ppf) |
| 39 m (127 ft) | 15 m (51 ft) | |
| Installation Angle | ||
| Range | Pan: 0° to 360° | |
| Tilt: 0° to 90° | ||
| Rotation: 0° to 360° | ||
| Video | |
| Resolution | 1080p (1920 x 1080) |
| Frame Rate | 1080p at 30 fps |
| 720p at 30/60 fps | |

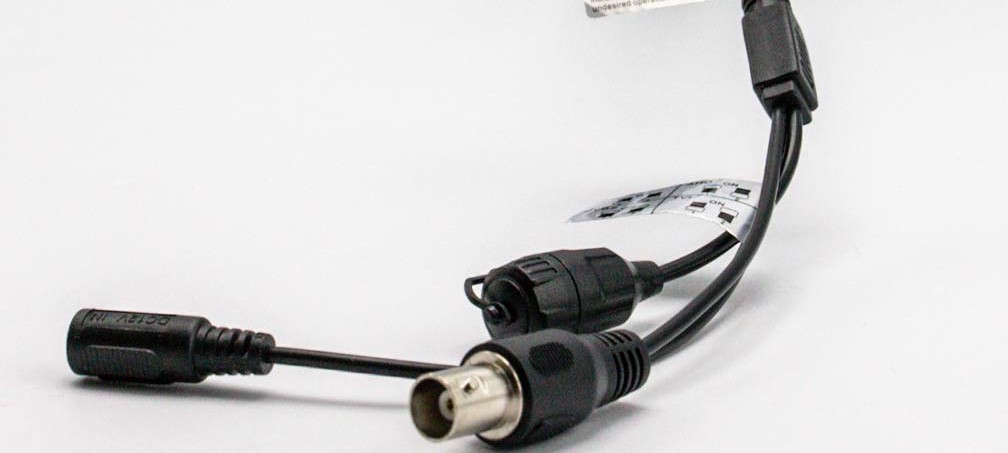

| Video Output | |
| One (1) BNC CVBS, AHD or TVI Channel, switchable | |
| RG-59/U Coax | |
| 1080p: 500 m (1640.42 ft) | |
| Video Transmission³ | |
| 1080p: 800 m (2624.67 ft) | |
| CAT 6 UTP | |
| (balun required) | 1080p: 300 m (984.25 ft) |
| Day/Night | Auto (ICR), Manual |
| On-screen Display Menu | Multi-language |
| (Chinese, English, French, German, Italian, Japanese, | |
| Korean, Polish, Portuguese, Russian, and Spanish) | |
| BLC Mode | BLC, HLC, DWDR |
| WDR | Digital WDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto, Manual |
| Smart IR | Auto, Manual |
| Certifications | |
| Safety | UL60950-1+CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility | FCC CFR 47 Part 15 Subpart B |
| ANSI C63.4-2014 | |
| (EMC) | |
| EN55032, EN55024, EN50130-4 | |
| Interface | |
| Audio | Built-in Microphone⁴ |
| Electrical | |
| Power Supply | 12 VDC ±30% |
| Power Consumption | 3.7 W Maximum (12 VDC, IR on) |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), |
| Less than 90% RH | |
| Initiate startup above –40° C (–40° F) | |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), |
| Less than 90% RH | |
| Ingress Protection | |
| Construction | |
| Casing | Aluminium |
| Dimensions | 176.10 mm x 72.40 mm x 72.40 mm |
| (6.93 in. x 2.85 in. x 2.85 in.) | |
| Net Weight | |
| Gross Weight | 0.48 kg (1.06 lb) |
Name
Description
Size
Downloads
File
Data Sheet
1.1mb
File

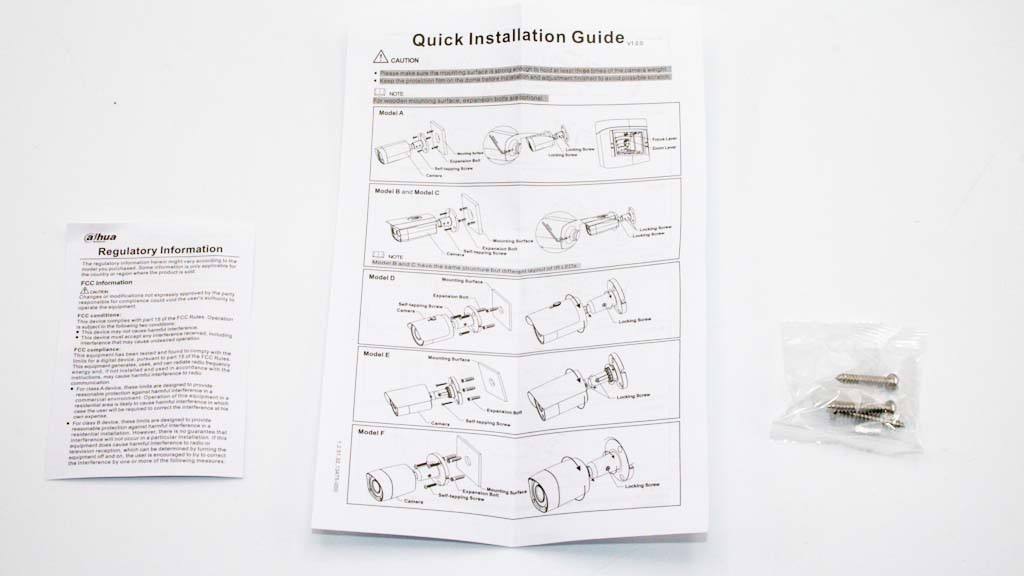

Quick Installation Guide
