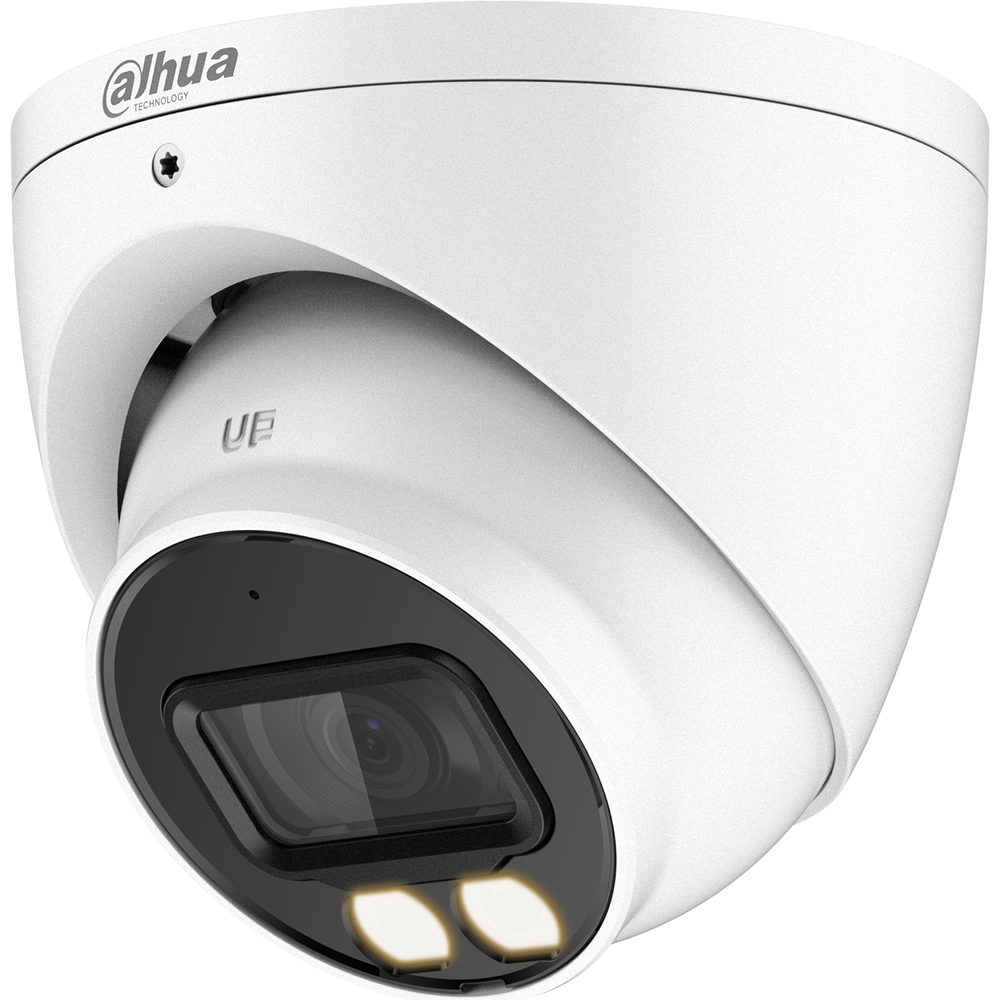

Dahua - A22CJN2 - 2MP Enhanced Night Color HDCVI Eyeball Camera (2.8 mm)
Part number:
A22CJN2
Price:
Experience the superior clarity of Dahua’s 2MP HDCVI camera for vast coverage and superior image details. The 2MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 2.8 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Enhanced Night Color and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/2.8 in. Progressive-scan 2MP CMOS Sensor
- 2MP (1920 x 1080) at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Enhanced Night Color Technology with White-light LEDs for Color Images in Total Darkness
- True Wide Dynamic Range (120 dB) and 3D Noise Reduction
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Built-in Microphone
- IP67 Ingress Protection
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.8-in. 8MP CMOS Sensor |
| Effective Pixels | 1920 (H) x 1080 (V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/4 s to 1/100,000 s |
| S/N Ratio | > 65 dB |
| Illumination Distance | Up to 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto, Manual |
| Illuminator Number | Two (2) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Angle of View | Horizontal: 106° Vertical: 55° Diagonal: 125° |
| Iris Type | Fixed |
| Close Focus Distance | 2.0 m (6.56 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation Range | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| Video | |
| Resolution Output | 1080p (1920 x 1080), 960H (960 x 480) |
| Frame Rate | 1080p at 30 fps |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable |
| BLC Mode | BLC, HLC, WDR, HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D NR |
| Smart Light | Yes |
| Mirror | On, Off |
| Privacy Masking | On, Off (8 area, rectangle) |
| Interface | |
| Audio Input | One (1) Built-in Microphone |
| Certifications | |
| CE | EN55032, EN61000, EN55024, EN55035, EN50130, EN62368 |
| Safety | UL62368-1 CAN/CSA C22.2 No.62368-1-14 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 |
| Electrical | |
| Power Supply | 12VDC ±30% |
| Power Consumption | Maximum 6.9 W (12V DC, with white light on) |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH (non-condensation) |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Camera Dimensions | φ106.0 mm × 93.6 mm (φ4.17" × 3.69") |
| Net Weight | 0.48 kg (1.06 lb) |
| Gross Weight | 0.63 kg (1.39 lb) |
