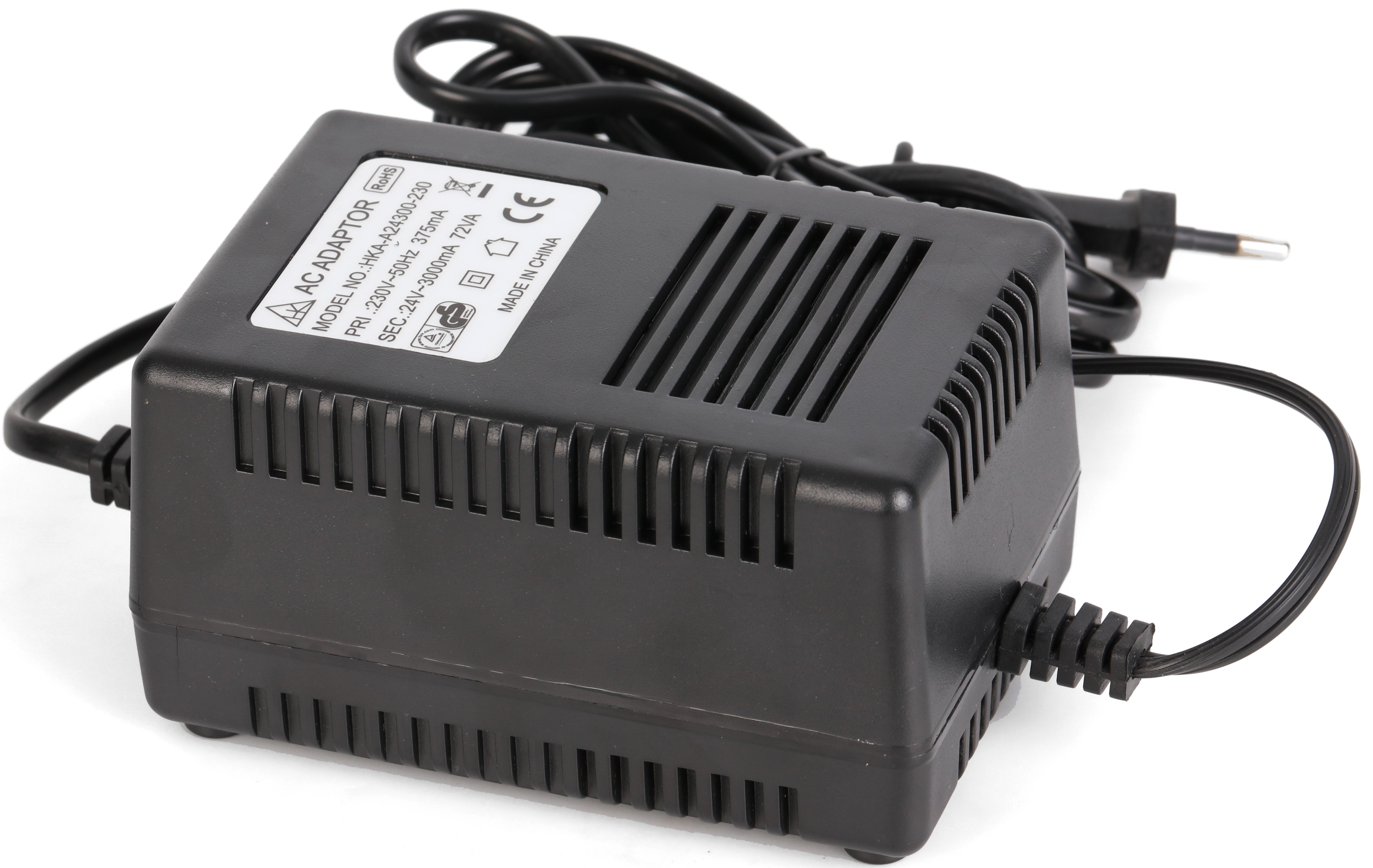

Dahua - A24-3A - 24 VAC, 3 A Power Adapter
Part number:
A24-3A
Price:
24 VAC 3 A Power Adapter
Features :
- 120 VAC, 60 Hz Input; 24 VAC, 3 A Output
- CE, UL, SAA Certifications
| Technical Specifications | |
| Electrical | |
| Input | 120 VAC, 60 Hz |
| Output | 24 VAC (±5%), 3000 mA |
| Environmental | |
| Operating Temperature | –10 °C to +40° F (14 °F to 104 °F) |
| Storage Temperature | –5 °C to +60° F (23 °F to 140 °F) |
| Operating Humidity | 30% to 85%, Relative |
| Physical Properties | |
| Weight | 1645 g (3.63 lb) |
| Dimensions (L x W x H) | 120.0 mm x 80.0 mm x 65.0 mm (4.72 in. x 3.15 in. x 2.56 in.) |
| Installation Mode | Plane Installation |
| Color | Black |
| Input Plug | 2-pin North American Plug |
| Cord Lengths | Input: 1 m (3.28 ft) Output: AWG18 x 2C; 1.83 m (6.0 ft) |
| Certifications | |
| Safety | CE, UL, SAA |
