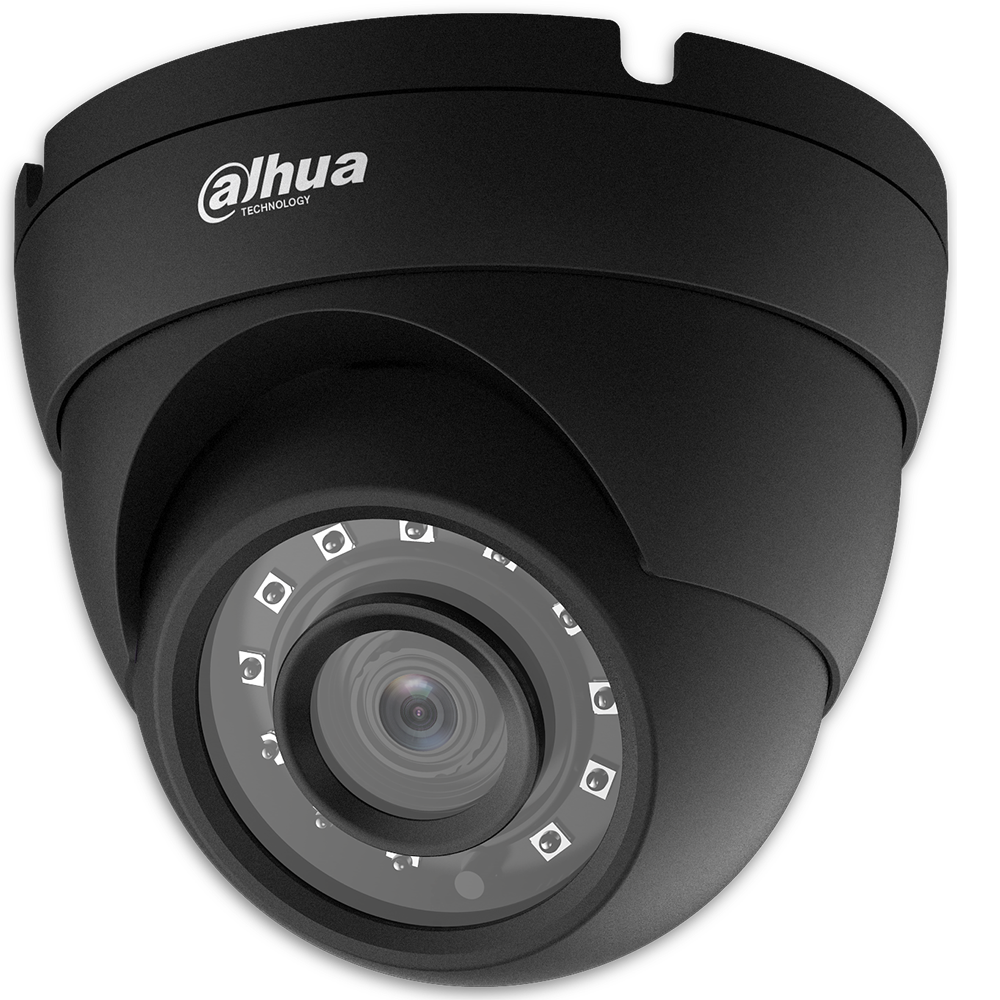

Dahua - A511K02-B - 5MP IR 2.8mm HDCVI Eyeball (Black)
Part number:
A511K02-B
Price:
Experience the superior clarity of Dahua’s 5 MP HDCVI cameras for vast coverage and superior image details. The 5 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera uses a progressive-scan CMOS sensor and next-generation ISP chip technology developed by Dahua to deliver stunning video with a wide field of view. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
Features:
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- 5 MP at 20 fps Maximum Resolution
- 2.8 mm Fixed Lens
- HD or SD Output, Switchable
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Maximum IR Length 30 m (98 ft), Smart IR
- Designed for Extreme Temperature Environments
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Image Sensor | 1/2.7-in. CMOS |
| Effective Pixels | 2592 (H) x 1944 (V), 5 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100000 s |
| Minimum Illumination | Color: 0.02 Lux at F1.85 (30 IRE) |
| 0 Lux with IR on | |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30 m (98.04 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | 12 |
| Lens | |
| Lens Type | Fixed Lens / Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 2.8 mm |
| Max Aperture | F1.85 |
| Horizontal Angle of View | 103° |
| Close Focus Distance | 900 mm (35.43 in.) |
| DORI¹ Distance | |
| Detect | Observe |
| (8 ppf) | (19 ppf) |
| 63 m (207 ft) | 25 m (82 ft) |
| Installation Angle | |
| Range | Pan: 0° to 360° |
| Tilt: 0° to 90° | |
| Rotation: 0° to 360° |
| Resolution | 5 MP (2592 x 1944) | |
| Frame Rate | 5 MP at 20 fps, | |
| 4 MP at 30 fps, | ||
| 1080p at 30 fps | ||
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal | |
| or CVBS, AHD or TVI Channel, switchable | ||
| 720p: 800 m (2624.67 ft) | ||
| RG-59/U Coax | 1080p: 500 m (1640.42 ft) | |
| 4 MP: 500 m (1640.42 ft) | ||
| Video Transmission² | 720p: 1200 m (3937.01 ft) | |
| RG-6/U Coax | 1080p: 800 m (2624.67 ft) | |
| 4 MP: 700 m (2296.59 ft) | ||
| CAT 6 UTP | 720p: 450 m (1476.38 ft) | |
| 1080p: 300 m (984.25 ft) | ||
| (balun required) | ||
| 4 MP: 300 m (984.25 ft) | ||
| Day/Night | Auto (ICR), Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC, HLC, DWDR | |
| WDR | Digital WDR | |
| Gain Control | AGC | |
| Noise Reduction | 2D | |
| White Balance | Auto, Manual | |
| Smart IR | Auto, Manual | |
| Certifications | ||
| Safety | EN55032, EN55024, EN50130-4 | |
| UL60950-1+CAN/CSA C22.2 No.60950-1 | ||
| Electromagnetic Compatibility | FCC CFR 47 FCC Part 15 Subpart B | |
| (EMC) | ANSI C63.4-2014 | |
| Electrical | ||
| Power Supply | 12 VDC ±30% | |
| Power Consumption | Maximum 3.6 W (12 VDC with IR on) | |
| Environmental | ||
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), | |
| Less than 95% RH | ||
| Initiate startup above –40° C (–40° F) | ||
| Storage Conditions | ––40° C to +60° C (–40° F to +140° F), | |
| Less than 95% RH | ||
| Ingress Protection | IP67 | |
| Construction | ||
| Casing | Aluminium | |
| Dimensions | ø93.40 mm × 79.40 mm (ø3.68 in. x 3.13 in.) | |
| Net Weight | 0.28 kg (0.62 lb) | |
| Gross Weight | 0.38 kg (0.84 lb) | |
