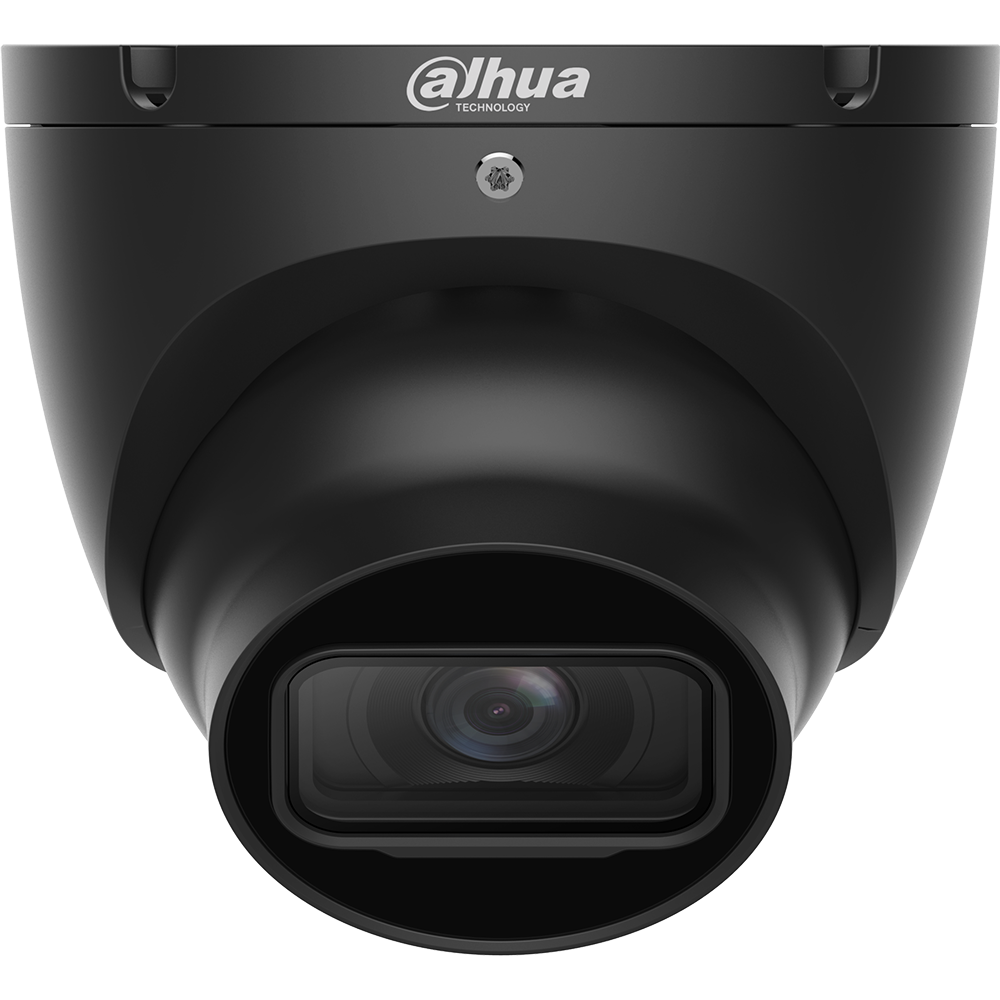

Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.
Features:
- 1/2.7-in. 5MP Progressive-scan CMOS Sensor
- 5MP (2880 x 1620) at 25 fps Maximum Resolution
- 16:9 Aspect Ratio for no Image Stretching
- 2.8 mm Fixed Lens
- HDCVI, AHD, TVI, or CVBS Output, Switchable
- Maximum IR Length 30 m (98.43 ft), Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/2.7-in. CMOS Sensor |
| Effective Pixels | 2880 (H) x 1620 (V), 5MP |
| Aspect Ratio¹ | 16:9 |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/30 s to 1/100,000 s |
| Minimum Illumination | Color: 0.01 lux at F1.6, 30 IRE 0 lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Angle of View | Horizontal: 111° Vertical: 58° Diagonal: 132° |
| Close Focus Distance | 900.0 mm (35.43 in.) |
| Video | |||
| Resolution | 5MP (2880 x 1620), 4MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 480) | ||
Maximum Frame Rate | HDCVI | 5MP at 25 fps, 4MP at 30 fps, 1080p at 30 fps | |
| AHD | 4MP at 30 fps | ||
| TVI | 4MP at 30 fps | ||
| CVBS | 960H | ||

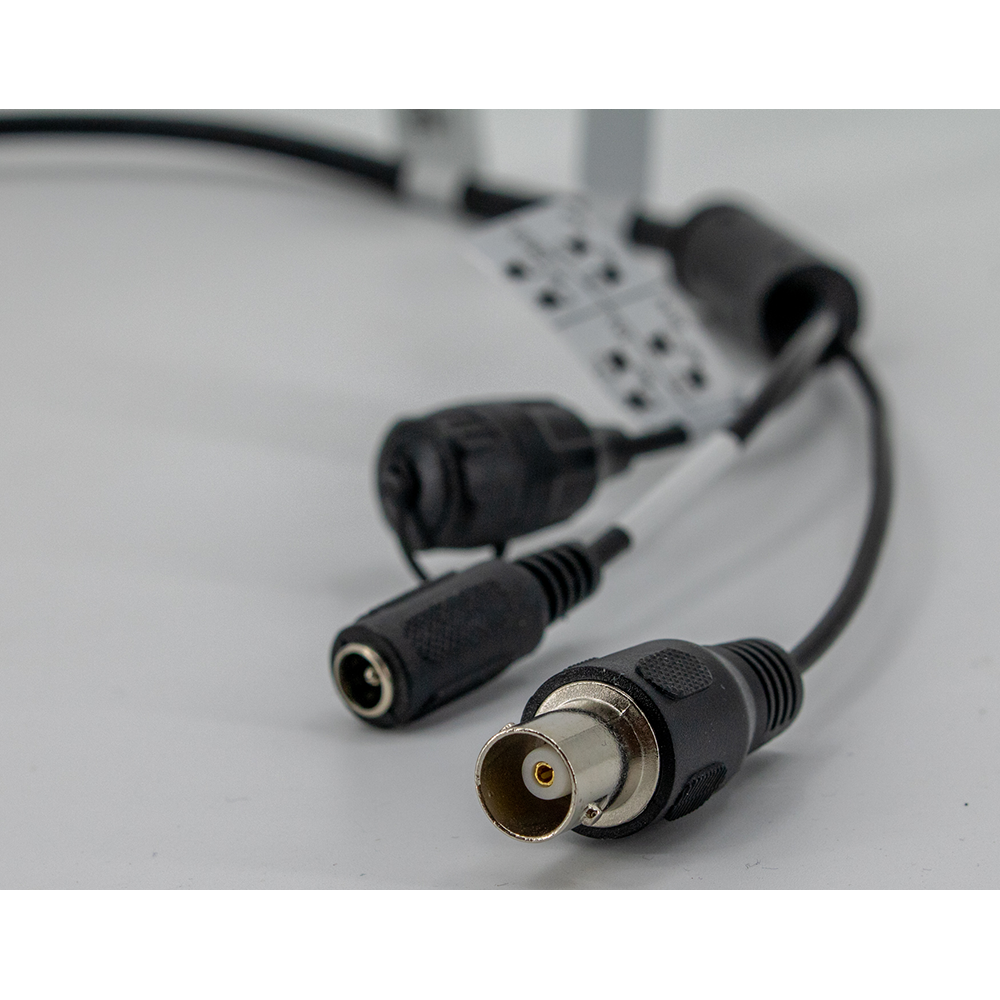

| Video Output | One (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable | ||
Video Transmission³ | RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 5MP: 500 m (1640.42 ft) | |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 5MP: 700 m (2296.59 ft) | ||
CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 5MP: 300 m (984.25 ft) | ||
| Day/Night | Auto (ICR) | ||
| OSD Menu | Multi-language | ||
| BLC Mode | BLC, HLC, DWDR | ||
| WDR | Digital WDR | ||
| Gain Control | Auto, Manual | ||
| Noise Reduction | 2D NR | ||
| White Balance | Auto, Manual | ||
| Smart IR | Auto, Manual | ||
| Certifications | |
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014, EN55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130-4:2011+A1:2014, EN 62368-1:2014+A11:2017 |
| Electrical | |
| Power Supply | 12 VDC ± 30% |
| Power Consumption | Maximum 3.2 W (12 VDC, IR on) |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Construction |
| Casing | Metal |
| Dimensions | ø94.0 mm x 85.60 mm (ø3.70 in. x 3.37 in.) |
| Net Weight | 0.31 kg (0.68 lb) |
| Gross Weight | 0.44 kg (0.97 lb) |
