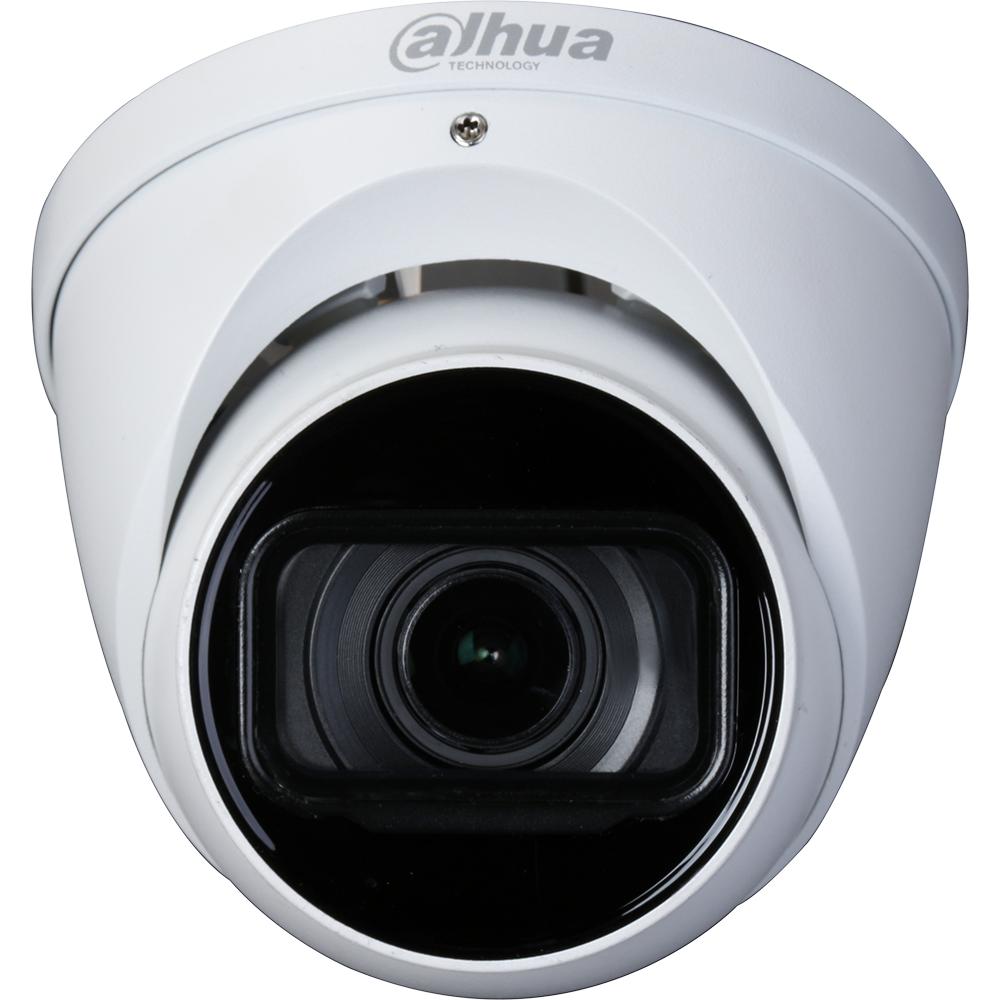

Dahua - A52BJAZ - 5MP HDCVI IR Eyeball 2.7-13.5mm Multi-format Wide Starlight
Part number:
A52BJAZ
Price:

Experience the superior clarity of Dahua’s 5MP HDCVI cameras for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The HDCVI camera offers multiple output formats that are easily switchable and a 16:9 aspect ratio. With a 16:9 format, images maintain a true, undistorted view without stretching, a feature not found on many 5MP HD over coax cameras. The camera is suitable for most applications, offering IR illumination for difficult lighting conditions, input voltage tolerance for inconsistent power supplies, and IP67 certification for operation in harsh outdoor environmental conditions.



Features:

  • 1/2.7-in. 5MP Progressive-scan CMOS Sensor
  • 5MP (2880 x 1620) at 25 fps Maximum Resolution
  • 2.7 mm to 13.5 mm Motorized Vari-focal Lens
  • 16:9 Aspect Ratio for no Image Stretching
  • Starlight Technology for Low-light Applications
  • True Wide Dynamic Range (120 dB) and 3D Noise Reduction
  • HDCVI, AHD, TVI, or CVBS Output, Switchable
  • Maximum IR Length 60 m (196.85 ft), Smart IR
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
Technical Specification
Camera
Image Sensor1/2.7-in. CMOS Sensor
Effective Pixels2880 (H) x 1620 (V), 5 MP
Aspect Ratio¹16:9
Scanning SystemProgressive
Electronic Shutter Speed1/4 s to 1/100,000 s
Minimum IlluminationColor: 0.001 lux at F1.6, 30 IRE 0 lux with IR on
S/N RatioMore than 65 dB
IR DistanceUp to 60.0 m (196.85 ft)
IR On/Off ControlAuto, Manual
IR LEDsTwo (2)
Lens
Lens TypeMotorized Vari-focal
Mount Typeø14
Focal Length2.7 mm to 13.5 mm
Maximum ApertureF1.6
Angle of View

Horizontal: 31.4° to 113.0°

Vertical: 17.6° to 58.0°

Diagonal: 36° to 138.0°

Iris TypeFixed
Close Focus Distance800 mm (31.50 in.)
Installation Angle
Range

Pan: 0° to 355°

Tilt: 0° to 75°

Rotation: 0° to 355°


DORI Distances²
 Detect (8 ppf)Observe (19 ppf)Recognize (38 ppf)Identify (76 ppf)
Tele

64.0 m

(210.0 ft)

25.60 m (84.0 ft)12.80 m (42.0 ft)6.40 m (21.0 ft)
Wide

210.0 m

(689.0 ft)

84.0 m (275.59 ft)42.0 m (137.80 ft)21.0 m (68.90)
Video
Resolution Output

5 MP (2880 x 1620), 4 MP (2560 x 1440),

1080p (1920 x 1080), 720p (1280 x 720),

960H (960 x 480), D1 (704 x 480), CIF (352 x 240)

Maximum

Frame

Rate

HDCVI5 MP at 25 fps, 4 MP at 30 fps, 1080p at 30 fps
AHD4 MP at 30 fps
TVI4 MP at 30 fps
CVBS960H at 30 fps
Video OutputOne (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable

Video

Transmission³

RG-59/U Coax

720p: 800 m (2624.67 ft)

1080p: 500 m (1640.42 ft) 5 MP: 500 m (1640.42 ft)

RG-6/U Coax

720p: 1200 m (3937.01 ft)

1080p: 800 m (2624.67 ft)

5 MP: 700 m (2296.59 ft)

CAT 6 UTP

(balun required)

720p: 450 m (1476.38 ft)

1080p: 300 m (984.25 ft)

5 MP: 300 m (984.25 ft)

Day/Night Auto (ICR)
OSD Menu Multi-language
BLC Mode BLC, HLC, HLC-Pro, True WDR
WDR 120 dB
Gain Control Auto, Manual
Noise Reduction 3D NR
White Balance Auto, Manual
Advanced Features Smart IR, Mirror
Privacy Masking Off, On (8 Areas, rectangular)
Certifications
CE

EN55032:2015, EN 61000-3-2:2014,

EN 61000-3-3:2013, EN55024:2010+A1:2015,

EN 55035:2017, EN50130-4:2011+A1:2014,

Safety

UL60950-1

EN 62368-1:2014+A11:2017

CAN/CSA C22.2 No.60950-1

Electromagnetic Compatibility (EMC)CFR 47 FCC Part 15 subpart B ANSI C63.4-2014
Interface
AudioOne (1) Built-in Microphone
Electrical
Power Supply24 VAC ±25% or 12 VDC ±10%
Power ConsumptionMaximum 9.5 W (12 VDC, IR on)
Environmental
Operating Conditions

–30° C to +60° C (–22° F to +140° F)

Less than 95% RH, non condensing

Storage Conditions

–30° C to +60° C (–22° F to +140° F)

Less than 95% RH, non condensing

Ingress ProtectionIP67
Construction
CasingMetal
Dimensions

ø122.0 mm x 104.80 mm

(ø4.80 in. x 4.13 in.)

Net Weight0.63 kg (1.40 lb)
Gross Weight0.79 kg (1.70 lb)
