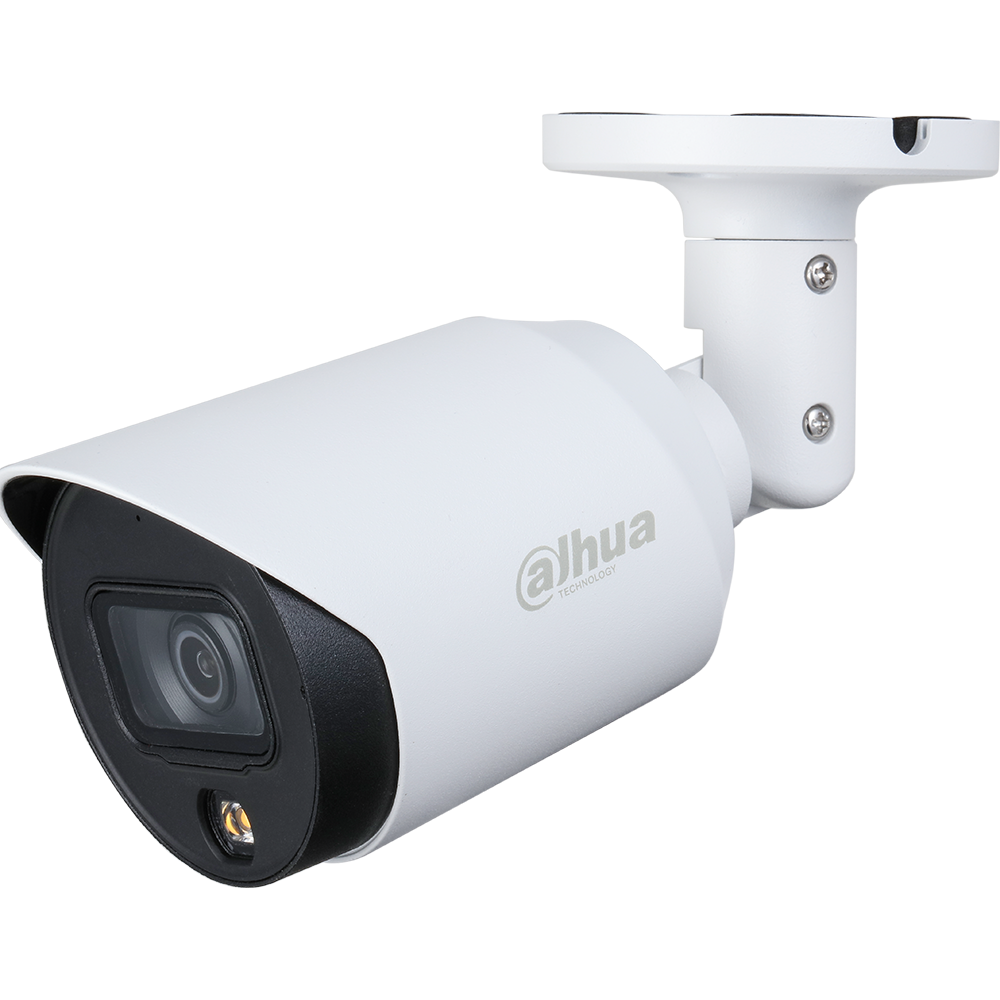

Dahua - A52CF62 - 5MP Enhanced Night Color HDCVI Bullet Camera (2.8 mm)
Part number:
A52CF62
Price:

Experience the superior clarity of Dahua’s 5MP HDCVI Enhanced Night Color camera for vast coverage and superior image details. The 5MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 2.8 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Night Color and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.



Dahua cameras with Night Color Technology incorporate a high-performance sensor and a large aperture lens to produce crisp, clear color images in low light environments. This light-sensitive technology allows the camera to capture more available light and reproduce color images with superior detail and contrast. The Night Color camera incorporates white-light LEDs to offer full-color images in total darkness, as well as an effective visual deterrent. This technology automatically activates the white-light illuminators when a human enters a defined detection area within the scene to capture full-color details.



Features:

  • 1/2.7-in. Progressive-scan 5MP CMOS Sensor
  • 5MP (2880 x 1620) at 25 fps Maximum Resolution
  • 16:9 Aspect Ratio for no Image Stretching
  • 2.8 mm Fixed Lens
  • Enhanced Night Color Technology with White-light LEDs for Color Images in Total Darkness
  • True Wide Dynamic Range (120 dB) and 3D Noise Reduction
  • ArcticPro Series Camera — Operational down to –40° C (–40° F)
  • Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
  • Built-in Microphone
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
Technical Specification
Camera
Image Sensor1/2.7-in. CMOS Sensor
Effective Pixels2880 (H) x 1620 (V), 5 MP
Scanning SystemProgressive
Electronic Shutter Speed1/4 s to 1/100,000 s
Minimum IlluminationColor: 0.001 lux at F1.0
S/N RatioMore than 65 dB
Illuminator TypeWhite-light
Illuminator Distance20.0 m (65.61 ft)
Illuminator ControlAuto, Manual
Illuminator LEDOne (1)
Lens
Lens TypeFixed Lens
Mount TypeM12
Focal Length2.8 mm
Maximum ApertureF1.0
Angle of View

Horizontal: 112°

Vertical: 57°

Diagonal: 132°

Iris TypeFixed
Close Focus Distance1600.0 mm (63.0 in.)
Video
Resolution

5 MP (2880 x 1620), 4 MP (2560 x 1440),

1080p (1920 x 1080), 960H (960 x 480)

Frame Rate5 MP at 25 fps
Video OutputOne (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable
Video Transmission³RG-59/U Coax

720p: 800 m (2624.67 ft)

1080p: 500 m (1640.42 ft)

4 MP: 500 m (1640.42 ft)

RG-6/U Coax

720p: 1200 m (3937.01 ft)

1080p: 800 m (2624.67 ft)

4 MP: 700 m (2296.59 ft)

CAT 6 UTP

(balun required)

720p: 450 m (1476.38 ft)

1080p: 300 m (984.25 ft)

4 MP: 300 m (984.25 ft)

Day/Night Color
OSD Menu Multi-language
BLC Mode BLC, HLC, HLC-Pro, True WDR
WDR 120 dB
Noise Reduction 3D NR
White Balance Auto, Manual
Gain Control Auto, Manual
Mirror On, Off
Privacy Masking On, Off (8 areas, rectangular)
Electrical
Power Supply12 VDC ± 30%
Power Consumption

Maximum 4.4 W

(12 VDC with Illuminator on)

Environmental
Operating Conditions

–40° C to +60° C (–40° F to +140° F)

Less than 95% RH

Storage Conditions

–40° C to +60° C (–40° F to +140° F)

Less than 95% RH

Ingress Protection IP67
Certifications
CEEN55032, EN55024, EN50130-4,  EN60950-1
Safety

UL60950-1

CAN/CSA C22.2 No.60950-1

Electromagnetic Compatibility (EMC)CFR 47 FCC Part 15 subpart B, ANSI C63.4-2014
Construction
CasingMetal
Dimensions

174.50 x 72.30 mm x mm x 70.60 mm

(6.87 in. x 2.85 in. x 2.78 in.)

Net Weight0.34 kg (0.75 lb)
Gross Weight0.45 kg (0.99 lb)
