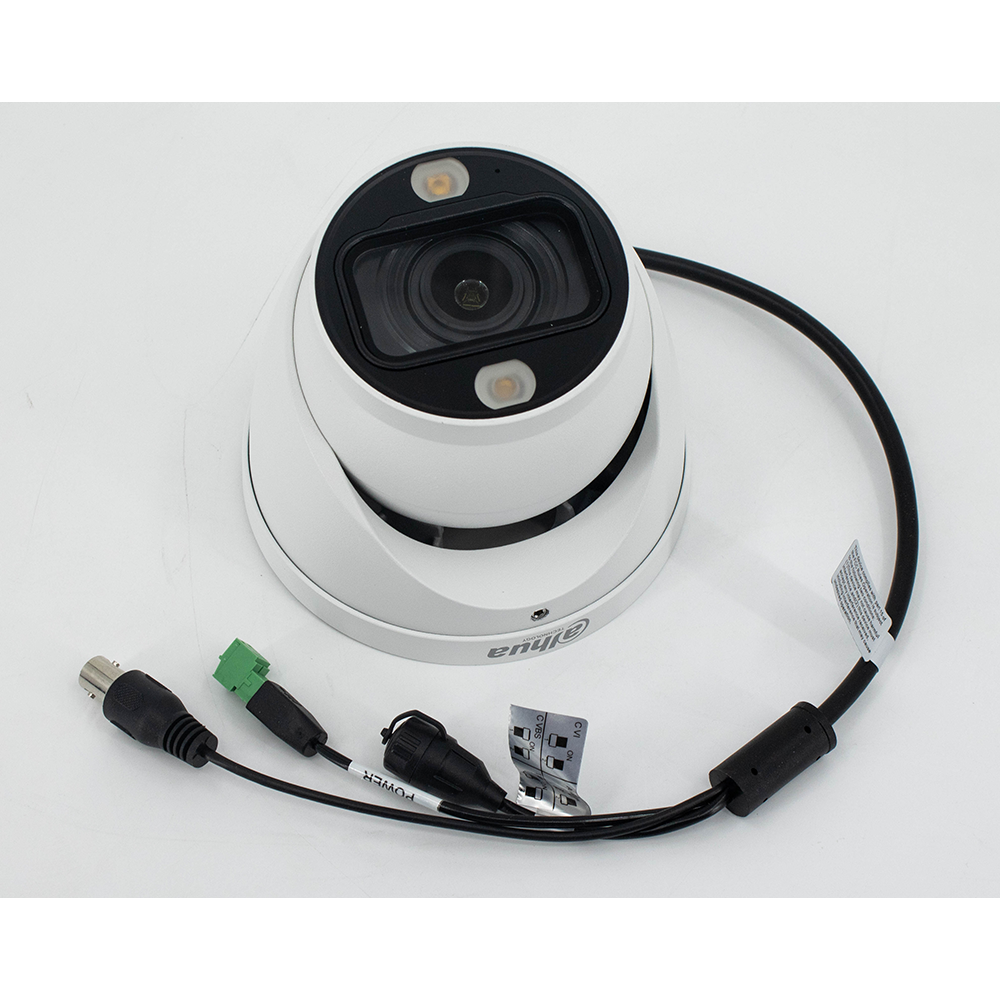

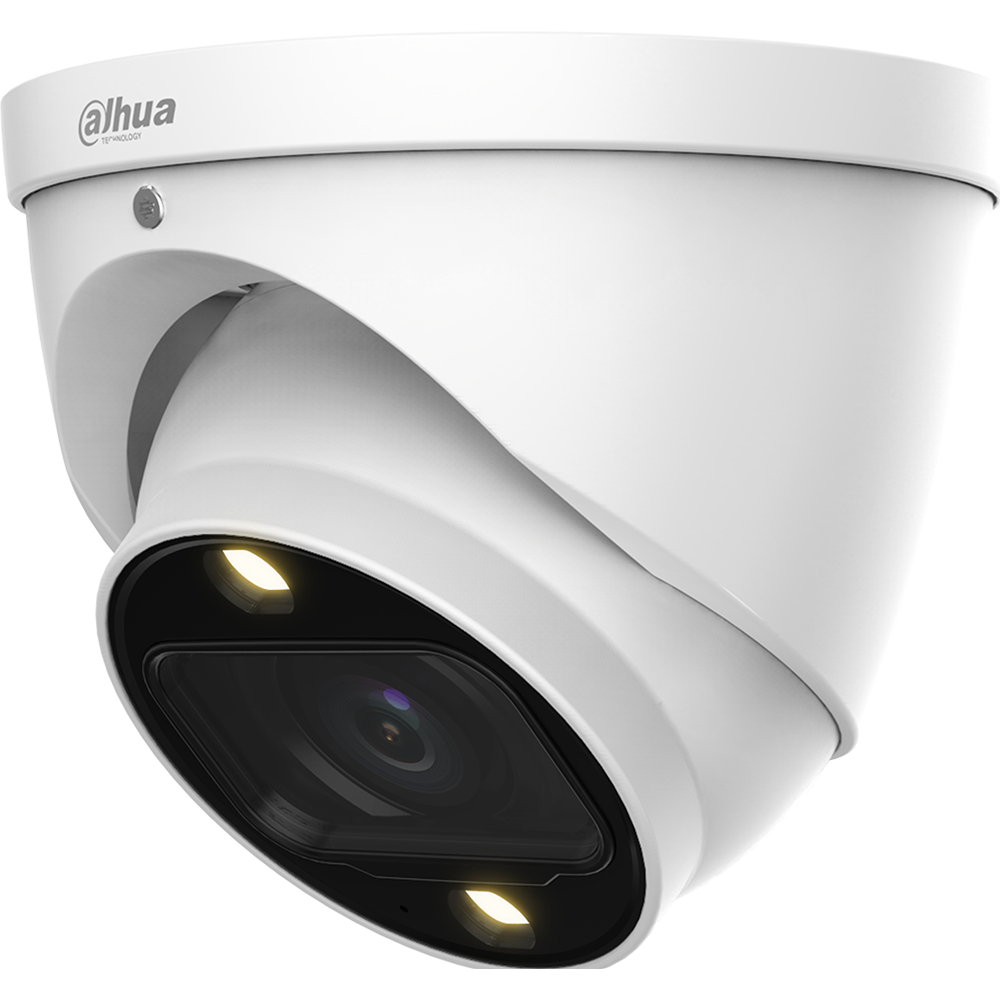

Experience the superior clarity of Dahua’s 5 MP HDCVI eyeball camera for vast coverage and superior image details. The 5 MP HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 2.8 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Night Color and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
Technical Specification | |
Camera | |
Image Sensor | 1/2.7-in. CMOS Sensor |
Effective Pixels | 2880 (H) x 1620 (V), 5 MP |
Scanning System | Progressive |
Electronic Shutter Speed | 1/4 s to 1/100,000 s |
Minimum Illumination | Color: 0.001 lux at F1.2 |
S/N Ratio | More than 65 dB |
Illuminator Type | White-light |
Illuminator Distance | 40.0 m (131.23 ft) |
Illuminator Control | Auto, Manual |
Illuminator LED | Two (2) |
Lens |
Lens Type | Motorized Vari-focal |
Mount Type | ø14 |
Focal Length | 2.7 mm to 13.5 mm |
Maximum Aperture | F1.2 |
Angle of View | Horizontal: 35° to 112° Vertical: 19° to 57° Diagonal: 40° to 137° |
Iris Type | Fixed |
Close Focus Distance | 1500.0 mm (59.06 in.) |
Video |
Resolution | 5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 480) | |
Frame Rate | 5 MP at 25 fps | |
Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, switchable | |
Video Transmission³ | RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4 MP: 500 m (1640.42 ft) |
RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4 MP: 700 m (2296.59 ft) | |
CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4 MP: 300 m (984.25 ft) | |
Day/Night | Color | |
OSD Menu | Multi-language | |
BLC Mode | BLC, HLC, HLC-Pro, True WDR | |
WDR | 120 dB | |
Noise Reduction | 3D NR | |
White Balance | Auto, Manual | |
Gain Control | Auto, Manual | |
Mirror | On, Off | |
Privacy Masking | On, Off (8 areas, rectangular) | |
Electrical |
Power Supply | 12 VDC ±10% or 24 VAC ±25% |
Power Consumption | Maximum 9.9 W (12 VDC with Illuminator on) |
