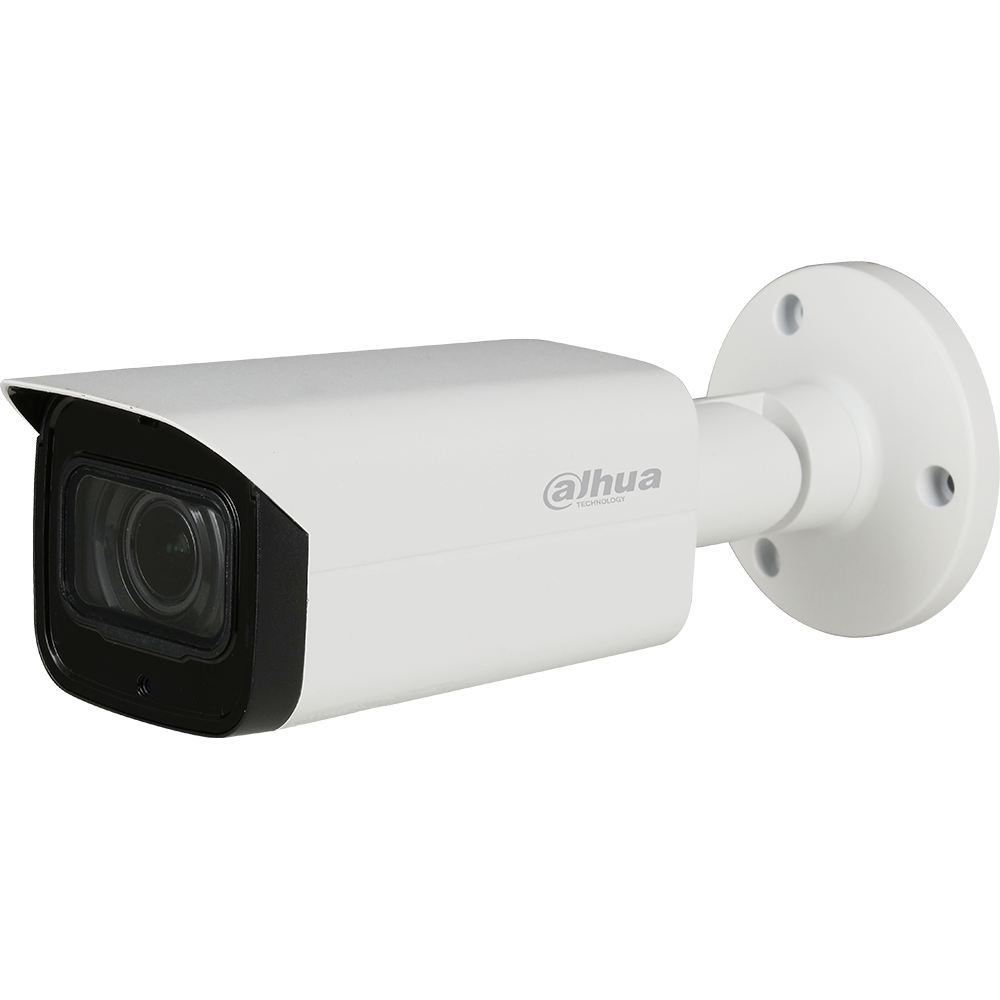

Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features:
- 1/1.8-in. 8MP Progressive-scan CMOS Imager
- 4K (3840 x 2160) at 15 fps Maximum Resolution
- 3.7 mm to 11 mm Motorized Optical Zoom Lens
- Starlight Technology for Ultra Low-light Applications
- True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
- HD or SD Output, Switchable
- Built-in Microphone
- Maximum IR length 80 m (262 ft), Smart IR
- Dual Power Input, 24 VAC or 12 VDC Power Supply
- IP67 Ingress Protection
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/1.8-in. CMOS Sensor |
| Effective Pixels | 3840 (H) x 2160 (V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 Lux at F1.5, 30 IRE 0 Lux with IR on |
| S/N Ratio | More than 65 dB |
| IR Distance | Up to 80.0 m (262.47 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
| Lens | |
| Lens Type | Motorized Lens, Fixed Iris |
| Mount Type | Board-in |
| Focal Length | 3.7 mm to 11 mm |
| Maximum Aperture | F1.5 |
| Angle of View | Horizontal: 112° to 46° |
| Focus Control | Auto, Manual |
| Close Focus Distance | 200 mm (7.87 in.) |
| Pan / Tilt / Rotation |
| Pan/Tilt/Rotation | Pan: 0° to 360° Tilt: 0° to 90° Rotation: 0° to 360° |
| Video |
| Maximum Resolution | 8 MP (3840 x 2160) | |
| Frame Rate | HDCVI | 8MP at 15 fps, 6MP at 20 fps, or 4MP at 30 fps |
| TVI | 5MP at 20 fps 4MP at 30 fps | |
| AHD | 5MP at 20 fps 4MP at 30 fps | |
| CVBS | 960H | |
| Video Output | One (1) BNC HDCVI 4K Ultra High-definition Channel or, One (1) BNC CVBS Channel, switchable | |
| Video Transmission² | RG-59/U Coax | 720p: 800 m (2624.67 ft) 1080p: 500 m (1640.42 ft) 4K: 500 m (1640.42 ft) |
| RG-6/U Coax | 720p: 1200 m (3937.01 ft) 1080p: 800 m (2624.67 ft) 4K: 700 m (2296.59 ft) | |
| CAT 6 UTP (balun required) | 720p: 450 m (1476.38 ft) 1080p: 300 m (984.25 ft) 4K: 300 m (984.25 ft) | |
| Day/Night | Auto (ICR), Manual | |
| OSD Menu | Multi-language | |
| BLC Mode | BLC, HLC, True WDR | |
| WDR | 120 dB | |
| Gain Control | AGC | |
| Noise Reduction | 2D/3D | |
| White Balance | Auto, Manual | |
| Smart IR | Auto, Manual | |
| Certifications | ||
| CE | EN55032 EN55024 EN50130-4 |
| Safety | UL60950-1 CAN/CSA C22.2 No.60950-1 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014 |
| Interface |
| Audio | Input: One (1) Channel, RCA Jack, and Built-in Microphone |
| Electrical |
| Power Supply | 24 VAC ± 30% or 12 VDC ± 30% |
| Power Consumption | Maximum 15 W (12 VDC, IR on) |
| Environmental |
| Operating Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH *Initiate start up above –30° C (–22° F) |
| Storage Conditions | –30° C to +60° C (–22° F to +140° F) Less than 90% RH |
| Ingress Protection | IP67 |
| Construction |
| Casing | Aluminium |
| Dimensions | 244.10 mm x 90.40 mm x 90.40 mm (9.61 in. x 3.56 in. x 3.56 in.) |
| Net Weight | 0.80 kg (1.76 lb) |
| Gross Weight | 1.05 kg (2.31 lb) |
