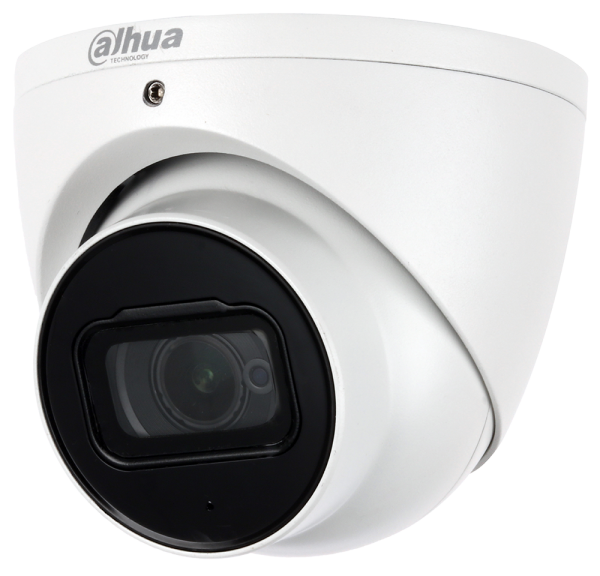

Dahua - A82AG52 - 8MP HDCVI IR Eyeball 2.8mm Multi-format
Part number:
A82AG52
Price:

Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The 4K HDCVI camera uses next-generation ISP chip technology developed by Dahua to deliver stunning video. This home-grown ISP features the latest image processing algorithms and is optimized for surveillance camera operations. With total control of the ISP features and production, Dahua can offer the latest security systems at a cost-effective price.



For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low light down to 0.005 lux. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.



Features:

  • 1/1.8-in. 8MP Progressive-scan CMOS Imager
  • 4K (3840 x 2160) at 15 fps Maximum Resolution
  • 2.8 mm Fixed Lens
  • Starlight Technology for Ultra Low-light Applications
  • True Wide Dynamic Range (120 dB) and 2D/3D Noise Reduction
  • HD or SD Output, Switchable
  • Built-in Microphone
  • Maximum IR Length 50 m (164 ft), Smart IR
  • IP67 Ingress Protection
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Technical Specification
Camera
Image Sensor1/1.8-in. CMOS Sensor
Effective Pixels3840 (H) x 2160 (V), 8MP
Scanning SystemProgressive
Electronic Shutter Speed1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.005 Lux at F1.6, 30 IRE
0 Lux with   IR on
S/N RatioMore than 65 dB
IR DistanceUp to 50.0 m (164.04 ft)
IR On/Off ControlAuto, Manual
IR LEDsTwo (2)
Lens
Lens TypeFixed Lens, Fixed Iris
Mount TypeBoard-in
Focal Length2.8 mm
Maximum ApertureF1.6
Angle of ViewHorizontal: 87°
Focus ControlAuto, Manual
Close Focus Distance1800 mm (70.87 in.)
Pan / Tilt / Rotation
Pan/Tilt/RotationPan: 0° to 360°
Tilt: 0° to 70°
Rotation: 0° to 360°
Video
Maximum Resolution8 MP (3840 x 2160)
Frame RateHDCVI8MP at 15 fps, 6MP at 20 fps, or 4MP at 30 fps
TVI5MP at 20 fps 4MP at 30 fps
AHD5MP at 20 fps 4MP at 30 fps
CVBS960H
Video OutputOne (1) BNC HDCVI 4K Ultra High-definition Channel or, One (1) BNC CVBS Channel, switchable
  720p:    800 m (2624.67 ft)
 RG-59/U Coax1080p: 500 m (1640.42 ft)
  4K:        500 m (1640.42 ft)
Video
Transmission²
RG-6/U Coax720p:    1200 m (3937.01 ft)
1080p: 800 m    (2624.67 ft)
4K:         700 m   (2296.59 ft)
 CAT 6 UTP
(balun required)
720p:    450 m (1476.38 ft)
1080p: 300 m (984.25 ft)
4K:         300 m (984.25 ft)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC, HLC, True WDR
WDR120 dB
Gain ControlAGC
Noise Reduction2D, 3D
White BalanceAuto, Manual
Smart IRAuto, Manual
Certifications
CEEN55032 EN55024 EN50130-4
SafetyUL60950-1
CAN/CSA C22.2 No.60950-1
Electromagnetic Compatibility (EMC)FCC CFR 47 Part 15 subpart B, ANSI C63.4-2014
Interface
AudioInput: One (1) Channel, RCA Jack, and Built-in Microphone
Electrical
Power Supply12 VDC ± 30%
Power ConsumptionMaximum 8 W (12 VDC, IR on)
Environmental
Operating Conditions–30° C to +60° C (–22° F to +140° F)
Less than 90% RH
*Initiate start up above –30° C (–22° F)
Storage Conditions–30° C to +60° C (–22° F to +140° F)
Less than 90% RH
Ingress ProtectionIP67
Construction
CasingAluminium
Dimensionsø106.0 mm x 99.20 mm (ø4.17 in. x 3.90 in.)
Net Weight0.50 kg (1.10 lb)
Gross Weight0.62 kg (1.37 lb)
