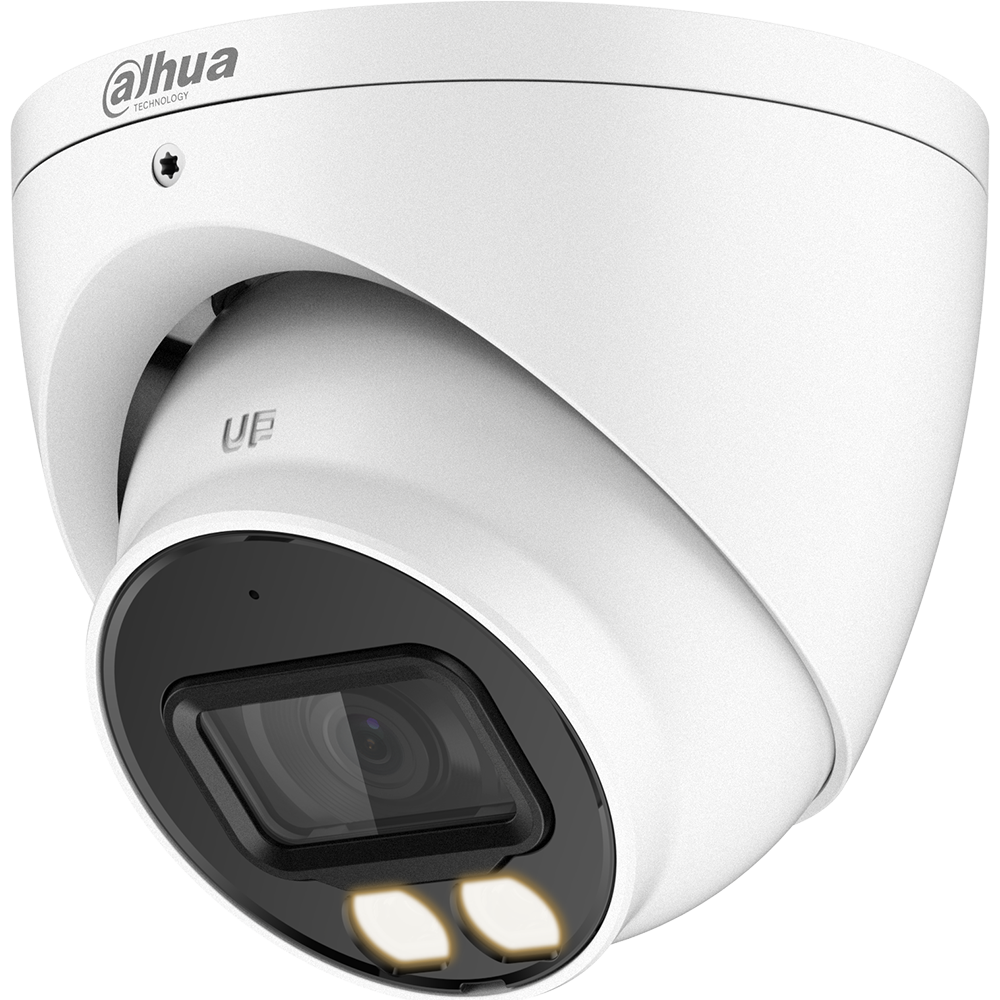

Dahua - A82CJN2 - 4K Enhanced Night Color HDCVI Eyeball Camera (2.8 mm) Pro Series
Part number:
A82CJN2
Price:
Experience the superior clarity of Dahua’s 4K HDCVI camera for vast coverage and superior image details. The 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and over long distances. The camera offers a 2.8 mm fixed lens, a multi-language On-screen Display, and HD/SD switchable output. The camera is ideal for hosting diverse applications — Enhanced Night Color technology and True Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
- 1/2.8 in. Progressive-scan 8MP CMOS Sensor
- 8MP (3840 x 2160) at 15 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Night Color Technology with White-light LEDs for Color Images in Total Darkness
- Super Adapt, True Wide Dynamic Range (120 dB) and 3D Noise Reduction
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- Supports Multiple Video Formats: HDCVI, CVBS, AHD and TVI
- Built-in Microphone
- IP67 Ingress Protection
| Technical Specification | |
| Image Sensor | |
| Image Sensor | 1/2.8-in. 8MP CMOS Sensor |
| Max. Resolution | 3840(H) × 2160(V), 8MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/4 s to 1/100,000 s |
| S/N Ratio | > 65 dB |
| Min. Illumination | Color: 0.001 Lux at F1.0 0 lux with White Light on |
| Illumination Distance | Up to 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto, Manual |
| Illuminator Number | Two (2) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Angle of View | Horizontal: 106° Vertical: 55° Diagonal: 125° |
| Iris Type | Fixed |
| Close Focus Distance | 2.0 m (6.56 ft) |
| Pan / Tilt / Rotation | |
| Pan/Tilt/Rotation Range | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
| Video | |
| Resolution Output | 4K (3840 × 2160); 5MP (2592 × 1944 ); 4MP (2560 × 1440); 960 H (960 × 480) |
| Frame Rate | CVI: 4K (3840 × 2160) at 15 fps; 5MP(2880 × 1620) at 25 fps; 4MP (2560 × 1440) at 30 fps AHD: 4K at 15 fps TVI: 4K at 15 fps CVBS: 960H |
| BLC Mode | BLC, HLC, WDR, HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto, Area White Balance |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D NR |
| Smart Light | Yes |
| Mirror | On, Off |
| Privacy Masking | On, Off (8 area, rectangle) |
| Interface | |
| Video Output | One (1) BNC, Transmits HDCVI High-definition signal or CVBS, AHD or TVI Channel, DIP Switch |
| Audio Input | One (1) Built-in Microphone |
| Certifications | |
| CE | EN55032, EN61000, EN55024, EN55035, EN50130, EN62368 |
| Safety | UL62368-1 CAN/CSA C22.2 No.62368-1-14 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 Subpart B ANSI C63.4-2014 |
| Electrical | |
| Power Supply | 12VDC ±30% |
| Power Consumption | Maximum 6.9 W (12V DC, with white light on) |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH (non-condensation) |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F) Less than 95% RH |
| Ingress Protection | IP67 |
| Construction | |
| Casing | Metal |
| Camera Dimensions | φ106.0 mm × 93.6 mm (φ4.17" × 3.69") |
| Net Weight | 0.50 kg (1.1 lb) |
| Gross Weight | 0.67 kg (1.48 lb) |
