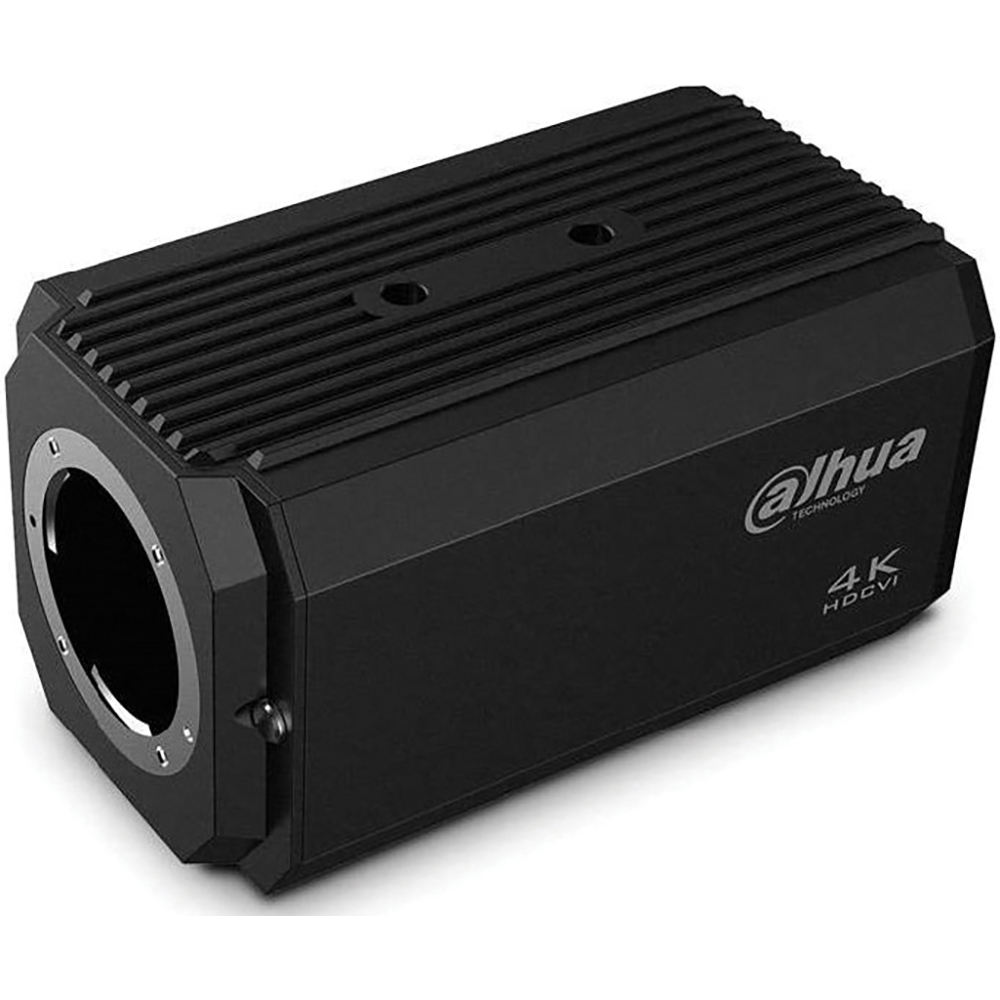

Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. As the world’s first 4K over coax cameras, the Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and more cost effectively. The outstanding performance, easy installation and rugged design make the camera an ideal choice for mid- to large-size businesses and for applications in large, open spaces (city centers, parks, campuses) where highly reliable surveillance and construction flexibility are valued.
For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing color details in low light down to 0.0005 lux. The camera uses a large pixel sensor, smart imaging algorithms and a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features :
- 8 MP Progressive-scan CMOS Sensor
- M43 Lens Interface
- 3840 x 2160 at 30 fps (HDMI) and 3840 x 2160 at 15 fps (BNC)
- Simultaneous HDMI and HDCVI/CVBS Video Output
- Starlight+ Technology for Ultra-low Light Sensitivity
- Ultra Wide Dynamic Range (140 dB) and 2D and 3D Noise Reduction
- Built-in Microphone
- Software Upgrade via USB
- Five-year Warranty (for products sold through authorized Dahua Dealers)
|
Image Sensor |
Micro Four Thirds |
|
|
|
|
4/3-in. 8 MP Progressive-scan CMOS |
|
|||
|
|
|
|||
|
Effective Pixels |
3840(H) x 2160(V), 8 MP |
|
|
|
|
Scanning System |
Progressive |
|
|
|
|
Electronic Shutter Speed |
1/1 s to 1/100,000 s |
|
|
|
|
Minimum Illumination |
Color: 0.001 lux at F1.2 (1/3 s, 30 IRE) |
|
||
|
Color: 0.0005 lux at F0.95 (1/3 s, 30 IRE) |
|
|||
|
|
Color: 0.003 lux at F0.95 (1/30 s, 30 IRE) |
|
||
|
S/N Ratio |
|
|
|
|
|
More than 65 dB |
|
|
|
|
|
Lens |
|
|
|
|
|
Lens Type |
External |
|
|
|
|
Mount Type |
M43 |
|
|
|
|
Video |
|
|
|
|
|
Resolution |
8 MP, 3840 x 2160 |
|
|
|
|
HDMI |
3840 x 2160 at 30 fps |
|
|
|
|
Frame Rate |
|
|
|
|
|
BNC |
3840 x 2160 at 15 fps² or 4MP at 30 fps |
|
||
|
Video Output |
One (1) HDMI 4K Ultra High-definition Channel and, |
|
||
|
One (1) BNC Channel |
|
|
||
|
|
|
|
||
|
|
|
720p: |
800 m (2624.67 ft) |
|
|
|
|
|
||
|
|
RG-59/U Coax |
1080p: |
500 m (1640.42 ft) |
|
|
|
|
4K/4 MP |
500 m (1640.42 ft) |
|
|
Video Transmission³ |
|
720p: |
1200 m (3937.01 ft) |
|
|
RG-6/U Coax |
1080p: |
800 m (2624.67 ft) |
|
|
|
|
|
4K/4 MP: |
700 m (2296.59 ft) |
|
|
|
CAT 6 UTP |
720p: |
450 m (1476.38 ft) |
|
|
|
1080p: |
300 m (984.25 ft) |
|
|
|
|
(balun required) |
|
||
|
|
4K/4 MP: |
300 m (984.25 ft) |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
Day/Night |
Color |
|
|
|
|
On-Screen Display |
Multi-language |
|
|
|
|
BLC Mode |
BLC, HLC, Ultra WDR |
|
|
|
|
WDR |
140 dB |
|
|
|
|
Gain Control |
AGC |
|
|
|
|
Noise Reduction |
2D/3D |
|
|
|
|
White Balance |
Auto, Manual |
|
|
|
|
Advanced Features |
Motion Detection, Privacy Mask |
|
||
|
Video Output |
One (1) HDMI (4K video) and |
|
|
One (1) BNC, HDCVI or CVBS Output, switchable |
|
|
|
|
|
|
|
|
|
|
|
Audio Input |
One (1) Channel plus Built-in Microphone |
|
|
RS485 |
One (1) Port |
|
|
Alarm |
Input: Two (2) Channels |
|
|
Output: One (1) Channel |
|
|
|
|
|
|
|
USB |
One (1) Micro USB Port for Firmware Update |
|
|
Electrical |
|
|
|
Power Supply, Input |
24 VAC ±25% or 12 VDC ±25% |
|
|
Power Consumption |
Maximum 9 W (12 VDC) |
|
|
Certifications |
|
|
|
Safety |
EN55032, EN55024, EN50130-4 |
|
|
UL60950-1+CAN/CSA C22.2 No.60950-1 |
|
|
|
|
|
|
|
Electromagnetic Compatibility |
FCC CFR 47 Part 15 subpart B |
|
|
(EMC) |
ANSI C63.4-2014 |
|
|
Environmental |
|
|
|
Operating Conditions |
–30° C to +60° C (–22° F to +140° F), |
|
|
Less than 90% RH |
|
|
|
|
Initiate start up above –30° C (–22° F) |
|
|
Storage Conditions |
–30° C to +60° C (–22° F to +140° F), |
|
|
Less than 90% RH |
|
|
|
|
|
|
|
Construction |
|
|
|
Casing |
Aluminium |
|
|
Dimensions |
144.50 mm x 82.0 mm x 73.70 mm |
|
|
(5.69 in. x 3.23 in. x 2.90 in.) |
|
|
|
|
|
|
|
Net Weight |
0.62 kg (1.36 lb) |
|
|
Gross Weight |
0.83 kg (1.83 lb) |
|
