HDCVI technology seamlessly integrates traditional analog surveillance systems with upgraded, high-quality HD video, making it the best choice to protect security investments. The plug and play approach enables full HD video surveillance without the hassles of configuring a network.
Experience the superior clarity of Dahua’s Ultra 4K HDCVI cameras for vast coverage and superior image details. As the world’s first 4K over coax cameras, the Dahua Ultra 4K HDCVI series leverages existing coax infrastructures to deliver forensic-level images seamlessly and more cost effectively. The outstanding performance, easy installation and rugged design make the camera an ideal choice for mid- to large-size businesses.

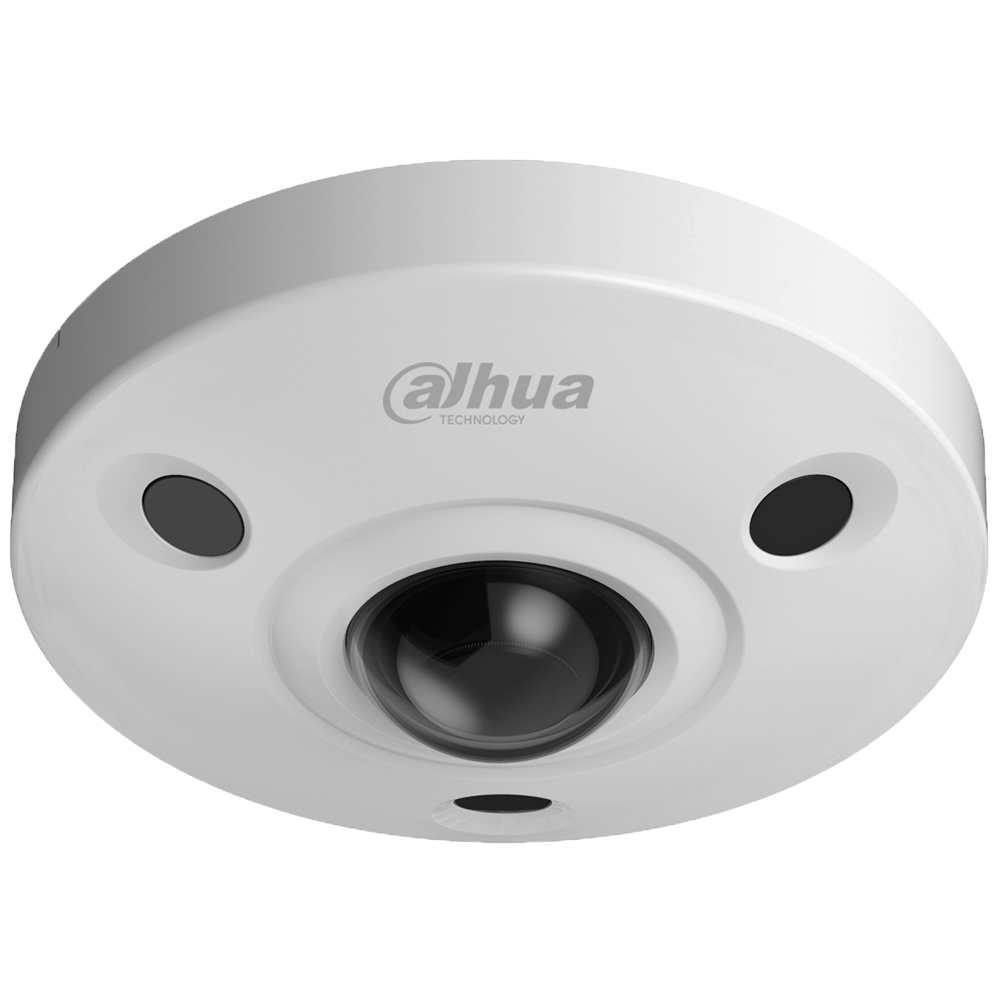

Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The 1/2-in. CMOS sensor combined with a fisheye lens provides a high-quality 180° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarping modes for different installations and configurations that enhance the video to fit a specific scene. The IP67 environmental protection rating and IK10 vandal resistance ensures the camera operates in the harshest environments.
Features :
- 1/1.8-in. 8 MP Progressive-scan CMOS Sensor
- 3840 x 2160 at 15 fps Maximum Resolution
- 180° Panoramic Lens
- True WDR (120 dB), 2D/3D DNR
- Maximum IR Distance 15 m (49 ft) with Smart IR
- On-device Lens Distortion Correction
- HD and SD Dual-output
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
|
Image Sensor |
|
1/1.8-in. CMOS Sensor |
|
|
|
||
|
Effective Pixels |
|
3840 x 2160 (8 MP) |
|
|
|
||
|
Scanning System |
|
Progressive |
|
|
|
|
|
|
Electronic Shutter Speed |
1/3 s to 1/100,000 s |
|
|
|
|||
|
Minimum Illumination |
Color: 0.005 lux at F2.0 (30 IRE) |
|
|
||||
|
0 lux (IR On) |
|
|
|
|
|||
|
|
|
|
|
|
|
||
|
S/N Ratio |
|
More than 65 dB |
|
|
|
|
|
|
IR Distance |
|
15 m (49.21 ft) |
|
|
|
|
|
|
IR Control |
|
Auto, Manual |
|
|
|
|
|
|
IR LEDs |
|
Three (3) |
|
|
|
|
|
|
Lens |
|
|
|
|
|
|
|
|
Lens Type |
|
Fixed Lens / Fixed Iris |
|
|
|
||
|
Mount Type |
|
Board-in |
|
|
|
|
|
|
Focal Length |
|
2.5 mm |
|
|
|
|
|
|
Maximum Aperture |
F2.0 |
|
|
|
|
|
|
|
|
No LDC |
Horizontal: 180° |
|
|
|
|
|
|
|
Correction |
Vertical: 100° |
|
|
|
|
|
|
Angle of View |
LDC |
Horizontal: 176° |
|
|
|
|
|
|
Vertical Mode |
Vertical: 73° |
|
|
|
|
||
|
|
|
|
|
|
|||
|
|
LDC Vertical/ |
Horizontal: 170° |
|
|
|
|
|
|
|
Horizontal Mode |
Vertical: 88° |
|
|
|
|
|
|
Close Focus Distance |
600 mm (23.62 in.) |
|
|
|
|||
|
DORI¹ Distance |
|
|
|
|
|
|
|
|
Detect (8 ppf) |
Observe (19 ppf) |
Recognize (38 ppf) |
Identify (76 ppf) |
|
|||
|
53 m (174 ft) |
21 m (69 ft) |
|
11 m (36 ft) |
|
5 m (16 ft) |
|
|
|
Video |
|
|
|
|
|
|
|
|
Resolution |
|
8 MP (3840 x 2160), 4 MP (2560 x 1440) |
|
||||
|
Frame Rate |
|
3840 x 2160 at 15 fps or |
|
|
|
||
|
|
2560 x 1440 at 30 fps |
|
|
|
|||
|
|
|
|
|
|
|||
|
Video Output |
|
One (1) BNC HDCVI 4K Channel, and |
|
||||
|
|
One (1) BNC CVBS Channel |
|
|
||||
|
|
|
|
|
||||
|
|
|
|
|
1080p: 500 m (1640.42 ft) |
|
||
|
|
|
RG-59/U Coax |
4 MP: |
500 m (1640.42 ft) |
|
||
|
|
|
|
|
4K: |
500 m (1640.42 ft) |
|
|
|
|
|
|
|
1080p: 800 m (2624.67 ft) |
|
||
|
Transmission Distances² |
RG-6/U Coax |
4 MP: |
700 m (2296.59 ft) |
|
|||
|
|
|
|
|
4K: |
700 m (2296.59 ft) |
|
|
|
|
|
CAT 5e UTP |
1080p: 300 m (984.25 ft) |
|
|||
|
|
|
4 MP: |
300 m (984.25 ft) |
|
|||
|
|
|
(balun required) |
|
||||
|
|
|
4K: |
300 m (984.25 ft) |
|
|||
|
Day/Night |
Auto (ICR), Manual |
|
OSD Menu |
Multi-language |
|
BLC Mode |
BLC, HLC, WDR |
|
WDR |
True WDR (120 dB) |
|
Gain Control |
AGC |
|
Noise Reduction |
2D/3D |
|
White Balance |
Auto, Manual |
|
Smart IR |
Auto, Manual |
|
Audio |
Input: Built-in Microphone |
|
|
Alarm |
Input: Two (2) Channels |
|
|
Output: One (1) Channel |
|
|
|
|
|
|
|
Certifications |
|
|
|
Safety |
UL60950-1+CAN/CSA C22.2 No.60950-1 |
|
|
Electromagnetic Compatibility |
EN55032, EN55024, EN50130-4 |
|
|
CFR 47 FCC Part 15 Subpart B |
|
|
|
(EMC) |
|
|
|
ANSI C63.4-2014 |
|
|
|
|
|
|
|
Electrical |
|
|
|
Power Supply |
12 VDC ± 25% |
|
|
Power Consumption |
7.4 W, with IR on |
|
|
Environmental |
|
|
|
Operating Conditions |
-30° C to +60° C (-22° F to +140° F), |
|
|
Less than 90% RH |
|
|
|
|
* Initiate startup above -30° C (-22° F) |
|
|
Storage Conditions |
-30° C to +60° C (-22° F to +140° F), |
|
|
Less than 90% RH |
|
|
|
|
|
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
IK10 |
|
|
Construction |
|
|
|
Casing |
Aluminium |
|
|
Dimensions |
�149.80 mm x 47.70 mm (�5.90 in. x 1.88 in.) |
|
|
Net Weight |
0.56 kg (1.23 lb) |
|
|
Gross Weight |
0.92 kg (2.02 lb) |
|
