Dahua - C885E62A - HDCVI Kit: 8-CH, 4K Analytics+ Penta-brid DVR + 6x 5MP, Mini Eyeball Cameras
Part number:
C885E62A
Price:

The Dahua HDCVI Security System provides the components to quickly install a video surveillance solution. The HDCVI cameras offer the clarity of 5 MP video with a 16:9 aspect ratio, and the HDCVI DVR offers built-in motion detection algorithms, alarm triggers, and customized recording modes. The cameras and the HDCVI DVR supports multiple video outputs making the kit compatible with many existing systems. The kit features Dahua’s HDCVI technology that leverages an existing coaxial infrastructure, saving time and costs from running networking and power cables. WizSense Series devices combine Dahua’s powerful Analytics+ with an intuitive and easy to use interface. WizSense devices offer Smart Motion Detection and Perimeter Protection functions that focus on human and vehicular images and ignore irrelevant images to capture important video while reducing false alarms. WizSense Series devices provide powerful general surveillance for small to medium size businesses at a sensible price.



HDCVI Cameras

  • 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
  • 5 MP at 25 fps Maximum Resolution, 2.8 mm Fixed Lens
  • 16:9 Aspect Ratio for no Image Stretching
  • Maximum IR Length 30 m (98.43 ft), Smart IR
  • IP67 Ingress Protection

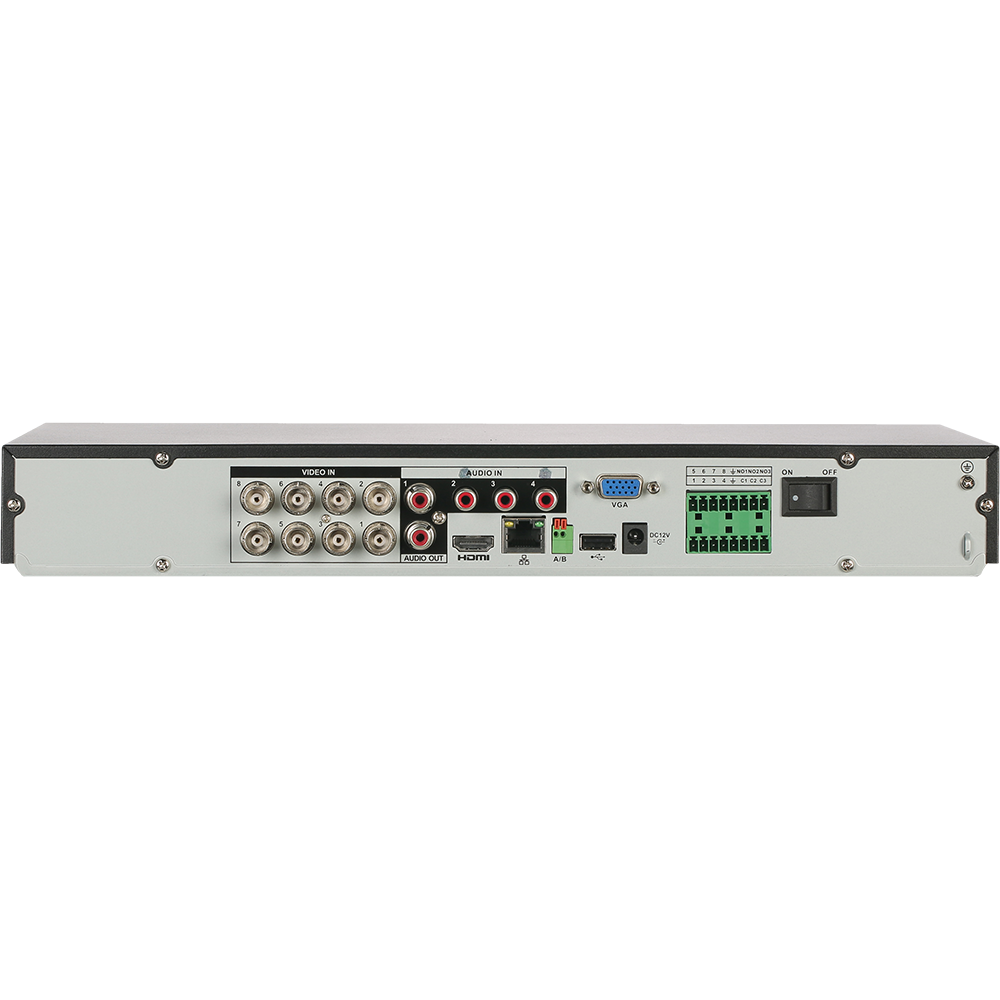

HDCVI DVR

  • 2 TB Pre-installed Hard Disk Drive
  • Eight-Channel Penta-brid Recorder, Dual-streaming
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 5 MP at 12 fps or 4K at 7 fps Recording Resolution on All HDCVI Channels
  • AI Coding Technology for High-quality Human/Vehicle Video
  • Perimeter Protection and Smart Motion Detection (SMD)
Technical Specification

Camera
Image Sensor1/2.7-in. CMOS Sensor
Effective Pixels2880 (H) x 1620 (V), 5 MP
Aspect Ratio¹16:9
Scanning SystemProgressive
Electronic Shutter Speed1/30 s to 1/100,000 s
Minimum IlluminationColor: 0.01 lux at F1.6, 30 IRE 0 lux with IR on
S/N RatioMore than 65 dB
IR DistanceUp to 30.0 m (98.43 ft)
IR On/Off ControlAuto, Manual
IR LEDsOne (1)

Lens

Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm
Maximum ApertureF1.6
Angle of View

Horizontal: 111°

Vertical: 58°

Diagonal: 132°

Close Focus Distance900.0 mm (35.43 in.)

Video

Resolution

5 MP (2880 x 1620), 4 MP (2560 x 1440),

1080p (1920 x 1080), 960H (960 x 480)

Maximum

Frame

Rate

HDCVI5 MP at 25 fps, 4 MP at 30 fps, 1080p at 30 fps
AHD4 MP at 30 fps
TVI4 MP at 30 fps
CVBS960H

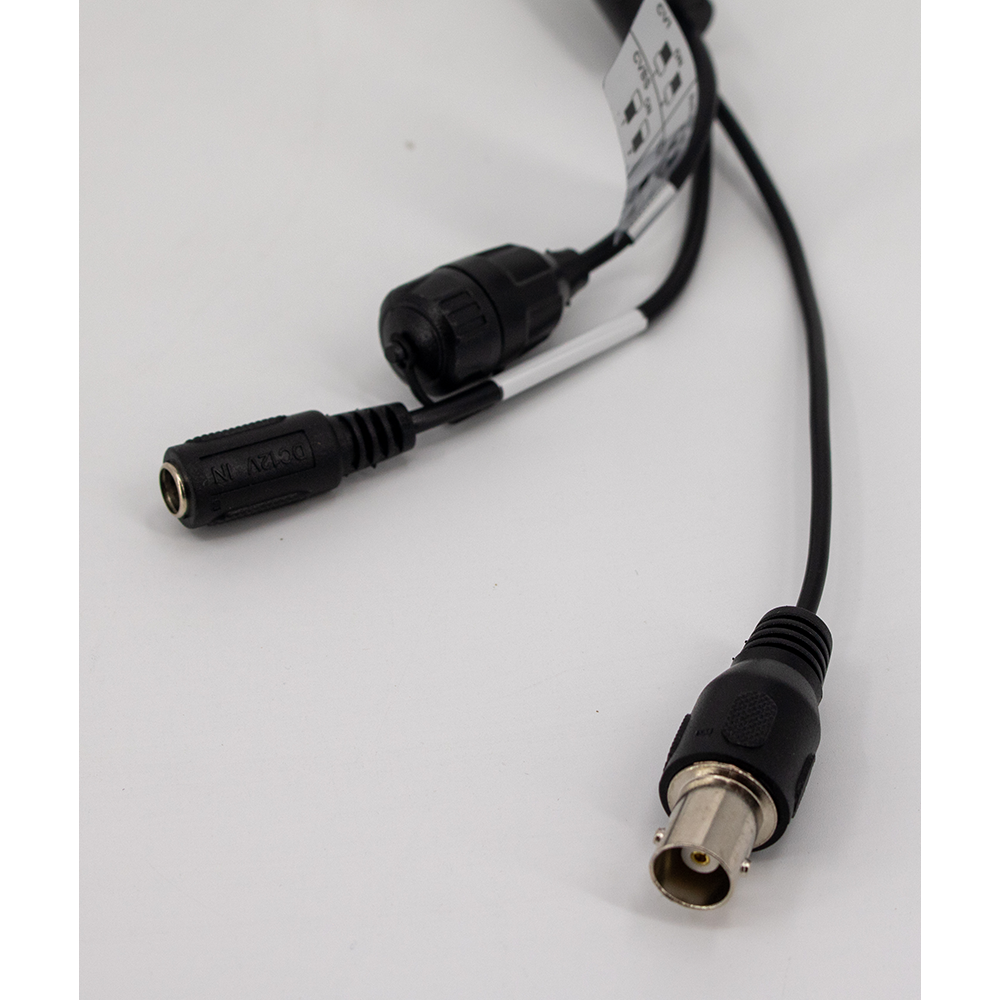

Video OutputOne (1) BNC Output, HDCVI, AHD, TVI, CVBS switchable
Video Transmission³RG-59/U Coax

720p: 800 m (2624.67 ft)

1080p: 500 m (1640.42 ft)

5 MP: 500 m (1640.42 ft)

RG-6/U Coax

720p: 1200 m (3937.01 ft)

1080p: 800 m (2624.67 ft)

5 MP: 700 m (2296.59 ft)

CAT 6 UTP

(balun required)

720p: 450 m (1476.38 ft)

1080p: 300 m (984.25 ft)

5 MP: 300 m (984.25 ft)

Day/Night Auto (ICR)
OSD Menu Multi-language
BLC Mode BLC, HLC, DWDR
WDR Digital WDR
Gain Control Auto, Manual
Noise Reduction 2D NR
White Balance Auto, Manual
Smart IR Auto, Manual
Safety

UL60950-1

CAN/CSA C22.2 No.60950-1

Electromagnetic Compatibility (EMC)

FCC CFR 47 Part 15 subpart B,

ANSI C63.4-2014, EN55032:2015,

EN 61000-3-2:2014, EN 61000-3-3:2013,

EN55024:2010+A1:2015, EN 55035:2017,

EN50130-4:2011+A1:2014,

EN 62368-1:2014+A11:2017
