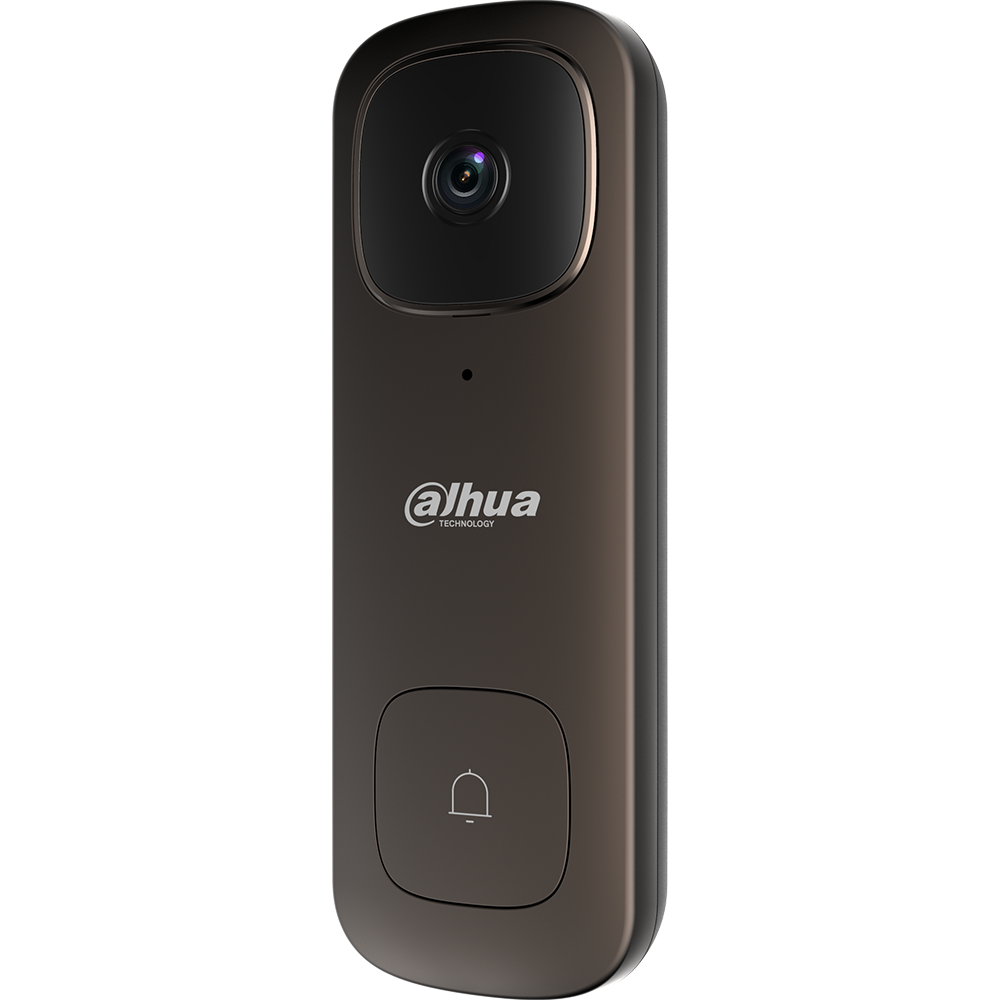

The 5MP WiFi Video Doorbell is a component of the Dahua LincX2PRO residential series. The doorbell offers specialized motion detection that distinguishes human forms from other object, and transmits video and audio to a mobile phone for remote visual confirmation and communication with visitors. This device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application.
Features:
- 1/2.7-in. 5 MP Progressive-scan CMOS Sensor
- Dual-band WiFi, IEEE802.11a/b/g/n/ac, 2.4 GHz and 5 GHz options
- H.265 and H.264 Dual Video Compression
- 2560 x 1920 at 15 fps Maximum Resolution
- 2.2 mm Fixed Lens
- Built-in Microphone and Speaker for Real-time Communication
- Motion Detection with Human Detection
- Built-in White-light Illuminator for Visual Deterrence
- Maximum IR LED Length 5.0 m (16.50 ft)
| Technical Specifications | |
| Camera | |
| Image Sensor | 1/2.7-in. 5 MP CMOS |
| Effective Pixels | 2560 x 1920 |
| RAM/ROM | 256 MB / 128 MB |
| Electronic Shutter Speed | Auto/Manual 1/3 s to 1/100,000 s |
| Scanning System | Progressive |
| IR Distance | 5.0 m (16.50 ft) |
| IR Control | Automatic |
| IR Illuminator | Two (2) LEDs |
| White-light Illuminator | Built-in, programmable |
| Built-in Battery | 200 mAh Lithium Battery |
| Lens | |
| Lens Type | Fixed-focal |
| Lens Mount | M8 |
| Focal Length | 2.2 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 124° Vertical: 92° Diagonal: 164° |
| Iris Control | Fixed |
| Close Focus Distance | 0.80 m (2.62 ft) |
| Video | ||
| Video Compression | H.265, H.264 | |
| Resolution | High | 2560 x 1920 at 15 fps |
| Medium | 1440 x 1080 at 15 fps | |
| Low | 640 x 480 at 15 fps | |
| Streaming Capability | Two (2) Streams | |
| Frame Rate | Main Stream | 2560 x 1920 at 15 fps |
| Sub Stream | 640 x 480 at 15 fps | |
| Video Bit Rate | H.264: 32 kbps to 8192 kbps H.265: 32 kbps to 8192 kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| WDR | Digital WDR | |
| Optical Features | White Balance, Smart Illumination | |
| Noise Reduction | 3D NR | |
| Motion Detection | On, Off | |
| Audio | |
| Interface | Input: One (1) Built-in Microphone Output: One (1) Built-in Speaker |
| Two-way Talk | Three (3) built-in pre-recorded messages plus three (3) customized recorded messages |
| Compression | G.711A, G.711Mu, PCM |
| Audio Sampling | 8 KHz, 16 KHz, 32 KHz |
| Network | |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; DDNS; QoS; NTP; Multicast; ICMP; IGMP |
| Edge Storage | Micro SD Card Slot, maximum 256 GB |
| Interoperability | CGI, P2P, SDK, API |
Mobile Operating System | IOS, Android |
| Management Software | DMSS |
| Compatibility |
|
| Certifications | |
Electromagnetic Compatibility (EMC) | 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C; FCC PART 15E |
| Electrical | ||
Power Supply | 12 VDC to 24 VDC or 16 VAC to 24 VAC, 0.8 A USB (5 VDC±5%, 2 A)² | |
Power Consumption | 5 VDC | Basic: 2.3 W Maximum: 3.3 W |
12-24 VDC | Basic: 2.9 W Maximum: 4.8 W | |
16-24 VAC | Basic: 2.9 W Maximum: 4.9 W |
| Environmental | |
| Operating Temperature | –20° C to +50° C (–4° F to 122° F), Less than 95% RH |
| Ingress Protection | IP65 |
| Construction | |
| Dimensions (L x W x H) | 130.0 mm x 45.0 mm x 22.50 mm (5.12 in. x 1.77 in. x 0.88 in.) |
| Net Weight | 0.11 kg (0.24 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
| Installation | Surface-mount |
