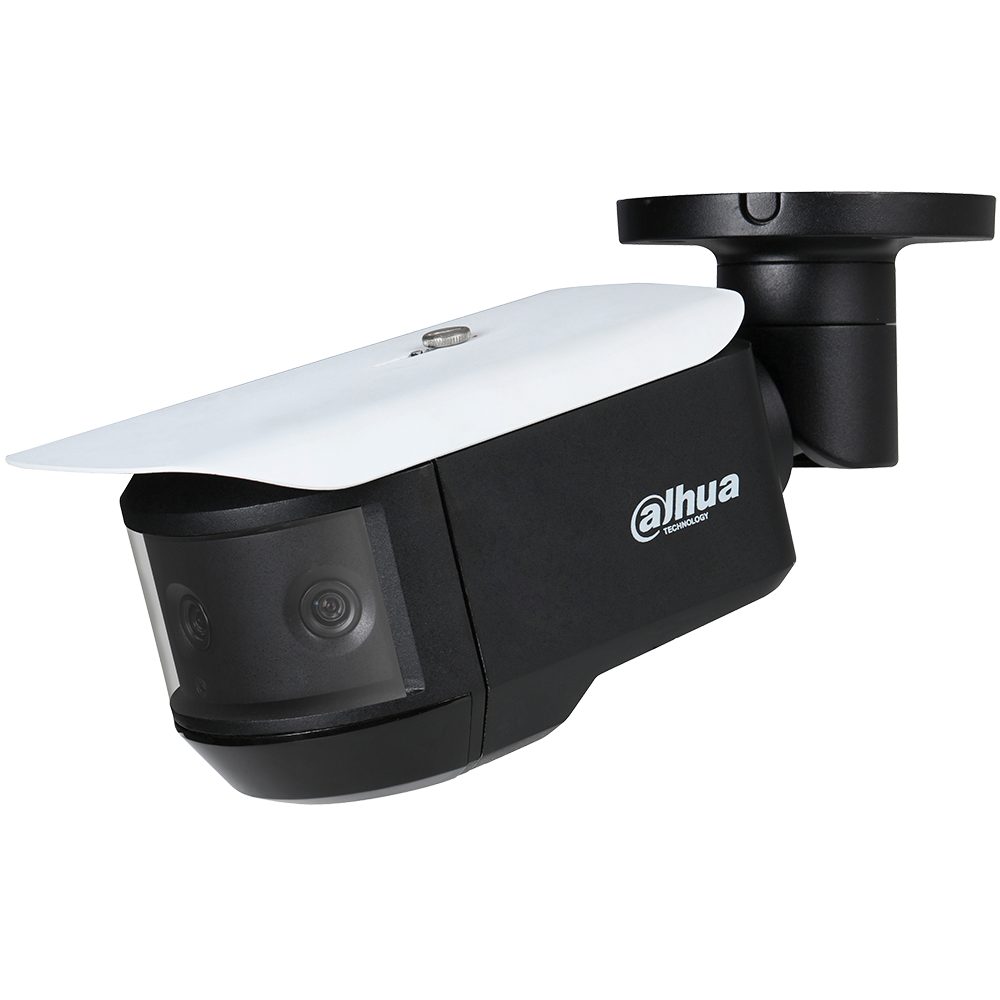

The Dahua Multi-Sensor HDCVI Camera uses three (3) 2 MP sensors to deliver a panoramic 180° scene. The camera provides one output for the 180° panoramic video, plus three separate 2 MP HDCVI outputs, one for each sensor. One multi-sensor camera replaces multiple single-sensor cameras providing a higher return on investment for your security dollars. Each sensor is independently configurable, so contrast, backlight compensation on, white balance control, and resolution on adjustments can be tailored to create a custom image for every application.
Features :
- Three (3) 1/2.8-in 2 MP Progressive Scan STARVIS™ CMOS Sensors
- Simultaneous 180° Panoramic Output plus Three (3) 2 MP HDCVI Video Outputs
- Starlight Technology for Ultra-low Light Sensitivity
- 3840 x 832 at 15 fps Maximum Resolution (Panoramic Image)
- True WDR (120 dB), 2D and 3D Noise Reduction
- E-PTZ and Motion Detection Functionality
- Maximum IR Distance 20 m (66 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
|
Image Sensor |
|
Three (3) 1/2.8-in. 2 MP STARVIS™ CMOS Sensors |
|
|||
|
Effective Pixels |
|
3840 (H) x 832 (V), Panoramic |
|
|
||
|
Scanning System |
|
Progressive |
|
|
|
|
|
Electronic Shutter Speed |
1/3 s to 1/100,000 s |
|
|
|
||
|
Minimum Illumination |
Color: 0.005 Lux at F1.8 (30 IRE) |
|
|
|||
|
0 Lux at F1.8 with IR on |
|
|
|
|||
|
|
|
|
|
|
||
|
S/N Ratio |
|
More than 65 dB |
|
|
|
|
|
IR Distance |
|
Distance up to 20.0 m (65.62 ft) |
|
|
||
|
IR On/Off Control |
|
Auto, Manual |
|
|
|
|
|
IR LEDs |
|
Six (6) |
|
|
|
|
|
Lens |
|
|
|
|
|
|
|
Lens Type |
|
Fixed Lens, Fixed Iris |
|
|
|
|
|
Mount Type |
|
Board-in |
|
|
|
|
|
Focal Length |
|
3.6 mm |
|
|
|
|
|
Max. Aperture |
|
F1.8 |
|
|
|
|
|
Horizontal Angle of View |
180˚ |
|
|
|
|
|
|
Close Focus Distance |
|
500.0 mm (19.79 in.) |
|
|
|
|
|
DORI² Distance |
|
|
|
|
|
|
|
Detect (8 ppf) |
Observe (19 ppf) Recognize (38 ppf) |
Identify (76 ppf) |
|
|||
|
50 m (163 ft) |
20 m (65 ft) |
10 m (33 ft) |
5 m (16 ft) |
|
||
|
Pan/Tilt/Rotation |
|
|
|
|
|
|
|
Range |
|
Pan: 0° to 360° |
|
|
|
|
|
|
Tilt: 0° to 90° |
|
|
|
|
|
|
|
|
Rotation: 0° to 360° |
|
|
|
|
|
Video |
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Resolution |
|
Panoramic Channel: 3840 x 832 |
|
|
||
|
|
Individual Sensor Channel: 2 MP |
|
|
|||
|
|
|
|
|
|||
|
|
|
|
|
|
||
|
Frame Rate³ |
|
4K DVR: 3840 x 2160 at 15 fps |
|
|
||
|
|
4 MP DVR: 2560 x 1440 at 25 fps |
|
|
|||
|
|
|
|
|
|||
|
Video Output |
|
Four (4) Total Channels: |
|
|
|
|
|
|
• One (1) BNC HDCVI Panoramic Video |
|
||||
|
|
|
• Three (3) BNC 2 MP HDCVI Video Channels |
|
|||
|
|
|
|
4K: |
500 m (1640.42 ft) |
|
|
|
|
|
|
|
|||
|
|
|
RG-59/U Coax |
4 MP: |
500 m (1640.42 ft) |
|
|
|
|
|
|
1080p: 500 m (1640.42 ft) |
|
||
|
|
|
|
4K: |
700 m (2296.59 ft) |
|
|
|
Video Transmission⁴ |
|
RG-6/U Coax |
4 MP: |
700 m (2296.59 ft) |
|
|
|
|
|
|
1080p: 800 m (2624.67 ft) |
|
||
|
|
|
CAT 6 UTP |
4K: |
300 m |
(984.25 ft) |
|
|
|
|
4 MP: |
300 m |
(984.25 ft) |
|
|
|
|
|
(balun required) |
|
|||
|
|
|
1080p: 300 m |
(984.25 ft) |
|
||
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
Day/Night |
Auto (ICR), Color, B/W |
|
|
OSD Menu |
Multi-language |
|
|
BLC Mode |
BLC, HLC, WDR |
|
|
WDR |
True Wide Dynamic Range (120 dB) |
|
|
Gain Control |
AGC |
|
|
Noise Reduction |
2D/3D |
|
|
White Balance |
Auto, Manual |
|
|
Smart IR |
Auto, Manual |
|
|
Interface |
|
|
|
Audio |
Input: One (1) Channel, RCA Jack |
|
|
Alarm |
Input: Two (2) Channels |
|
|
Output: One (1) Channel |
|
|
|
|
|
|
|
Test Interface |
One (1) Channel, 2-pin CVBS Video Output |
|
|
Upgrade Interface |
One (1) Channel, 4-pin USB Input |
|
|
Code Switcher |
One (1) Physical Code Switch (switches the |
|
|
source of the preset video) |
|
|
|
|
|
|
|
Menu Set |
One (1) five-direction Keyboard |
|
|
Electrical |
|
|
|
Power Supply |
12 VDC ± 25%, 2 A |
|
|
Power Consumption |
22 W |
|
|
Certifications |
|
|
|
Safety |
EN55032, EN55024, EN50130-4 |
|
|
UL60950-1+CAN/CSA C22.2 No.60950-1) |
|
|
|
|
|
|
|
Electromagnetic Compatibility |
FCC Part 15 Subpart B |
|
|
(EMC) |
ANSI C63.4-2014 |
|
|
Environmental |
|
|
|
Operating Temperature |
-30 °C to +60 °C (-22 °F to +140 °F), |
|
|
Less than 90% relative humidity |
|
|
|
|
Initiate start-up above -30 °C (-22 °F) |
|
|
Storage Temperature |
-30 °C to +60 °C (-22 °F to +140 °F), |
|
|
Less than 90% relative humidity |
|
|
|
|
|
|
|
Ingress Protection |
IP67 |
|
|
Vandal Resistance |
IK10 |
|
|
Construction |
|
|
|
Casing |
Aluminum |
|
|
Dimensions |
286.0 mm x 119.0 mm x 106.0 mm |
|
|
(11.26 in. x 4.68 in. x 4.19 in.) |
|
|
|
|
|
|
|
Net Weight |
1.50 kg (3.30 lbs) |
|
|
Gross Weight |
2.0 kg (4.40 lbs) |
|
