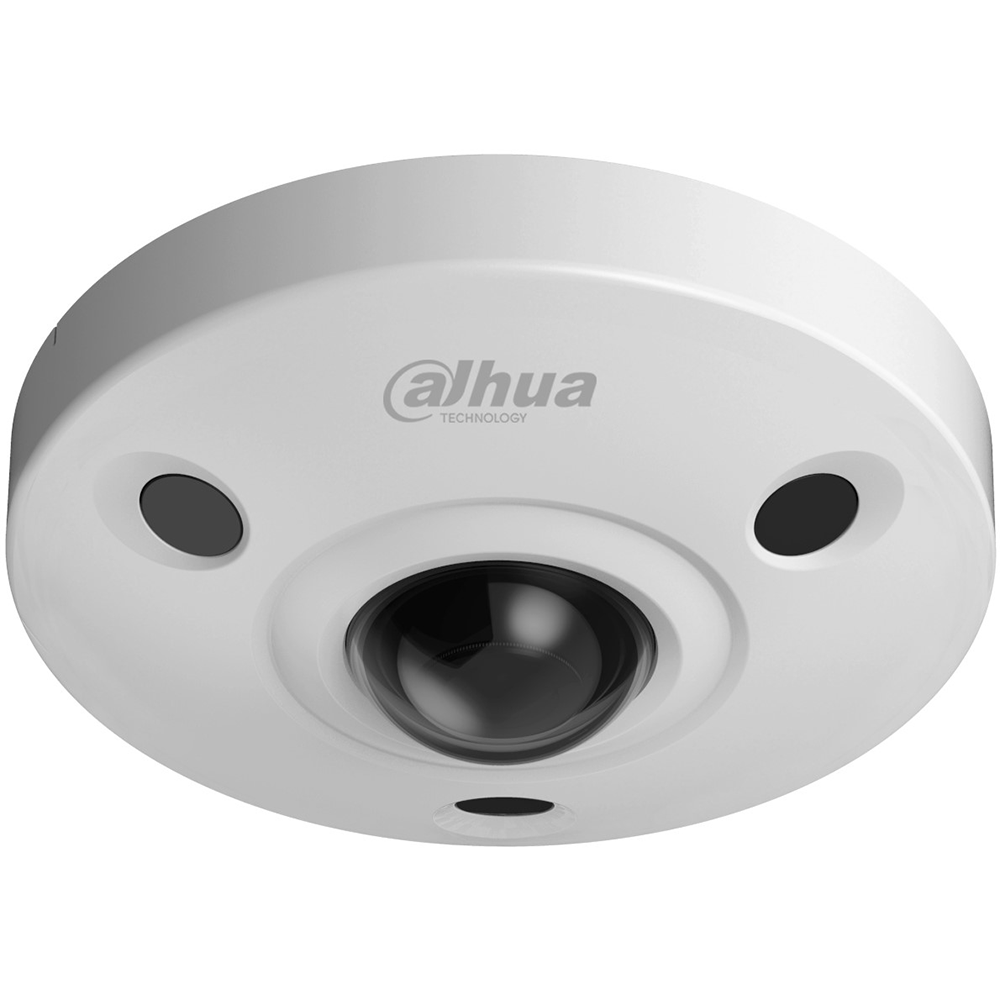

Dahua - DH-IPC-EBW81230N-M12 - 12MP Network Fisheye Camera
Part number:
DH-IPC-EBW81230N-M12
Price:

Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor combined with a fisheye lens provide a high-quality 180° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers multiple dewarp modes for different installations and configurations that enhance the video for a specific scene. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.



Features:

  • 1/1.7-in. 12 MP Progressive-scan CMOS Sensor
  • 12 MP (4000 x 3000) at 25 fps Maximum Resolution
  • Triple-stream Encoding
  • H.265 and H.264 Dual Codecs
  • Multiple Dewarp Modes
  • Day/Night (ICR), 3DNR, AWB, AGC, BLC
  • Maximum IR Distance 10 m (33 ft)
  • IP67 Ingress Protection, IK10 Vandal Resistance
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

Camera

Image Sensor 1/1.7-in. 6 MP CMOS
Total Sensor Pixels 4000(H) x 3000(V)
RAM/ROM 1024 MB / 128 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.001 lux at F2.8 (1/3 s, 30 IRE)
Color: 0.01 lux at F2.8 (1/30 s, 30 IRE)
0 lux at F2.8 with IR on
S/N Ratio More than 50 dB
IR Distance Up to 10 m (32.81 ft)
IR On/Off Control Auto, Manual
IR LEDs Three (3)

Lens

Lens Type Fixed
Mount Type Board-in
Focal Length 1.98 mm
Max. Aperture F2.8
Angle of View Horizontal: 180°;
Vertical: 180°
Focus Control Fixed
Name
Description
Size
Downloads
File
Datasheet
0.7mb
