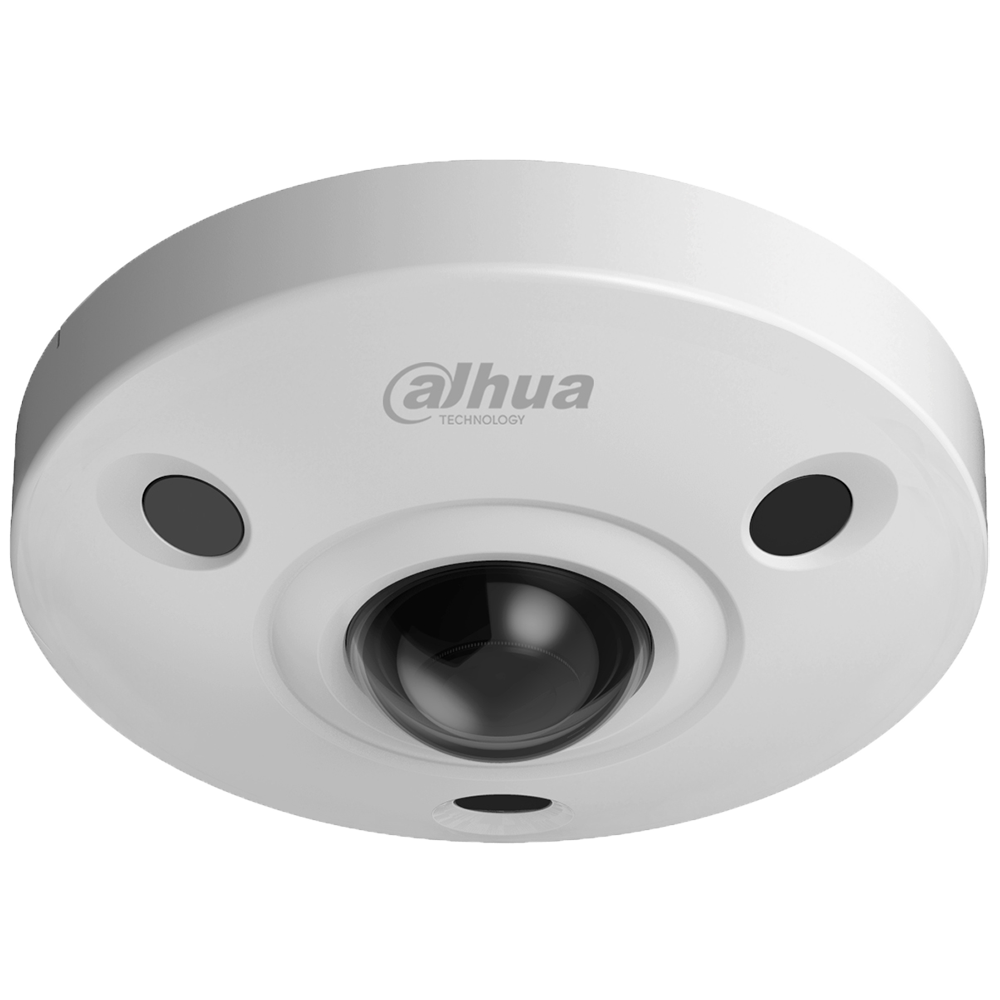

Dahua - DH-IPC-EBW81242N - 12 MP Network Fisheye Camera Panoramic IR Fisheye Camera
This product has been discontinued.
Part number:
DH-IPC-EBW81242N
Price:
- • 1/1.7-in. 12 MP Progressive-scan CMOS Sensor
- • 12 MP (4000 x 3000) at 30 fps Maximum Resolution
- • Triple Stream Encoding
- • Smart H.265+ and Smart H.264+ Dual Codecs
- • Built-in Microphone
- • Multiple Dewarp Modes
- • Analytics+ Functions — People Counting and Queue Management
- • Intelligent Video System with Intelligent Business Analysis
- • Maximum IR Distance 10 m (33 ft)
- • IP67 Ingress Protection and IK10 Vandal Resistance
- • 5-year Warranty (for products sold through an authorized Dahua dealer)
| Camera | |
|---|---|
| Image Sensor | 1/1.7-in. 12 MP CMOS |
| Total Sensor Pixels | 4000(H) x 3000(V) |
| RAM/ROM | 4 GB / 4 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.001 lux at F2.0 (1/3 s, 30 IRE) |
| Color: 0.01 lux at F2.0 (1/30 s, 30 IRE) | |
| 0 lux at F2.0 with IR on | |
| S/N Ratio | 49.70 dB |
| IR Distance | Up to 10 m (32.81 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 1.98 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 185° |
| Vertical: 180° | |
| Focus Control | Fixed |
| DORI Distance | |
| Detect (8 ppf) | 40.0 m (131.23 ft) |
| Observe (19 ppf) | 16.0 m (52.49 ft) |
| Recognize (38 ppf) | 8.0 m (26.25 ft) |
| Identify (76 ppf) | 4.0 m (13.12 ft) |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG |
| Streaming Capability | Three (3) Streams |
| Resolution | 12 MP (4000 x 3000), 8 MP (2880 x 2880), 2880 x 2160, 3 MP (2048 x 1536), 1.3 MP (1280 x 960), D1 (704 x 480), CIF (352 x 240) |
| Effective Maximum Resolution, based on Dewarping Mode | |
| Dewarping Mode | Mount Location / Resolution (H x V) |
| 1 Original | 4000 x 3000 |
| 1 Panoramic | 4096 x 1024 |
| 2 Panoramic | 2432 x 2432 |
| 1 Region | 1216 x 1216 |
| 2 Regions | 2432 x 2432 |
| 4 Regions | 2432 x 2432 |
| 1 Original + 3 Regions | 2432 x 2432 |
| Frame Rate | |
| Main Stream | 12 MP (4000 x 3000) at 30 fps |
| Sub Stream 1 | D1 (704 x 480) at 30 fps |
| Sub Stream 2 | D1 (704 x 480) at 30 fps |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.265: 52 Kbps to 16384 Kbps |
| H.264: 88 Kbps to 16384 Kbps | |
| Day/Night | Digital WDR |
| BLC Mode | Digital WDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone) |
| Region of Interest | Off, On (4 Zone) |
| Advanced Features | Smart IR, Digital Zoom |
| Privacy Masking | Off, On (4 Zone) |
| Audio | |
| Compression | G.711a, G.711Mu, AAC, G.726 |
| Network | |
| Ethernet | RJ-45 |
| Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Interoperability | ONVIF Profile S and G, GB/T28181, CGI |
| Maximum User Access | 20 Users (total bandwidth: 240 MB) |
| Edge Storage | FTP, Micro SD Card, maximum 256 GB |
| Web Viewer | IE version 9 or higher, Firefox version 48.0.2 or higher, Chrome version 48.0.2564.116 or higher |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL60950-1; CAN/CSA C22.2 No.60950-1-07; EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013; IEC 60950-1:2005 (Second Edition) |
| Electromagnetic Compatibility (EMC) | 47 CFR FCC Part 15 Subpart B; EN 55032:2015, Class B; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 55024:2010+A1:2015; EN 55035:2017; EN 50130-4:2011+A1:2015 |
| Interface | |

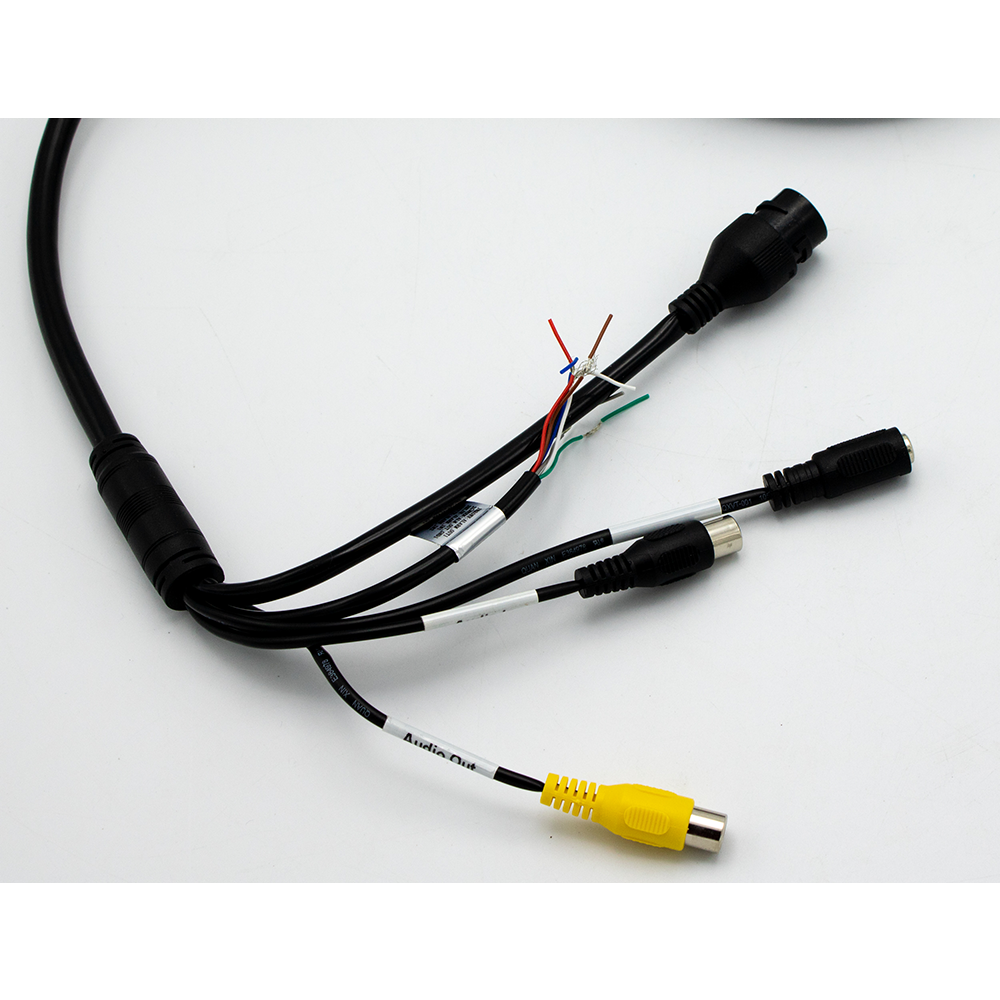

| Audio | Input: One (1) Channel, RCA plus a Built-in Mic Output: One (1) Channel, RCA |
| Alarm | Input: Two (2) Channels (Wet Contact, 3 V to 5 V) Output: Two (2) Channels (Dry Contact, 30 V) |
| Electrical | |
| Power Supply | 12 VDC or PoE (802.3af, Class 0) |
| Power Consumption | 12 VDC Standard: 6.2 W |
| 12 VDC with IR ON: 9.2 W | |
| PoE Standard: 9.2 W | |
| PoE with IR ON: 12.9 W | |
| Environmental | |
| Operating Conditions | -30 °C to +45 °C (-22 °F to +113 °F), Less than 95% RH |
| Storage Conditions | -30 °C to +70 °C (-22 °F to +158 °F), Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal and Plastic |
| Dimensions | ø149.80 mm x 59.80 mm (ø5.90 in. x 2.35 in.) |
| Net Weight | 0.77 kg (1.70 lb) |
| Gross Weight | 1.16 kg (2.56 lb) |
| Analytics+ Function | |
| People Counting | • Delivers accurate flow statistics from the following methods: |
| Region: counts the number of people in a defined area, up to four (4) areas simultaneously. Queue Management: tracks the number of people in line and the amount of wait time. | |
| Intelligent Video System Functions | |
| Standard Features | • Tampering with the camera. • Error writing to an onboard Micro SD card. • Error sending or receiving data over the network. • Unauthorized access to the camera. • IP Address Conflict |
| Premium Features | Tripwire: A target crosses a user-defined line. Intrusion: A target enters or exits a defined perimeter. |
| Advanced Feature | Heat Map: Generates a visual representation of data. |
| Ordering Information | |
| Type | Part Number / Description |
| 12 MP Fisheye | DH-IPC-EBW81242N - 12 MP Panoramic Network IR Fisheye Camera |
| Accessories, optional | PFA100 - Mount Adapter |
| PFA105 - Mount Adapter | |
| PFA110 - Mount Adapter | |
| DH-PFA132-E - Junction Box | |
| PFA150 - Pole Mount (use with PFB300C or DH-PFA132-E) | |
| PFA151 - Corner Mount (use with DH-PFA132-E) | |
| PFB300C - Ceiling Mount (use with PFA100) | |
| PFB302S - Wall Mount (use with PFA100) | |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Specification
0mb
File
Quick Guide
0.9mb
Dahua fisheye cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor, combined with a fisheye lens, provides a high-quality, blind-spot-free 360° panoramic view, making the camera ideal for wide, open areas such as airports, shopping malls and banks. The camera offers Analytics+ functions at the edge, performing complex real-time perimeter, people counting, and queue management. An IP67 environmental protection rating and IK10 vandal resistance ensure the camera can operate in harsh environments.
