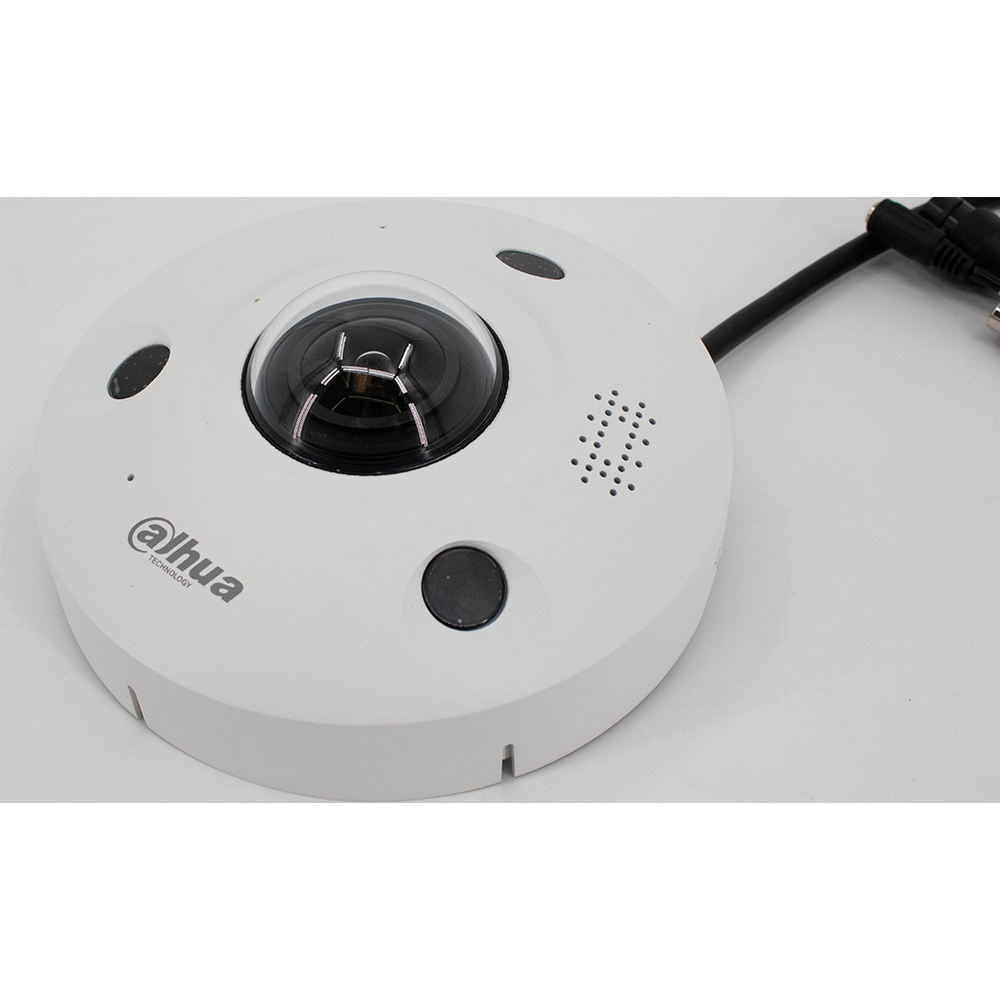

Dahua Fisheye Cameras provide detailed panoramic views in a compact, low-profile design. The progressive-scan sensor combined with a fisheye lens provide a high-quality 360° panoramic view without blind spots, making the camera the ideal solution for wide and open areas, such as airports, shopping malls and banks. The camera offers Analytics+ functions at the edge – performing complex real-time perimeter people counting and queue management. The IP67 environmental protection rating and the IK10 vandal resistance ensure the camera operates in the harshest environments.
WizMind Series devices offer Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products are ideal for complex applications with demanding requirements that need advanced analytic capabilities.
Features:
- 1/1.7-in. 12 MP Progressive-scan CMOS Sensor
- 12 MP (4000 x 3000) at 25 fps Maximum Resolution
- Triple Stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- Built-in Microphone and Speaker
- Multiple Dewarp Modes
- Analytics+ Functions — Perimeter Protection, People Counting, and Queue Management
- Maximum IR Distance 10 m (32.81 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- 5-year Warranty (for products sold through an authorized Dahua dealer)
| Camera | |
| Image Sensor | 1/1.7-in. 12 MP CMOS |
| Total Sensor Pixels | 4000(H) x 3000(V) |
| RAM/ROM | 4 GB / 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.01 lux at F2.0 (1/3 s, 30 IRE) B/W: 0.001 lux at F2.0 (1/30 s, 30 IRE) 0 lux at F2.0 with IR on |
| S/N Ratio | > 56 dB |
| IR Distance | Up to 10 m (32.81 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 1.85 mm |
| Maximum Aperture | F2.0 |
| Angle of View | Horizontal: 185° Vertical: 180° |
| Iris Control | Fixed |
| Close Focus Distance | 0.40 m (1.31 ft) |
Network
| Ethernet | RJ-45 (10/100/1000 Base-T) |
| Protocol | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, UPnP, NTP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P (Only supported by general version) |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (total bandwidth: ) |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP Micro SD Card, maximum 256 GB |
| Web Viewer | IE version 10 or higher Firefox version 48.0.2 or higher Chrome version 48.0.2564.116 or higher |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, MJPEG (sub stream only) | |
| Streaming Capability | Three (3) Streams | |
| Resolution | 4000 x 3000; 3280 x 2480; 2880 x 2160; 3 MP (2048 x 1536); 1.3 MP (1280 x 960); D1 (704 x 480); CIF (352 x 240) | |
| Effective Maximum Resolution, based on Dewarping Mode | ||
| Dewarping Mode | Mount Location | Resolution (H x V) |
| 1 Original | Ceiling / Wall | 4000 x 3000 |
| 1 Panoramic | Ceiling | 4096 x 1024 |
| Wall | 2432 x 1216 | |
| 2 Panoramic | Ceiling | 2432 x 2432 |
| 1 Region | Ceiling / Wall | 1216 x 1216 |
| 2 Regions | Ceiling / Wall | 2432 x 2432 |
| 4 Regions | Ceiling / Wall | 2432 x 2432 |
| 1 Original + 3 Regions | Ceiling / Wall | 2432 x 2432 |
