Dahua - DH-IPC-HDBW4231FN-E2-M - 2x2MP IR Dual-sensor Dome Network Camera
Part number:
DH-IPC-HDBW4231FN-E2-M
Price:

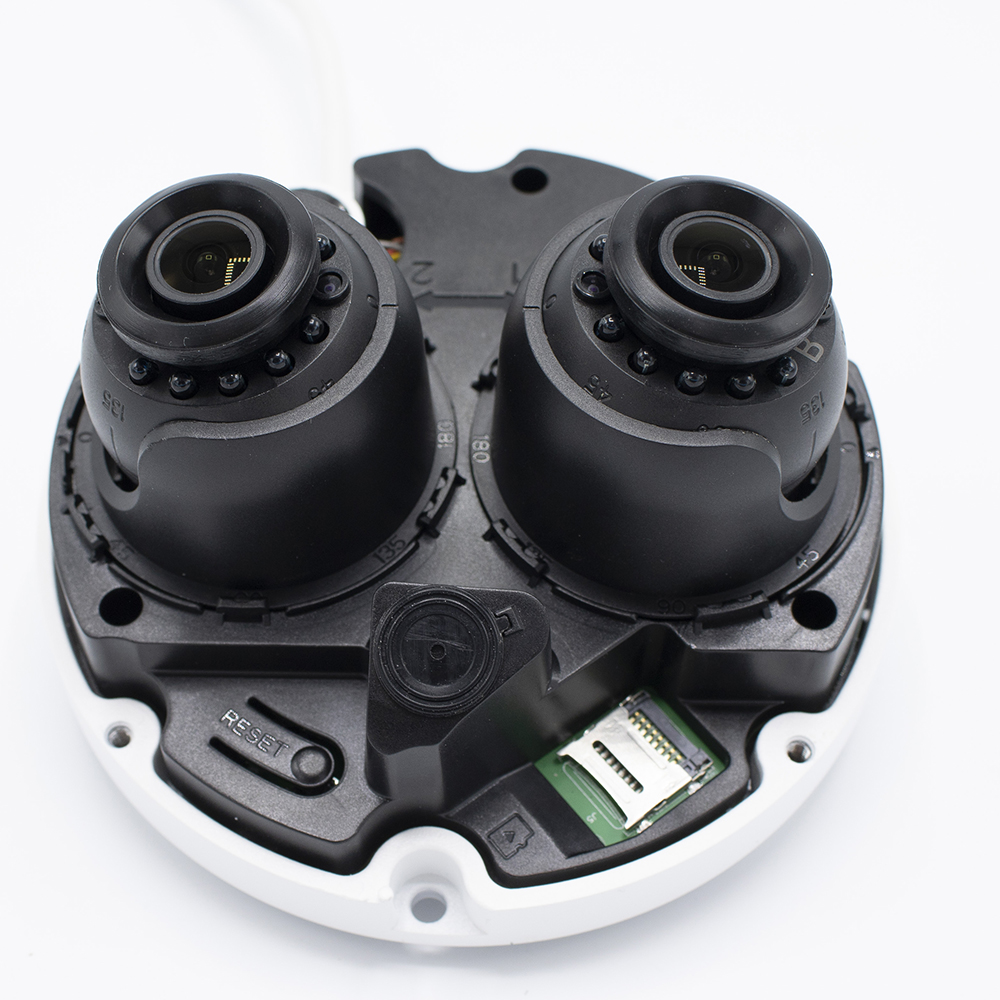

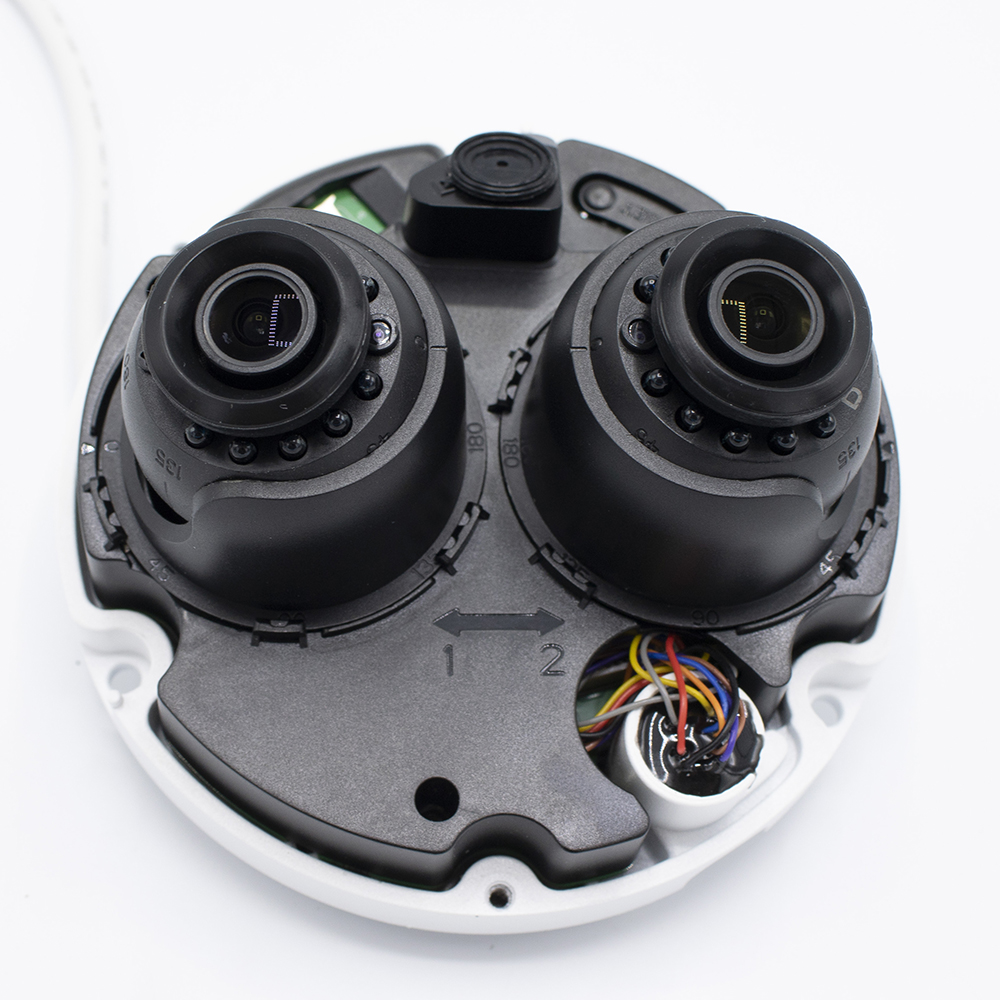

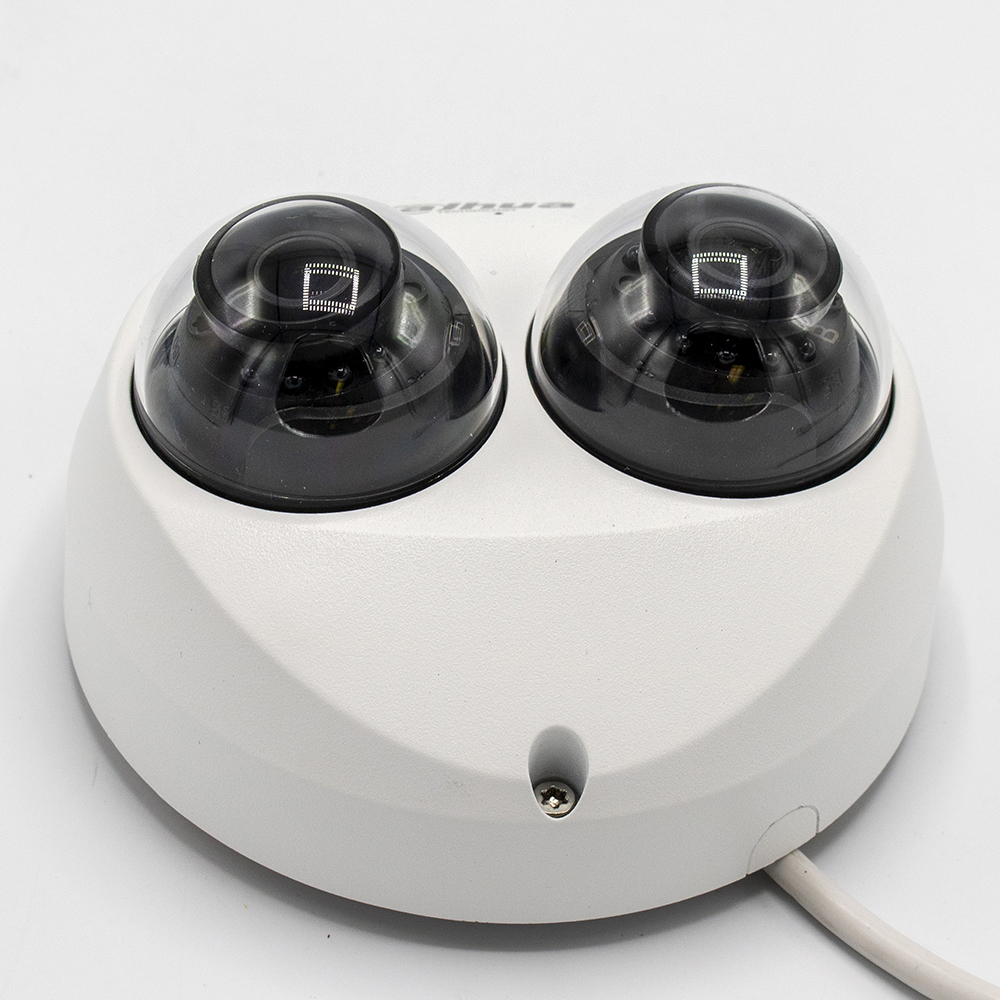

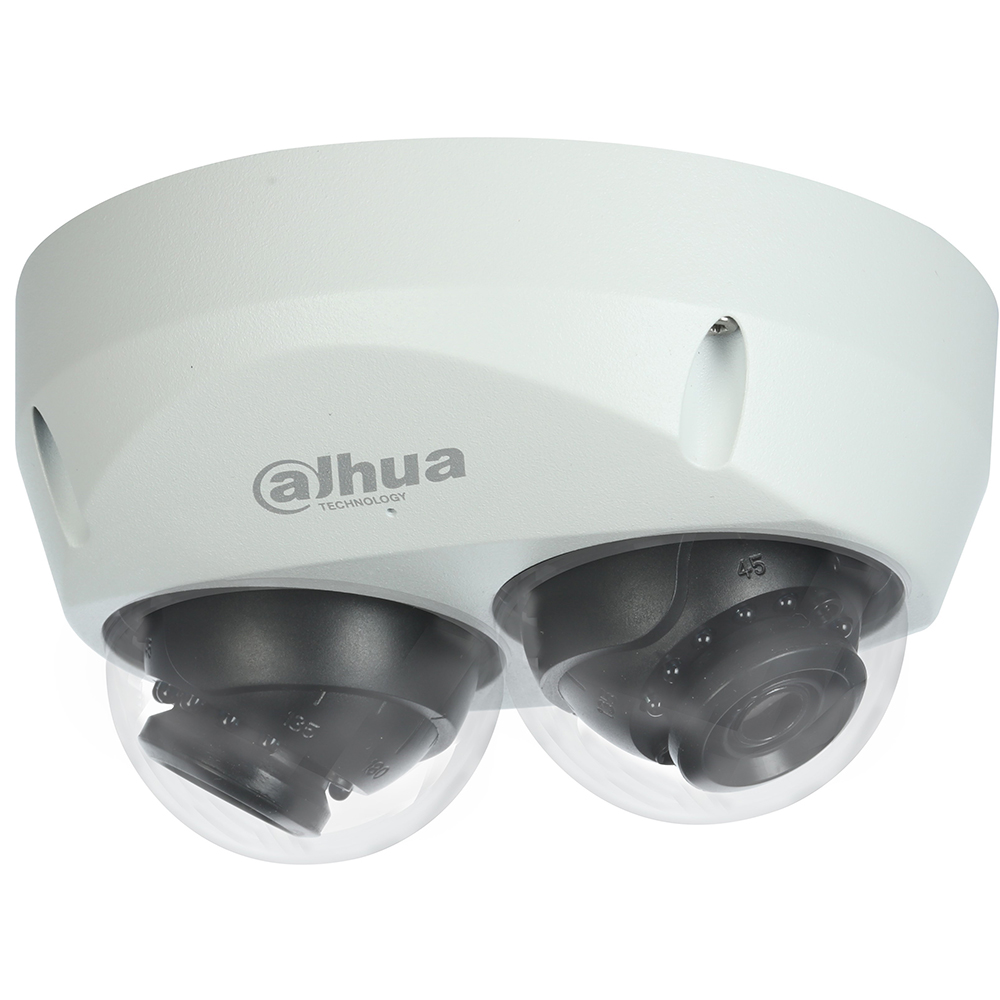

The Dahua DH-IPC-HDBW4231FN-E2-M Dual-sensor Dome Camera features two (2) 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Sensors each with a 2.8 mm fixed lens. Each sensor can be positioned and configured independently of the other allowing flexible, multi-directional video surveillance that is ideal for monitoring an entire corridor or a street.  The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.



Features:



  • Two (2) Independent 1/2.8-in. 2 MP Progressive Scan STARVIS™ CMOS Sensors
  • Dual-stream Encoding per each Channel
  • H.265 and H.264 Dual Codecs
  • 2 MP at 30 fps Maximum Resolution per Sensor
  • Two (2) 2.8 mm Fixed Lenses
  • Basic Starlight Technology for Low Light Sensitivity
  • True Wide Dynamic Range (Channel 1) and True Day/Night (ICR)
  • Built-in Microphone
  • Intelligent Video System
  • Maximum IR LED Distance 20 m (66 ft)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE Support
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)

Camera

Image Sensor Two (2) 1/2.8-in. 2 MP STARVIS™ CMOS
Effective Pixels 1920(H) x 1080(V)
RAM/ROM 512 MB / 256 MB
Scanning System Progressive
Electronic Shutter Speed Auto, Manual; 1/3 s to 1/100,000 s
Minimum Illumination Color: 0.009 lux at F2.0 (1/3 s, 30 IRE)
Color: 0.07 lux at F2.0 (1/30 s, 30 IRE)
0 lux at F2.0 with IR on
S/N Ratio More than 50 dB
IR Distance Distance up to 20.0 m (65.62 ft)
IR On/Off Control Auto, Manual
IR LEDs 10 per each Sensor

Lens

Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm
Max. Aperture F2.0
Angle of View Horizontal: 110°
Vertical: 60°
Focus Control Fixed
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
File
Quick Start Guide
0.8mb
File
Specification
0.3mb
