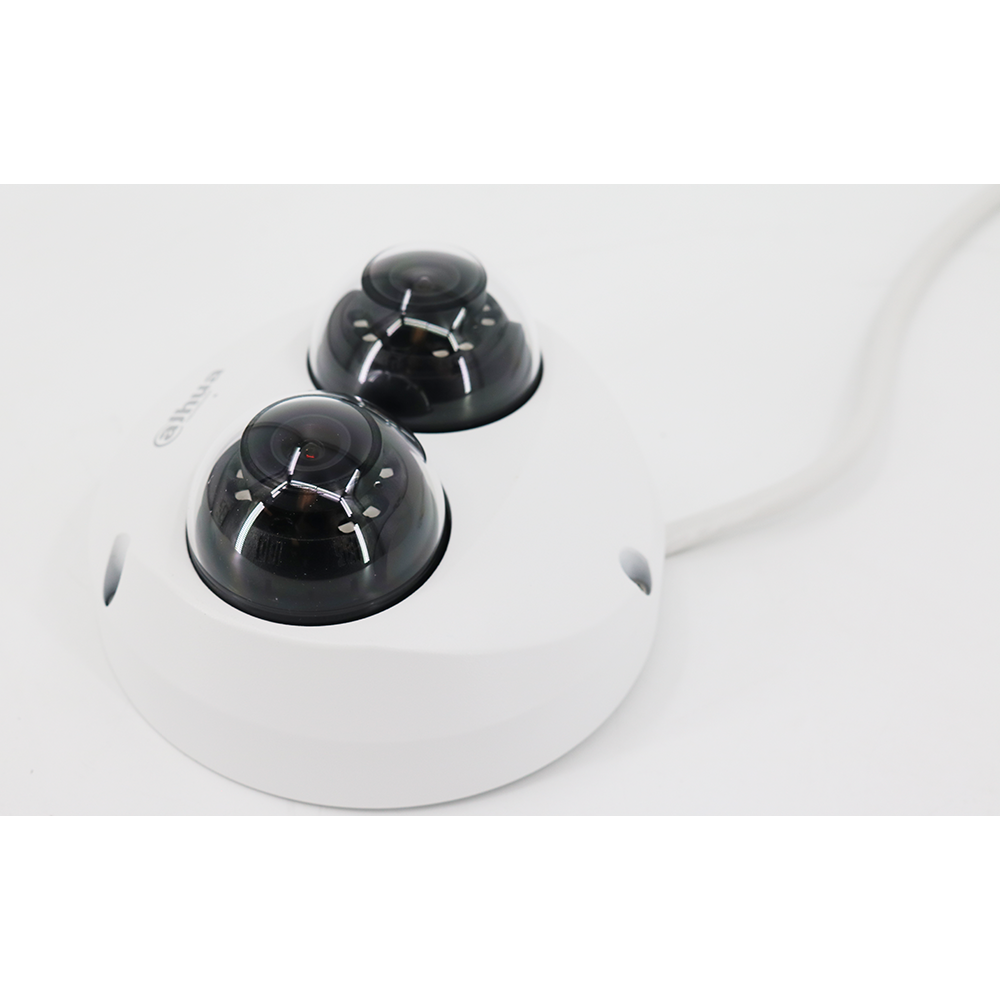

The Dahua 2 x 4 MP Dual-sensor Dome Camera offers advanced analtyics and starlight functionality for complete surveillance solution. Each sensor can be positioned and configured independently of the other allowing flexible, multi-directional video surveillance that is ideal for monitoring an entire corridor, a stairwell, or a street. In addition, Analytic+ functions can be applied to each channel and enabled simultaneously. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.
WizMind Series devices offer Dahua Analytics+ functions for comprehensive, human-oriented analytic solutions. WizMind Series products are ideal for complex applications with demanding requirements that need advanced analytic capabilities.
Features :
- Two (2) Independent 1/2.7-in. 4 MP CMOS Sensors
- Triple-stream Encoding per each Channel
- AI Coding, Smart H.265+, and Smart H.264+ Video Compression
- Two (2) 2.8 mm Fixed Lenses
- Analytics+ Functions — Perimeter Protection, Smart Motion Detection+, People Counting, and Face Detection
- Option to Display Dual Video in the First Channel
- Enhanced Starlight Technology for Low Light Sensitivity
- ArcticPro Series Camera — Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Built-in Microphone
- Maximum IR LED Distance 30 m (98.43 ft)
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Camera | |
| Image Sensor | Two (2) 1/2.7-in. 4 MP CMOS |
| Effective Pixels | 2560(H) x 1440(V) |
| RAM/ROM | 1 GB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual; 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.6 (30 IRE) Color: 0.0005 lux at F1.6 (30 IRE) 0 lux at F1.6 with IR on |
| S/N Ratio | More than 56 dB |
| IR Distance | Distance up to 30.0 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Eight (8) LEDs per sensor (16 total) |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Angle of View | Horizontal: 95° Vertical: 52° Diagonal: 114° |
| Iris Control | Fixed |
| Close Focus Distance | 1.10 m (3.61 ft) |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Interoperability | ONVIF Profile S, G, T, CGI, P2P, Milestone, API, SDK |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total Bandwidth: 64 Mbps) |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro Card Slot, 256 GB maximum |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Range | Pan: 0˚ to 175˚ Tilt: 0˚ to 65˚ Rotation: 0˚to 360˚ |
| Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (Sub Stream) | |
| Streaming Capability | Three (3) Streams per Sensor | |
| Resolution | 4 MP (2688 x 1520), 3 MP (2048 x 1536), 2304 x 1296, 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) | |
| Frame Rate | Main Stream | Channel 1: 2560 x 1440 at 30 fps Channel 2: 2560 x 1440 at 30 fps |
| Sub Stream | Channel 1: 704 x 480 at 30 fps Channel 2: 704 x 480 at 30 fps | |
| Sub Stream 2 | Channel 1: 1920 x 1080 at 30 fps Channel 2: 1920 x 1080 at 30 fps | |
